NE1 eyepiece reticles, surface pattern

Horizontal & Vertical Scales - NE1, NE2, NE5, NE20, NE28, NE31, NE41, NE120These scales are used for the measuring of lengths of specimen or distances between points on a variety of different shaped objects. NE1 scale shown: This eyepiece graticule has an overall length of 10.00 mm with 100 subdivisions of 0.1 mm. When used with a x10 objective, each division will represent 10 microns on the specimen. By dividing the division of the chosen graticule by the magnification of the objective, one obtains an approximate value that each division will represent on the stage.

Horizontal & Vertical Scales - NE1, NE2, NE5, NE20, NE28, NE31, NE41, NE120

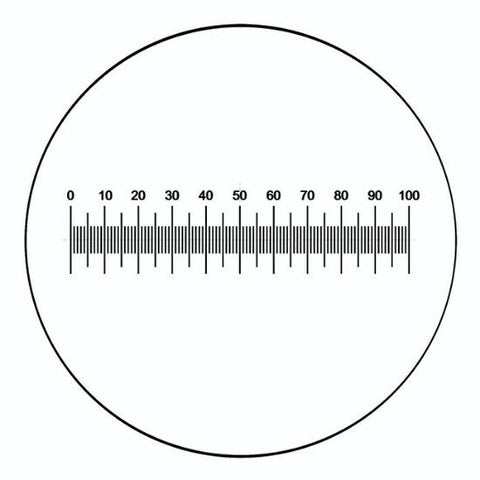

These scales are used for the measuring of lengths of specimen or distances between points on a variety of different shaped objects. NE1 scale shown: This eyepiece graticule has an overall length of 10.00 mm with 100 subdivisions of 0.1 mm. When used with a x10 objective, each division will represent 10 microns on the specimen. By dividing the division of the chosen graticule by the magnification of the objective, one obtains an approximate value that each division will represent on the stage.

Pattern Description Diameter Code
NE1 Horizontal micrometer scale 10 mm long with 0.1mm subdivisions.
Surface chrome image.
16mm EMS68010-16
19mm EMS68010-19
20.4mm EMS68010-20.4
21mm EMS68010-21
23mm EMS68010-23
24.5mm EMS68010-24.5
25mm EMS68010-25
26mm EMS68010-26
27mm EMS68010-27
NE2 Vertical micrometer scale 10mm long with 0.1mm subdivisions.
Surface chrome image.
16mm EMS68006-16
19mm EMS68006-19
21mm EMS68006-21
NE5 Horizontal micrometer scale 5mm long with 0.05mm subdivisions.
Surface chrome image.
16mm EMS67988-16
19mm EMS67988-19
21mm EMS67988-21
NE20 Horizontal scale 0.10 inch long with 100 subdivisions.
Surface scale image.
16mm EMS67987-16
19mm EMS67987-19
21mm EMS67987-21
NE28 Horizontal micrometer scale.
1mm long with 100 subdivisions.
Surface chrome image.
16mm EMS67992-16
19mm EMS67992-19
21mm EMS67992-21
NE31 Horizontal scale 0.5" long with 100 divisions of 0.0005" 16mm EMS67977-16
19mm EMS67977-19
21mm EMS67977-21
Custom EMS67977-50
NE41 Horizontal micrometer scale 10 mm long with 200 subdivisions.
Surface chrome image.
16mm EMS67993-16
19mm EMS67993-19
21mm EMS67993-21
NE120 Horizontal Micrometer 20mm long with 100 divisions of 0.10mm. 21mm EMS67976-21
Custom EMS67976-50

Technical Data

Updated: 27-12-2024
Code Title Size Pack Size Availability Price Updated: 27-12-2024
EMS68010-16 NE1 eyepiece reticles, surface pattern 16mm Each 0 in stock (?) $184.00 AUD
EMS68010-19 NE1 eyepiece reticles, surface pattern 19mm Each 0 in stock (?) $184.00 AUD
EMS68010-20.4 NE1 eyepiece reticles, surface pattern 20.4mm Each 0 in stock (?) $184.00 AUD
EMS68010-21 NE1 eyepiece reticles, surface pattern 21mm Each 0 in stock (?) $184.00 AUD
EMS68010-23 NE1 eyepiece reticles, surface pattern 23mm Each 0 in stock (?) $184.00 AUD
EMS68010-24.5 NE1 eyepiece reticles, surface pattern 24.5mm Each 0 in stock (?) $227.00 AUD
EMS68010-25 NE1 eyepiece reticles, surface pattern 25mm Each 0 in stock (?) $227.00 AUD
EMS68010-26 NE1 eyepiece reticles, surface pattern 26mm Each 0 in stock (?) $227.00 AUD
EMS68010-27 NE1 eyepiece reticles, surface pattern 27mm Each 0 in stock (?) $227.00 AUD
