Morphology stage micrometers, Model IAM-1

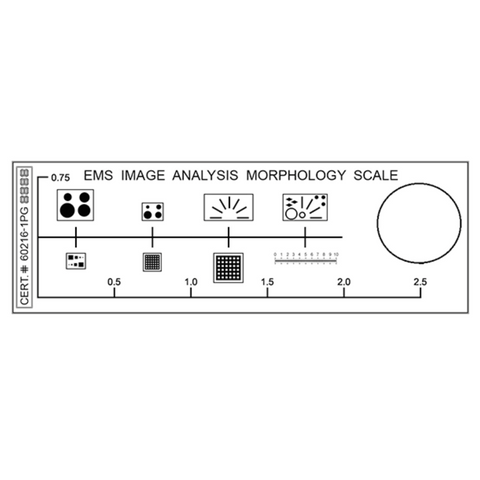

Morphometric Image Analysis StandardsIdeally for morphological calibration where two dimensional shapes have to be measured precisely. Standard includes a set of eight test plates of various shapes, positions, angles and sizes. It also includes a linear measurement scale for calibrating your imaging system. Overall size: 25mm x 75mm. Positive image/Chrome on glass (PG).Image Analysis Microscopy Calibration Standards, specially designed to address the current needs of the new generation of image analysis and machine vision systems. These unique standards are designed to test multiple morphometric parameters to assure that image analysis system is working properly.Available are Chrome-on-Glass (G) and Chrome-on-Opal glass (O) or Chrome on Quartz (Q). The Opal and Quartz are offered by request only as a custom.P: positive image (mostly clear or white); N: negative image (mostly opaque or black).

Morphometric Image Analysis Standards

Ideally for morphological calibration where two dimensional shapes have to be measured precisely. Standard includes a set of eight test plates of various shapes, positions, angles and sizes. It also includes a linear measurement scale for calibrating your imaging system. Overall size: 25mm x 75mm. Positive image/Chrome on glass (PG).

Image Analysis Microscopy Calibration Standards, specially designed to address the current needs of the new generation of image analysis and machine vision systems. These unique standards are designed to test multiple morphometric parameters to assure that image analysis system is working properly.

Available are Chrome-on-Glass (G) and Chrome-on-Opal glass (O) or Chrome on Quartz (Q). The Opal and Quartz are offered by request only as a custom.

P: positive image (mostly clear or white); N: negative image (mostly opaque or black).

Technical Data

Specifications

Plate	Frame Size	Description
1	4,600 x 3,500µm	Circles - 2,000, 1,000, 500 & 250µm diameters
2	1,000 x 800µm	Circles - 500, 250, 125 & 62.5µm diameters
3	1,000 x 800µm	Bars - 200 x 20µm at 30° increments
4	1,000 x 800µm	Various Shapes, Circles, Bars & Angular designs
5	1,000 x 800µm	Squares - 100, 40, 20µm set of 2 each.
6	2,050 x 1,650µm	Grid Patterns - 50µm lines at 100µm pitch
7	4,200 x 3,400µm	Grid Patterns - 200µm lines at 200µm pitch
8	10 mm long	Scale with 10µm divisions

EMS60216-1PG: IAM-1, full set

EMS60216-1PGC: IAM-1, Calibrated only plates 1, 2 & 8
