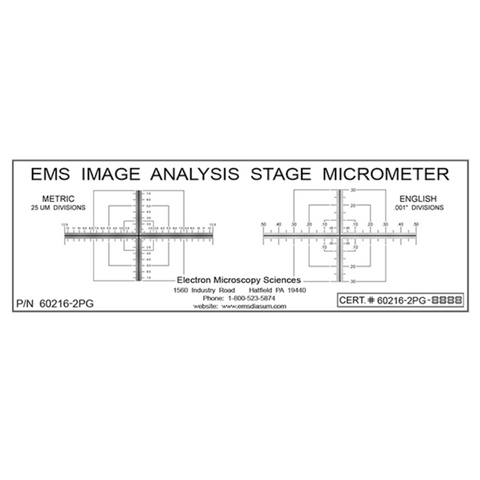

EMS stage micrometers, IAM-2
Linear (X & Y axis) Scale
A dual axis linear micrometer that can accurately calibrate both X & Y directions without rotation, for optical magnification, and camera aspect ratio using single standard. In addition, it can be used to calibrate and check linear stage motion or related auto measuring systems. Scales are in both Imperial and Metric measurements.
Available: Chrome on glass (G) as standard, chrome on opal glass (O) or chrome on quartz (Q) by request only as a custom.
P: positive image (mostly clear or white); N: negative image (mostly opaque or black).
Store at room temperature
Specifications:
| Overall Size | 25mm x 75mm |
| Scale Image | 1" (right scale); 25mm (left scale) Y = 0.60" (right scale); 15mm (left scale) |
| Divisions | Imperial = 0.001", Metric = 25µm (0.025mm) |
| Image | Positive image/Chrome on glass (PG) |
Manufactured in the USA
| Code | Type | Pack Size | Availability | Price | Updated: 04-06-2026 |
|---|---|---|---|---|---|
| EMS60216-2PG | IAM-2 | Each | No ETA | $721.00 AUD | |
| EMS60216-2PGC | IAM-2, calibrated only | Each | No ETA | P.O.R. | Quote |
* Availability Explanation
X weeks – the estimated lead time, based on the average time taken previously to fill orders from this particular supplier. Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
In Stock – Plenty of stock on the shelf, ready to ship.
No ETA – our supplier has advised they cannot provide an accurate ETA. Generally there is some issue with supply, and it may be more than 6 months.
