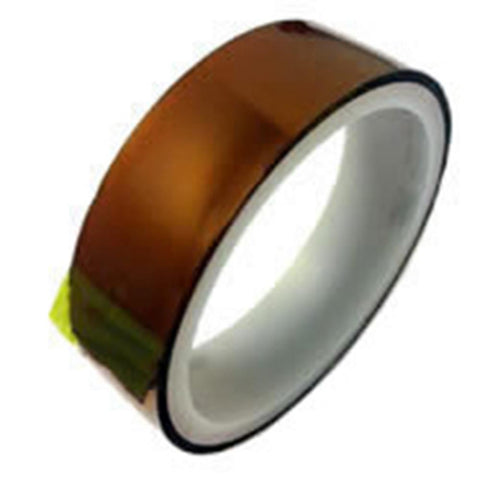

Kapton polymide tape, thin, low-static no liner

This general purpose film easily bonds to difficult surfaces with silicone adhesive, and leaves little to no residue when removed. Microscopists find it ideal for holding samples or masking during deposition in vacuum systems (it is relatively low outgassing). It is also perfect for positioning samples in cryo or high temperature working conditions. There are no known organic solvents for the film.  Kapton® Polyimide Tape is known for its superior ability to maintain its physical properties under harsh conditions. Specifications

This general purpose film easily bonds to difficult surfaces with silicone adhesive, and leaves little to no residue when removed. Microscopists find it ideal for holding samples or masking during deposition in vacuum systems (it is relatively low outgassing). It is also perfect for positioning samples in cryo or high temperature working conditions. There are no known organic solvents for the film.  Kapton® Polyimide Tape is known for its superior ability to maintain its physical properties under harsh conditions.

Specifications

Temperature Range -269 to 400°C (-452 to 752°F)
Adhesive Silicone
Flammability Ratio V-0
Roll Length 32.9 m (36 yds)
Color Amber
Kapton® Film Thickness 1 mil
Ultimate Tensile Strength (Mpa) 231 (73°F); 134 (392°F)
Ultimate Elongation (%) 72 (73°F); 83 (392°F)
Density, g/cc 1.42
Tensile Modulus (GPa) 2.5 (73°F); 2.0 (392°F)
Melting Point none
Plastic Core Diameter 77mm (3")

Kapton® is a trademark of DuPont

Code Title Width Pack size Availability Price Updated: 16-10-2021
EMS77708-14 Kapton polymide tape, thin, low-static no liner 6.35mm (0.25in) Roll/32.9m 2 weeks $64.00 AUD
EMS77708-15 Kapton polymide tape, thin, low-static no liner 12.7mm (0.5in) Roll/32.9m 2 weeks $96.00 AUD
EMS77708-16 Kapton polymide tape, thin, low-static no liner 19.05mm (0.75in) Roll/32.9m 2 weeks $123.00 AUD
EMS77708-17 Kapton polymide tape, thin, low-static no liner 25.4mm (1in) Roll/32.9m 2 weeks $148.00 AUD
EMS77708-18 Kapton polymide tape, thin, low-static no liner 50.8mm (2in) Roll/32.9m 2 weeks $236.00 AUD
Code Title Width Pack size Availability Price
EMS77708-14 Kapton polymide tape, thin, low-static no liner 6.35mm (0.25in) Roll/32.9m 2 weeks $64.00 AUD
EMS77708-15 Kapton polymide tape, thin, low-static no liner 12.7mm (0.5in) Roll/32.9m 2 weeks $96.00 AUD
EMS77708-16 Kapton polymide tape, thin, low-static no liner 19.05mm (0.75in) Roll/32.9m 2 weeks $123.00 AUD
EMS77708-17 Kapton polymide tape, thin, low-static no liner 25.4mm (1in) Roll/32.9m 2 weeks $148.00 AUD
EMS77708-18 Kapton polymide tape, thin, low-static no liner 50.8mm (2in) Roll/32.9m 2 weeks $236.00 AUD
