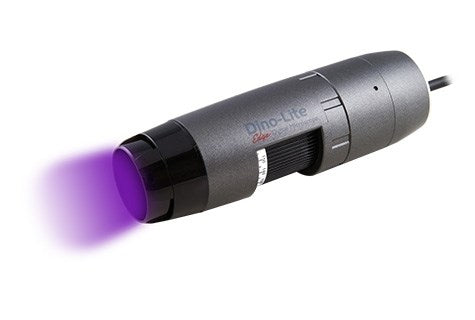

Dino-Lite Edge UV + white light digital microscope

The AM4115TL-FVW extends Dino-Lite's applications in long working distance to higher magnification range, featuring 395nm UV and white lights switchable by software with better image quality.Longer working distance is perfect for instances where a certain distance is needed between object and microscope to either work under or view. The ability to switch from white light to fluorescent UV allows flexibility.This Dino-Lite Edge features both white and 400nm UV fluorescent ultra-violet LED, switchable through the included software, and enhanced working distance.This model offers the advantage of viewing and identifying desired magnified objects under normal LED white light and then switching to fluorescent ultra violet lighting. The newly enhanced UV filtering system offers better fluorescence contrast for use in forensics, biomedical or machine vision applications.It's ideal for engineering, medical, and scientific research, along with industrial qualit...

The AM4115TL-FVW extends Dino-Lite's applications in long working distance to higher magnification range, featuring 395nm UV and white lights switchable by software with better image quality.

Longer working distance is perfect for instances where a certain distance is needed between object and microscope to either work under or view. The ability to switch from white light to fluorescent UV allows flexibility.

This Dino-Lite Edge features both white and 400nm UV fluorescent ultra-violet LED, switchable through the included software, and enhanced working distance.

This model offers the advantage of viewing and identifying desired magnified objects under normal LED white light and then switching to fluorescent ultra violet lighting. The newly enhanced UV filtering system offers better fluorescence contrast for use in forensics, biomedical or machine vision applications.

It's ideal for engineering, medical, and scientific research, along with industrial quality control (parts inspection, failure analysis), dermatology (skin/scalp) exam, and law enforcement (counterfeit ID, crime lab, CSI, etc).

Specifications:

Model AM4115TL-FVW Dino-Lite Edge
Interface USB 2.0
Product Resolution 1.3M pixels (SXGA)
Magnification Rate 10x~140x
Sensor Color CMOS
Frame Rate Up to 30fps
Save Formats Image:
DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEG

Movie:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Microtouch Touch sensitive trigger on the microscope for taking pictures
Lighting 4white and 4 UV(395nm) LED lights switched by software
Measurement Function Yes
Calibration Function Yes
Operating System Supported Windows XP/7/8/10/11
macOS 10.14 or later
Unit Weight 100g
Unit Dimension 10.5cm (H) x 3.2cm (D)
Package Dimensions 16cm (L) x 16cm (W) x 6cm (H)

Information about working distance and field of view:

M WD FOV (x) FOV (y) DOF
10 234.5 39.0 31.2 12
20 112.5 19.5 15.6 4.5
30 72.5 13.0 10.4 3.1
40 54.5 9.8 7.8 1.8
50 43.5 7.8 6.2 1.2
60 37.5 6.5 5.2 0.9
70 33.7 5.6 4.5 0.6
80 31.3 4.9 3.9 0.5
90 29.9 4.3 3.5 0.37
100 29.2 3.9 3.1 0.28
110 29.1 3.5 2.8 0.22
120 29.3 3.3 2.6 0.17
130 29.8 3.0 2.4 0.12
140 30.5 2.8 2.2 0.09

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm

Updated: 27-12-2024
Code Title Magnification Resolution Pack Size Availability Price Updated: 27-12-2024
OSAM4115TL-FVW Dino-Lite Edge UV + white light digital microscope 10x~140x 1.3 MP Each 0 in stock (?) $1,185.00 AUD
