Cryo dewars, lab grade, mesh cover with wide mouth

These lab grade dewars are by far the most energy efficient glass dewars on the market! The exceptional ranking is attributed to strict quality control during manufacturing, as well as exceptional engineering and construction features.Weighted bases on all models for stabilitySupplied stopper tops off Dewars to minimise evaporationEvacuation tip completely shielded for increased protectionOptional full length metal housing on most models for added protectionNo pads between walls on cylindrical Dewars eliminating this heat transfer potentialEfficiency assured by rigid bakeout and evacuation control (evacuated to 10-5 torr or better)

These lab grade dewars are by far the most energy efficient glass dewars on the market! The exceptional ranking is attributed to strict quality control during manufacturing, as well as exceptional engineering and construction features.

  • Weighted bases on all models for stability
  • Supplied stopper tops off Dewars to minimise evaporation
  • Evacuation tip completely shielded for increased protection
  • Optional full length metal housing on most models for added protection
  • No pads between walls on cylindrical Dewars eliminating this heat transfer potential
  • Efficiency assured by rigid bakeout and evacuation control (evacuated to 10-5 torr or better)
Image Code I.D. O.D. Height
A EMS61888-01 70mm 86mm 157mm
C EMS61888-03 120mm 150mm 252mm
E EMS61888-05 70mm 86mm 337mm
G EMS61888-07 143mm 178mm 365mm
I EMS61888-09 70mm 86mm 241mm

On both models, the protective aluminium bases reach the entire height of the Dewars.

It is important to remember that the shielded vacuum tip-off tubulations are offset to the side to reduce the amount of space between the Dewar bottoms and magnetic stirrers.

All Wide Mouth variants are available with an exterior metal covering that nearly reaches the top rim of the Dewar (a slight extension of the glass Dewar facilitates pouring). This enclosure offers the security of metal with the efficiency of glass, which is especially useful in handling procedures.

Lab Grade Dewars with narrow mouths are appropriate for short-term storage or room-to-room transportation. Low evaporation cork stopper, fully insulated evacuation tip, weighted bases, and partial aluminium base are all regular characteristics.

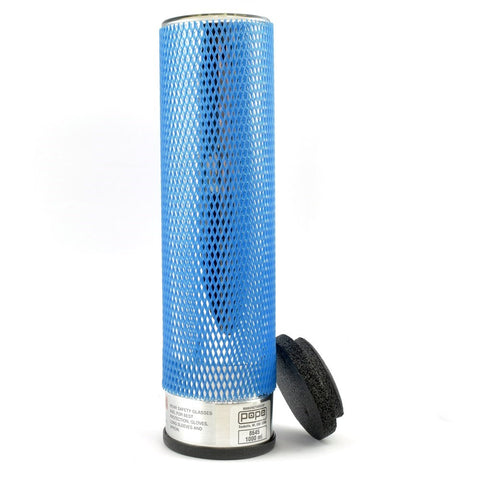

For liquid nitrogen service, all lab grade dewars are made of borosilicate glass. A strong mesh cover improves grip, provides cushioning against bumps, and increases protection.

Updated: 02-11-2024
Code Title Volume Pack Size Availability Price Updated: 02-11-2024
YS61888-01 Cryo dewars, lab grade, mesh cover with wide mouth 350ml Std base Each 0 in stock (?) $368.00 AUD
YS61888-09 Cryo dewars, lab grade, mesh cover with wide mouth 665ml, Std base Each 0 in stock (?) $423.00 AUD
YS61888-05 Cryo dewars, lab grade, mesh cover with wide mouth 1000ml, Std base Each 2 in stock $400.00 AUD
YS61888-03 Cryo dewars, lab grade, mesh cover with wide mouth 1900ml, Std base Each 0 in stock (?) $945.00 AUD
YS61888-07 Cryo dewars, lab grade, mesh cover with wide mouth 4300ml, Std base Each 0 in stock (?) $1,075.00 AUD
