Tungsten wire baskets

Tungsten has the highest melting point and lowest vapor pressure of all metals, and at the temperatures over 1650°C has the highest tensile strength. It has excellent corrosion resistance and is attacked only slightly by most mineral acids.Tungsten is the most useful material used in vacuum evaporation technique, due to its special properties and cost factor.Properties of Tungsten:

Tungsten has the highest melting point and lowest vapor pressure of all metals, and at the temperatures over 1650°C has the highest tensile strength. It has excellent corrosion resistance and is attacked only slightly by most mineral acids.

Tungsten is the most useful material used in vacuum evaporation technique, due to its special properties and cost factor.

Properties of Tungsten:

Chemical symbol W
Atomic Radius 2.02Å
Atomic Volume, cm3/mol 9.53
Covalent Radius 1.3Å
Crystal Structure Body centered cube
Number of Electron
(with no charge)		 74
Atomic Number of Protons 74
Number of Neutrons
(most common/stable nuclide)		 110
Ionic Radius 0.62Å
Cross Section 18.5 barns ± 0.5

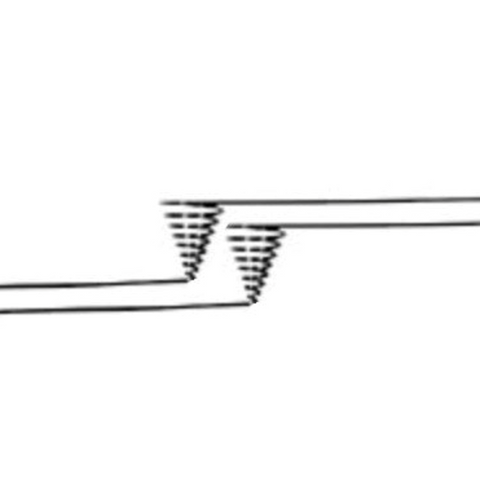

Available: Clean, Vacuum grade, tungsten wire

Basket Turns I.D. Height Wire Lead Wire Diameter
A 9 4mmm 7mm 35mm 0.508mm
C 8 7mm 9mm 50mm 0.508mm
D 8 9mm 14mm 40mm 0.762mm
Updated: 29-10-2025
Code Type Pack Size Availability Price Updated: 29-10-2025
EMS73830 Type A Pack/50 0 in stock (?) $302.00 AUD
EMS73832 Type C Pack/50 0 in stock (?) $411.00 AUD
V018 Type C Pack/2 0 in stock (?) $35.00 AUD
EMS73834 Type D Pack/50 0 in stock (?) $361.00 AUD
