CoverWell slide adhesive single well chambers

CoverWell imaging chambers are designed to stabilise and support thick or free floating specimens for light, epifluorescence, and confocal laser-scanning microscopy. They incorporate a thin, optically clear plastic cover on a silicone chamber gasket.

Features

  • Silicone chamber gaskets form water-tight, removable enclosures when pressed to a microscope slide or coverslip
  • Cover slip material is flexible and enables the chambers to be removed from the thinnest glass coverslips without breaking the glass or damaging the specimen
  • Press-to-seal CoverWell imaging chambers are reusable.
  • Chambers allows resolution of fine internal structures without the compression of regular coverslips

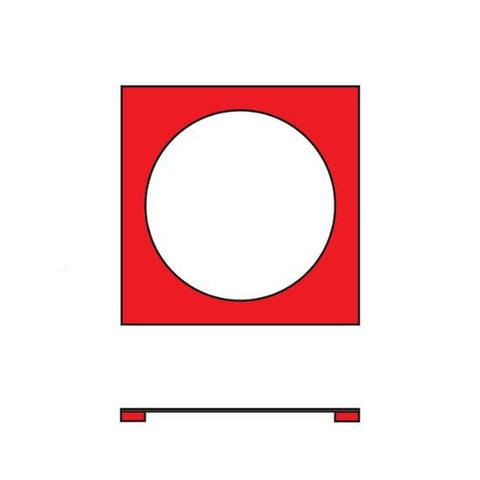

  • Outside dimensions of the adhesive chambers is 25mm x 25mm except for EMS70327-04 which is 45mm x 45mm
Code Title Dimensions Pack Size Availability Price Updated: 09-05-2024
H569 CoverWell slide adhesive single well chambers 28mm dia. x 0.4mm Pack/25 See above $273.00 AUD
H570 CoverWell slide adhesive single well chambers 20mm dia. x 0.6mm Pack/40 See above $277.00 AUD
H571 CoverWell slide adhesive single well chambers 20mm dia. x 0.8mm Pack/40 See above $296.00 AUD
H572 CoverWell slide adhesive single well chambers 20mm dia. x 1mm Pack/40 See above $277.00 AUD
H573 CoverWell slide adhesive single well chambers 20mm dia. x 1.3mm Pack/40 See above $320.00 AUD
H574 CoverWell slide adhesive single well chambers 20mm dia. x 2mm Pack/20 See above $174.00 AUD
H575 CoverWell slide adhesive single well chambers 20mm dia. x 2.3mm Pack/20 See above $193.00 AUD
H576 CoverWell slide adhesive single well chambers 20mm dia. x 2.5mm Pack/20 1 in stock $177.00 AUD
H577 CoverWell slide adhesive single well chambers 20mm dia. x 2.8mm Pack/20 See above $199.00 AUD
