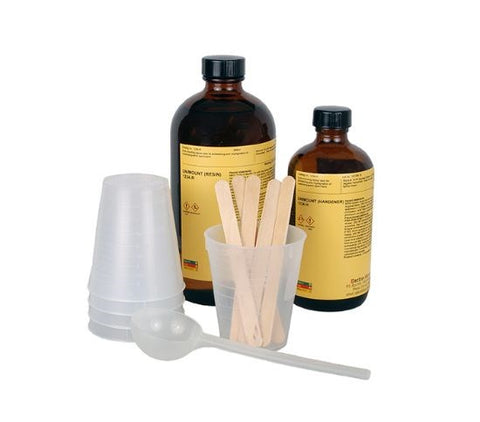

Unimount kit (DG)

Cold mounting or embedding is when a resin is mixed with a hardener (or accelerator) to provide the mounting compound, and then the polymerisation process take place to form the block. In some cases, this process gives-off heat. However this heat generation can be controlled by the use of ice or cool air blow setting. Cold mounting compounds are preferred for specimens that are sensitive to the heat or pressure, which applies during the hot mounting process. There are three types of cold mounting:1. Epoxy Systems - Epoxies have the lowest shrinkage of all cold mounting resins. The curing time is relatively long, but the adhesion to most materials is excellent. They are also used for vacuum impregnation. The hardened epoxy is duroplastic and not affected by moderate heat or chemicals.2. Acrylic System - Acrylics are easy to use resins with short curing times and negligible shrinkage. They consist of self-polymerising components that harden with the addition of cataly...

Cold mounting or embedding is when a resin is mixed with a hardener (or accelerator) to provide the mounting compound, and then the polymerisation process take place to form the block. In some cases, this process gives-off heat. However this heat generation can be controlled by the use of ice or cool air blow setting. Cold mounting compounds are preferred for specimens that are sensitive to the heat or pressure, which applies during the hot mounting process. There are three types of cold mounting:

1. Epoxy Systems - Epoxies have the lowest shrinkage of all cold mounting resins. The curing time is relatively long, but the adhesion to most materials is excellent. They are also used for vacuum impregnation. The hardened epoxy is duroplastic and not affected by moderate heat or chemicals.

2. Acrylic System - Acrylics are easy to use resins with short curing times and negligible shrinkage. They consist of self-polymerising components that harden with the addition of catalyst. Hardened acrylic is thermoplastic and resistant to most chemicals.

3. Polyester Systems - Polyester belongs to the catalysed system, like acrylics. Curing times are relatively short and the hardened specimen is duroplastic.

Resin Colour Curing time Shrinkage From 1-4 (Best: 1) Hardness Application
Unimount Clear, Transparent
Refractive index: ND = 1.573
8 hours 1 84 Shore D Vacuum impregnation
Porous samples
Mineralogical samples


Mixing Ratio Mixing Ratio Volume Mixing time Potlife Can be coloured with Epodye Can be coloured with AcryDye Peak Temp
Resin: 7 parts
Curing Agent: 1 part
Resin: 26 parts
Curing Agent:5 parts
3 min
60 min Yes No 60°C

Resin Safety Data Sheet

Hardener Safety Data Sheet

Updated: 06-12-2024
Code Title Pack Size Availability Price Updated: 06-12-2024
EMS1234 Unimount kit (DG) Each 0 in stock (?) $654.00 AUD
