G57 eyepiece reticles, pharmaceutical PSA pattern

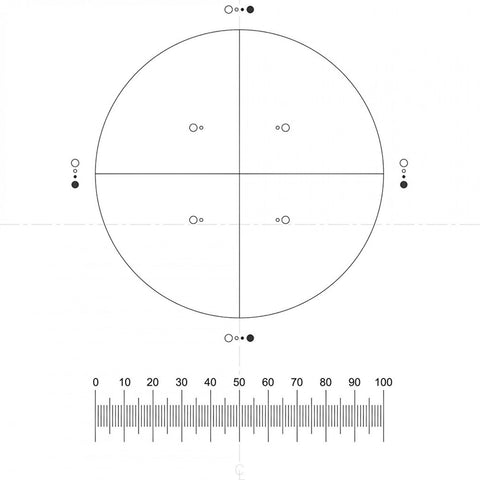

This graticule was designed for the pharmaceutical industry. However, it is also useful where particle size considerations are restricted to 10 mm and 25 mm. Dots and circles give quick references for these two sizes. In addition, a scale is incorporated.The microscope must be calibrated when ordering this graticule, such that the circle must equate to 1 mm on the microscope stage.ReferenceThe United State Pharmaceutical Conventions, Inc. Pharmaceutical Forum. Vol. 19 No 6.

This graticule was designed for the pharmaceutical industry. However, it is also useful where particle size considerations are restricted to 10 mm and 25 mm. Dots and circles give quick references for these two sizes. In addition, a scale is incorporated.

The microscope must be calibrated when ordering this graticule, such that the circle must equate to 1 mm on the microscope stage.

Reference

  • The United State Pharmaceutical Conventions, Inc. Pharmaceutical Forum. Vol. 19 No 6.
Pattern Description Diameter Product
G57 Pharmaceutical PSA Pattern.
Glass Sandwich.		 19mm EMS68091-19
20.4mm EMS68091-20.4
21mm EMS68091-21
23mm EMS68091-23
24.5mm EMS68091-24.5
25mm EMS68091-25
26mm EMS68091-26
27mm EMS68091-27

Technical Data

Updated: 15-01-2025
Code Title Diameter Pack Size Availability Price Updated: 15-01-2025
EMS68091-19 G57 eyepiece reticles, pharmaceutical PSA pattern 19mm Each 0 in stock (?) $465.00 AUD
EMS68091-20.4 G57 eyepiece reticles, pharmaceutical PSA pattern 20.4mm Each 0 in stock (?) $465.00 AUD
EMS68091-21 G57 eyepiece reticles, pharmaceutical PSA pattern 21mm Each 0 in stock (?) $465.00 AUD
EMS68091-23 G57 eyepiece reticles, pharmaceutical PSA pattern 23mm Each 0 in stock (?) $465.00 AUD
EMS68091-24.5 G57 eyepiece reticles, pharmaceutical PSA pattern 24.5mm Each 0 in stock (?) $476.00 AUD
EMS68091-25 G57 eyepiece reticles, pharmaceutical PSA pattern 25mm Each 0 in stock (?) $476.00 AUD
EMS68091-26 G57 eyepiece reticles, pharmaceutical PSA pattern 26mm Each 0 in stock (?) $476.00 AUD
EMS68091-27 G57 eyepiece reticles, pharmaceutical PSA pattern 27mm Each 0 in stock (?) $491.00 AUD
