ProPlate microarray chamber slide system sets, stainless steel clips
ProPlate microarray slide system integrates microscope slide based array technology with automated microtiter plate processing. Up to 64 individual arrays can be assayed per slide. Four slides fit into a tray, producing a modular plate with a standard microtiter plate footprint and well spacing allowing automated robotic processing of up to 256 arrays.
- Up to 64 leak-proof wells on any slide surface without the use of adhesive
- Microtiter plate well spacing facilitates use with multichannel pipettes
- 7 x 7 mm square well are ideal for high content arrays
- 5 - 350uL well volumes accommodate small reagent and large wash volumes
- Available in Chip Chip compatible formats.
ProPlate Tray Set includes: 3 x Slide modules, Stainless Steel Spring Clips, Tray, Cover, 10 Seal Strips and 1 Seal Strip applicator.
Tray conforms to SBS standards for footprint (81.7mm width x 123.7mm length) and well spacing.
| Code | Title | Size | Wells | Pack Size | Availability | Price | Updated: 05-02-2025 |
|---|---|---|---|---|---|---|---|
| EMS63484-01 | ProPlate microarray chamber slide system sets, stainless steel clips | 16.5 x 70mm | 1 | Each | 0 in stock (?) | $390.00 AUD | |
| EMS63484-02 | ProPlate microarray chamber slide system sets, stainless steel clips | 16.5 x 34mm | 2 | Each | 0 in stock (?) | $268.00 AUD | |
| EMS63484-03 | ProPlate microarray chamber slide system sets, stainless steel clips | 18 x 20mm | 3 | Each | 0 in stock (?) | $373.00 AUD | |
| EMS63484-04 | ProPlate microarray chamber slide system sets, stainless steel clips | 16 x 16mm | 4 | Each | 0 in stock (?) | $373.00 AUD | |
| EMS63484-05 | ProPlate microarray chamber slide system sets, stainless steel clips | 16 x 16mm | 8 | Each | 0 in stock (?) | $373.00 AUD | |

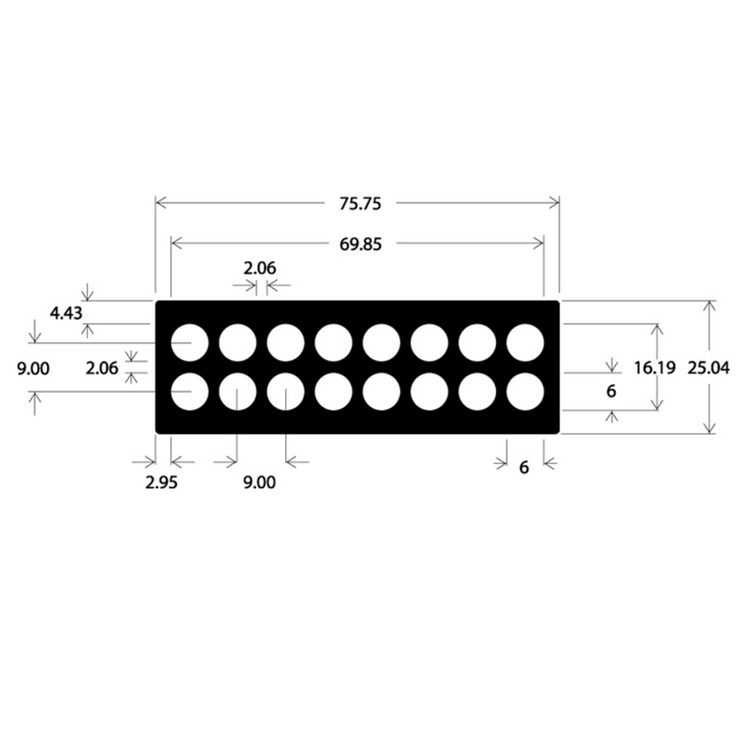

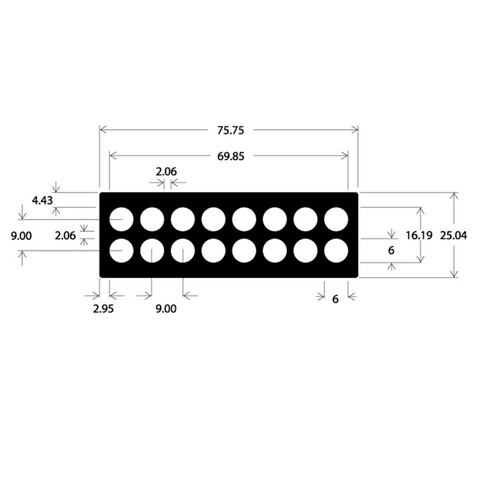

| EMS63484-06 | ProPlate microarray chamber slide system sets, stainless steel clips | 6mm dia.eter | 16 | Each | 0 in stock (?) | $268.00 AUD | |
| EMS63484-07 | ProPlate microarray chamber slide system sets, stainless steel clips | 7 x 7mm | 16 | Each | 0 in stock (?) | $376.00 AUD | |
| EMS63484-08 | ProPlate microarray chamber slide system sets, stainless steel clips | 3.5 x 3.5mm | 64 | Each | 0 in stock (?) | $376.00 AUD |
* Ordering Schedule
This item is available for back-order where 0 stock is listed.
We order from this manufacturer weekly, with an estimated lead time of 4 weeks.
This is the estimated lead time, based on the average time taken previously to fill orders from this particular supplier.
Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
