Gold coated substrates
We offer a variety of gold coated substrates that are economically priced. The electron beam evaporation absorbs all coatings under vacuum.
Such high-quality substrates have a gold coating of 500 Å (50Nm) and a thin chromium layer of adhesion (2-7Nm) between gold and glass. On request, you can also substitute this adhesion layer with titanium.
All substrates are pre-cleaned using a quality assurance ion method. Glass slides are packaged in a cleanroom setting and delivered in slide mailers. All coverslips are packed in a devoted cleanroom setting and shipped in the X0 Gel-Pak box. The gold substrates are all autoclavable. It is coated with gold specifically for its high conductivity.
Applications:
- Optics
- Nanotechnology
- Biotechnology
- AFM applications
Specifications:
| Microscope Slides | Silicon Wafers | Coverslips | |
| Type | Soda lime glass | P/Boron | Borosilicate glass |
| Density | 2.48 g/cm3 | ------- | 2.51 g/cm3 |
|
Refractive Index (λ=546.1 nm) |
1.517 | ------- | 1.525 |
| Coating | Gold, Au | Gold, Au | Gold, Au |
| Coating Purity | 99.999% | 99.999% | 99.999% |
| Deposition Technique | Electron Beam | Electron Beam | Electron Beam |
| Deposition Rate | 1-2 Å/sec | 1-2 Å/sec | 1-2 Å/sec |
| Vapour Pressure | 10-6 Torr | 10-6 Torr | 10-6 Torr |
| Orientation | ------- | <100> | ------- |
| Resistivity | ------- | 1-50 ohm-cm | ------- |
| Front Surface | ------- | Polished | ------- |
| Back Surface | ------- | Etched | ------- |
| Code | Style | Size | Pack Size | Availability | Price | Updated: 05-03-2026 |
|---|---|---|---|---|---|---|

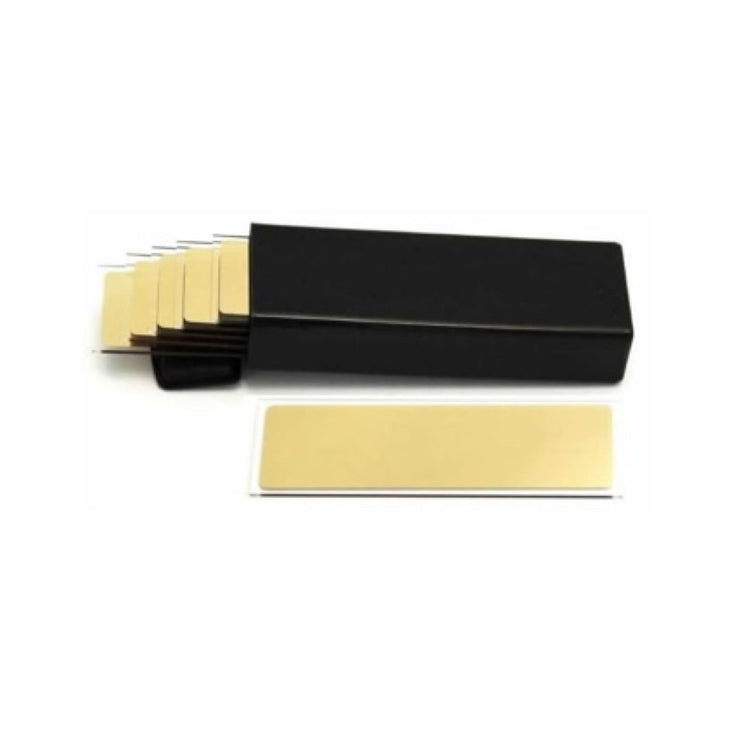

| EMS71892-05 | Microscope slide | 25 x 75 x 1mm | Each | No ETA | $192.00 AUD | |

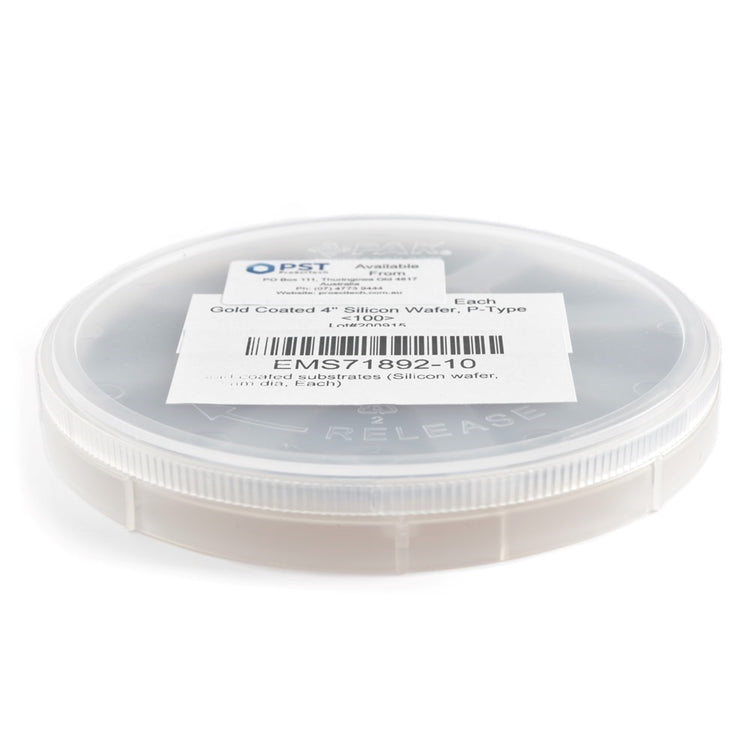

| EMS71892-10 | Silicon wafer | 100mm dia | Each | No ETA | $753.00 AUD | |

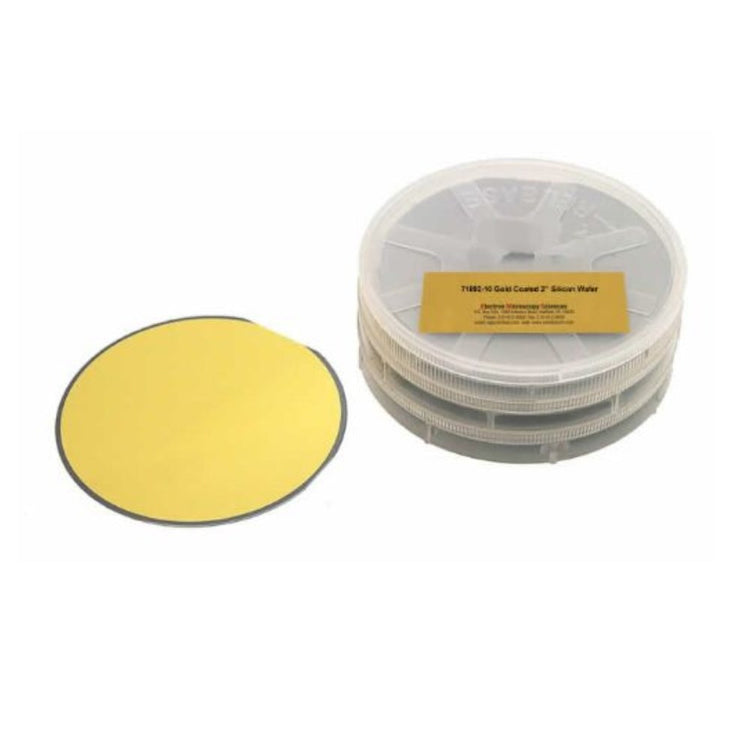

| EMS71892-15 | Silicon wafer | 50mm dia | Each | No ETA | $313.00 AUD | |

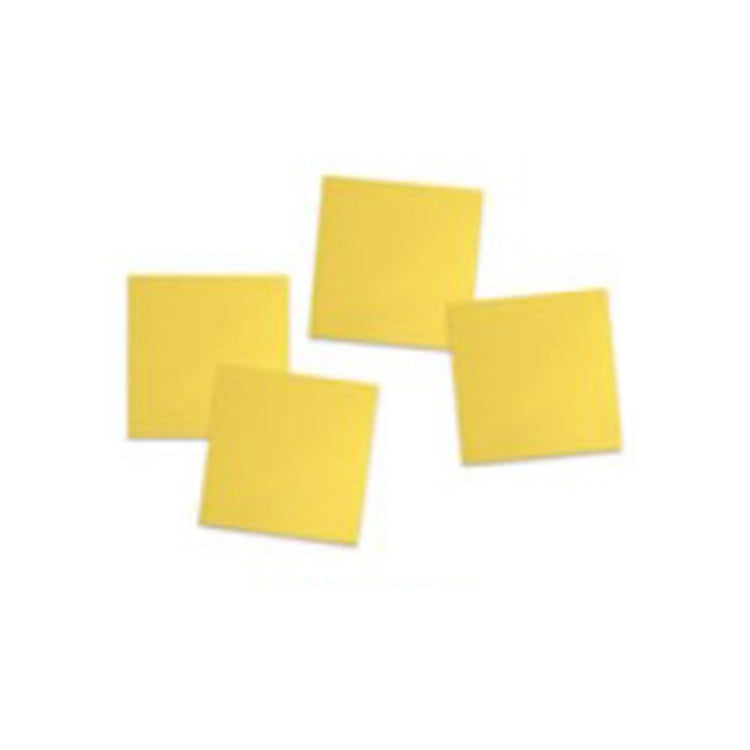

| EMS71892-20 | Square coverslip | 22 x 22 x 0.2mm | Pack/2 | No ETA | $240.00 AUD | |

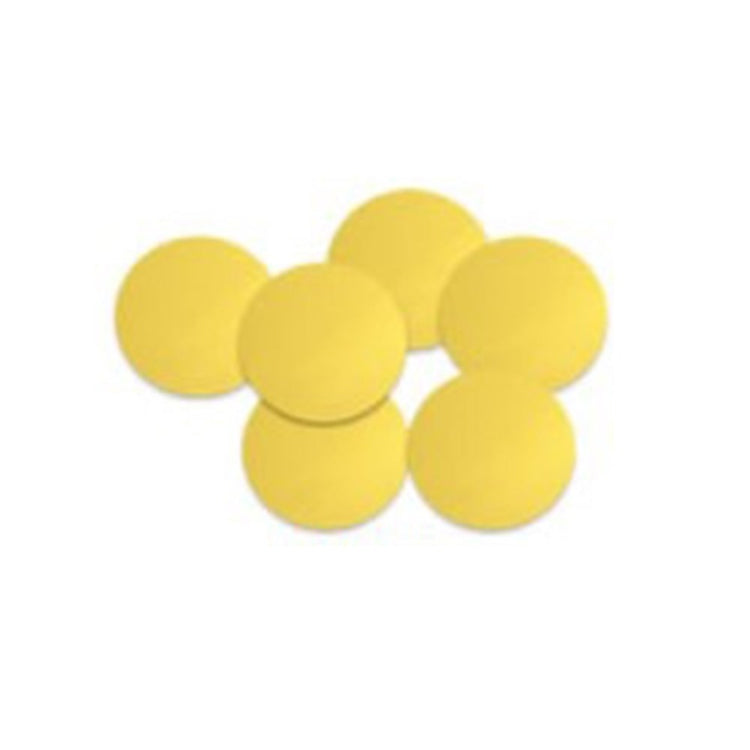

| EMS71892-25 | Round coverslip | 16mm dia | Pack/2 | No ETA | $177.00 AUD |
* Availability Explanation
X weeks – the estimated lead time, based on the average time taken previously to fill orders from this particular supplier. Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
In Stock – Plenty of stock on the shelf, ready to ship.
No ETA – our supplier has advised they cannot provide an accurate ETA. Generally there is some issue with supply, and it may be more than 6 months.
