Veco centre reference grids, square mesh

3.05 mm diameter, 20.3um thicknessMaterial: Copper (Cu); Nickel (Ni); Gold (Au)With a wide variety of styles available, Veco Grids offer superior handling characteristics. Plus Veco Grids are the most rigid grids available.Square Mesh with Centre Reference

3.05 mm diameter, 20.3um thickness
Material: Copper (Cu); Nickel (Ni); Gold (Au)

With a wide variety of styles available, Veco Grids offer superior handling characteristics. Plus Veco Grids are the most rigid grids available.

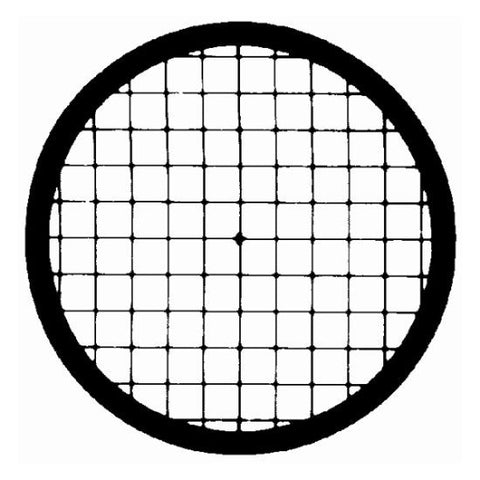

Square Mesh with Centre Reference

    Technical Data µm
Type Product Pitch Hole Bar
50 mesh EMS0050-Cu 500 450 50
50 mesh EMS0050-Ni 500 450 50
50 mesh EMS0050-Au 500 450 50
75 mesh EMS0075-Cu 333 283 50
75 mesh EMS0075-Ni 333 283 50
75 mesh EMS0075-Au 333 283 50
100 mesh EMS0100-Cu 250 200 50
100 mesh EMS0100-Ni 250 200 50
100 mesh EMS0100-Au 250 200 50
150 mesh EMS0150-Cu 167 117 50
150 mesh EMS0150-Ni 167 117 50
150 mesh EMS0150-Au 167 117 50
200 mesh EMS0200-Cu 125 85 40
200 mesh EMS0200-Ni 125 85 40
200 mesh EMS0200-Au 125 85 40
250 mesh EMS0250-Cu 100 60 40
250 mesh EMS0250-Ni 100 60 40
300 mesh EMS0300-Cu 83 45 38
300 mesh EMS0300-Ni 83 45 38
300 mesh EMS0300-Au 83 45 38
400 mesh EMS0400-Cu 63 30 33
400 mesh EMS0400-Ni 63 30 33
400 mesh EMS0400-Au 63 30 33
E200 EMSE200-Ni 125 85 40
SS200 EMS0200-SS **
Updated: 02-11-2024
Code Title Material Mesh Size Pack Size Availability Price Updated: 02-11-2024
EMS0050-CU Veco centre reference grids, square mesh Copper 50 mesh Pack/100 0 in stock (?) $60.00 AUD
EMS0050-NI Veco centre reference grids, square mesh Nickel 50 mesh Pack/100 0 in stock (?) $69.00 AUD
EMS0050-AU Veco centre reference grids, square mesh Gold 50 mesh Pack/50 0 in stock (?) $301.00 AUD
EMS0075-CU Veco centre reference grids, square mesh Copper 75 mesh Pack/100 0 in stock (?) $63.00 AUD
EMS0075-NI Veco centre reference grids, square mesh Nickel 75 mesh Pack/100 0 in stock (?) $65.00 AUD
EMS0075-AU Veco centre reference grids, square mesh Gold 75 mesh Pack/50 0 in stock (?) $351.00 AUD
EMS0100-CU Veco centre reference grids, square mesh Copper 100 mesh Pack/100 0 in stock (?) $69.00 AUD
EMS0100-NI Veco centre reference grids, square mesh Nickel 100 mesh Pack/100 0 in stock (?) $55.00 AUD
EMS0100-AU Veco centre reference grids, square mesh Gold 100 mesh Pack/50 0 in stock (?) $368.00 AUD
EMS0150-CU Veco centre reference grids, square mesh Copper 150 mesh Pack/100 0 in stock (?) $69.00 AUD
EMS0150-NI Veco centre reference grids, square mesh Nickel 150 mesh Pack/100 0 in stock (?) $69.00 AUD
EMS0150-AU Veco centre reference grids, square mesh Gold 150 mesh Pack/50 0 in stock (?) $368.00 AUD
EMS0200-CU Veco centre reference grids, square mesh Copper 200 mesh Pack/100 0 in stock (?) $69.00 AUD
EMS0200-NI Veco centre reference grids, square mesh Nickel 200 mesh Pack/100 0 in stock (?) $69.00 AUD
EMS0200-AU Veco centre reference grids, square mesh Gold 200 mesh Pack/50 0 in stock (?) $351.00 AUD
EMS0250-CU Veco centre reference grids, square mesh Copper 250 mesh Pack/100 0 in stock (?) $68.00 AUD
EMS0250-NI Veco centre reference grids, square mesh Nickel 250 mesh Pack/100 0 in stock (?) $69.00 AUD
EMS0300-CU Veco centre reference grids, square mesh Copper 300 mesh Pack/100 0 in stock (?) $69.00 AUD
EMS0300-NI Veco centre reference grids, square mesh Nickel 300 mesh Pack/100 0 in stock (?) $69.00 AUD
EMS0300-AU Veco centre reference grids, square mesh Gold 300 mesh Pack/50 0 in stock (?) $368.00 AUD
EMS0400-CU Veco centre reference grids, square mesh Copper 400 mesh Pack/100 0 in stock (?) $76.00 AUD
EMS0400-NI Veco centre reference grids, square mesh Nickel 400 mesh Pack/100 0 in stock (?) $74.00 AUD
EMS0400-AU Veco centre reference grids, square mesh Gold 400 mesh Pack/50 0 in stock (?) $368.00 AUD
EMSE200-NI Veco centre reference grids, square mesh Nickel E-200 mesh Pack/100 0 in stock (?) $69.00 AUD
EMS0200-SS Veco centre reference grids, square mesh Stainless steel 200 mesh Pack/100 0 in stock (?) $205.00 AUD
