Tungsten wire baskets

Tungsten Wire BasketsTungsten has the highest melting point and lowest vapor pressure of all metals, and at the temperatures over 1650?C has the highest tensile strength. It has excellent corrosion resistance and is attacked only slightly by most mineral acids.Tungsten is the most useful material used in vacuum evaporation technique, due to its special properties and cost factor.Properties of TungstenChemical symbol:WAtomic Radius:2.02?Atomic Volume, cm3/mol:9.53Covalent Radius:1.3?Crystal Structure:Body centered cubeNumber of Electron (with no charge):74Atomic Number of Protons:74Number of Neutrons (most common/stable nuclide):110Ionic Radius:0.62?

Tungsten Wire Baskets

Tungsten has the highest melting point and lowest vapor pressure of all metals, and at the temperatures over 1650?C has the highest tensile strength. It has excellent corrosion resistance and is attacked only slightly by most mineral acids.

Tungsten is the most useful material used in vacuum evaporation technique, due to its special properties and cost factor.

Properties of Tungsten

Chemical symbol: W
Atomic Radius: 2.02?
Atomic Volume, cm3/mol: 9.53
Covalent Radius: 1.3?
Crystal Structure: Body centered cube
Number of Electron (with no charge): 74
Atomic Number of Protons: 74
Number of Neutrons (most common/stable nuclide): 110
Ionic Radius: 0.62?
Cross Section: 18.5 barns ? 0.5

Clean, Vacuum grade, tungsten wire.

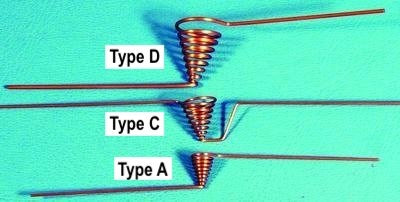

Basket Type Turns I.D. Height Wire Lead Wire Dia.
A 9 4mmm 7mm 35mm 0.508mm
C 8 7mm 9mm 50mm 0.508mm
D 8 9mm 14mm 40mm 0.762mm
Code Title Type Pack Size Availability Price Updated: 25-05-2024
EMS73830 Tungsten wire baskets Type A Pack/50 See above $354.00 AUD
EMS73832 Tungsten wire baskets Type C Pack/50 See above $487.00 AUD
EMS73834 Tungsten wire baskets Type D Pack/50 See above $424.00 AUD
