Tripod polisher accessories, Model 590/590+/590S

Tripod polishers are used to prepare micro samples for TEM and SEM without strong chemicals and will while limiting ion milling time. It can be used to prepare both plan-view and cross-sections from ceramics, composites, metals, rocks, and minerals. These accessories are compatible with Tripod Polishers 590/590+/590S.The Tripod Polisher Base (EMS50116-05): holds the micrometer and has two captive screws that hold the L-Brackets or the Parallel Polishing Mount in position when polishing the samples.The Precision Locking Micrometers (EMS50116-10): have special larger diameter locking rings for easy locking and are graduated in one micron increments with 13mm travel. Non-coating Micrometers also available, but not recommended.The Delrin Feet (EMS50116-15): are applied to the tip of each micrometer and are designed to protect the micrometer as well as the lapping from damage when polishing TEM samples.Can be used with the Pyrex Insert for Wedge Polishing (...

Tripod polishers are used to prepare micro samples for TEM and SEM without strong chemicals and will while limiting ion milling time. It can be used to prepare both plan-view and cross-sections from ceramics, composites, metals, rocks, and minerals. These accessories are compatible with Tripod Polishers 590/590+/590S.

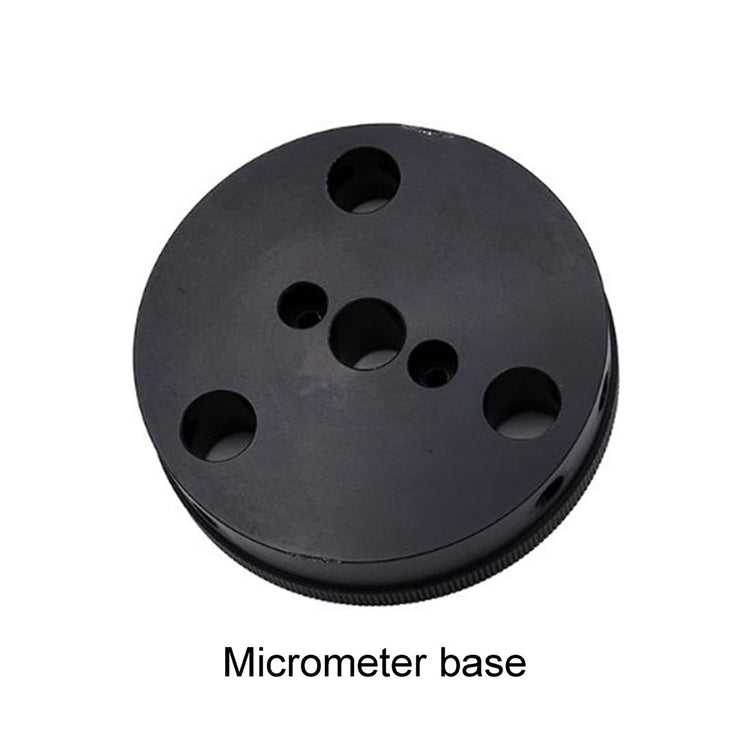

The Tripod Polisher Base (EMS50116-05): holds the micrometer and has two captive screws that hold the L-Brackets or the Parallel Polishing Mount in position when polishing the samples.

The Precision Locking Micrometers (EMS50116-10): have special larger diameter locking rings for easy locking and are graduated in one micron increments with 13mm travel. Non-coating Micrometers also available, but not recommended.

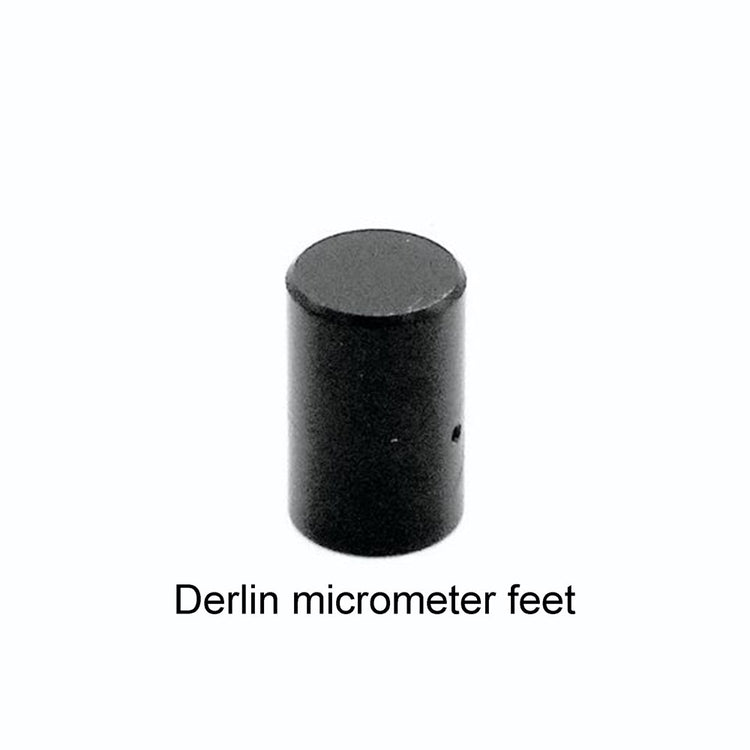

The Delrin Feet (EMS50116-15): are applied to the tip of each micrometer and are designed to protect the micrometer as well as the lapping from damage when polishing TEM samples.

Can be used with the Pyrex Insert for Wedge Polishing (EMS50116-60), the SEM Stub (EMS50116-65) or the Wedge Polishing Mount (EMS50116-61). It can be used for polishing the edge of the sample to the area of interest for SEM evaluation or for preparation to do the final wedge polishing for TEM.

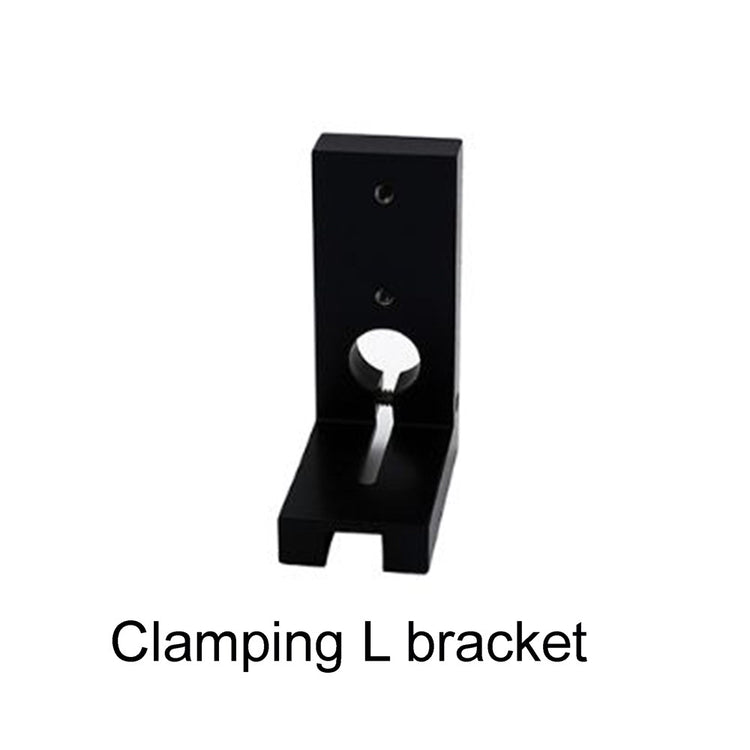

The Slotted L-Bracket (EMS50116-30): With the Slotted L-Bracket the Pyrex Insert is held with a form fix clamp that is tightened with a single screw. The Inserts are held tightly with a good thermal contact for mounting samples when the L-Bracket is heated on a hot plate. When examining the mounted sample under a microscope it can be lit from the bottom as well as the side. It can also be used to polish the edge of the samples to the area of interest prior to polishing the wedge.

X-Section L-Bracket (EMS50116-31): is used to mechanically clamp a sample (such as an IC Package) on the side of an L-Bracket for optimal SEM cross sectioning.

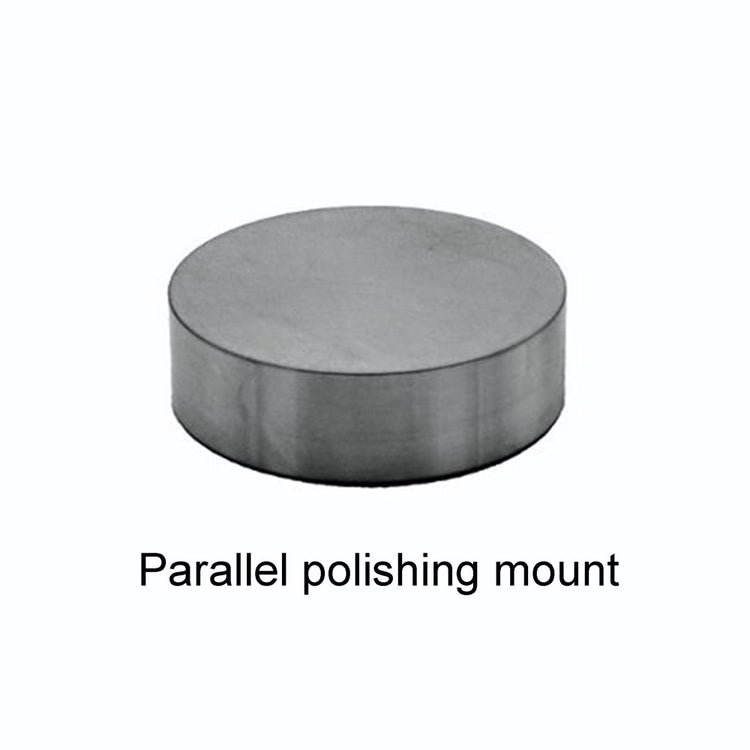

The Parallel Polishing Mount (EMS50116-35): is mounted in the centre of the Tripod Polisher(r) Base in place of the L-Bracket and is used for parallel polishing by adjusting the 3 micrometer feet.

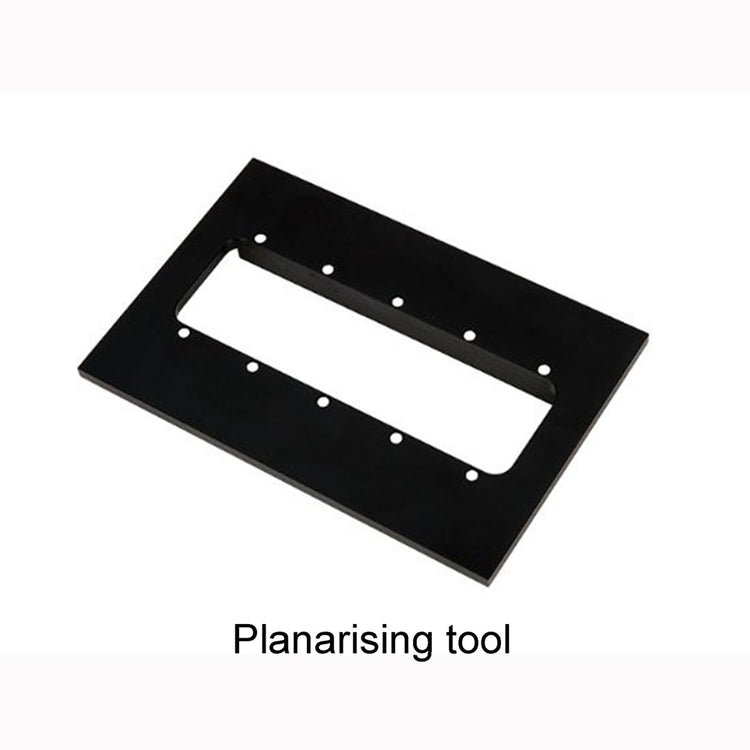

The Planarising Tool (EMS50116-40): is used to lap the three delrin feet to be coplanar in preparation for preparing samples with Parallel Polishing Mount.

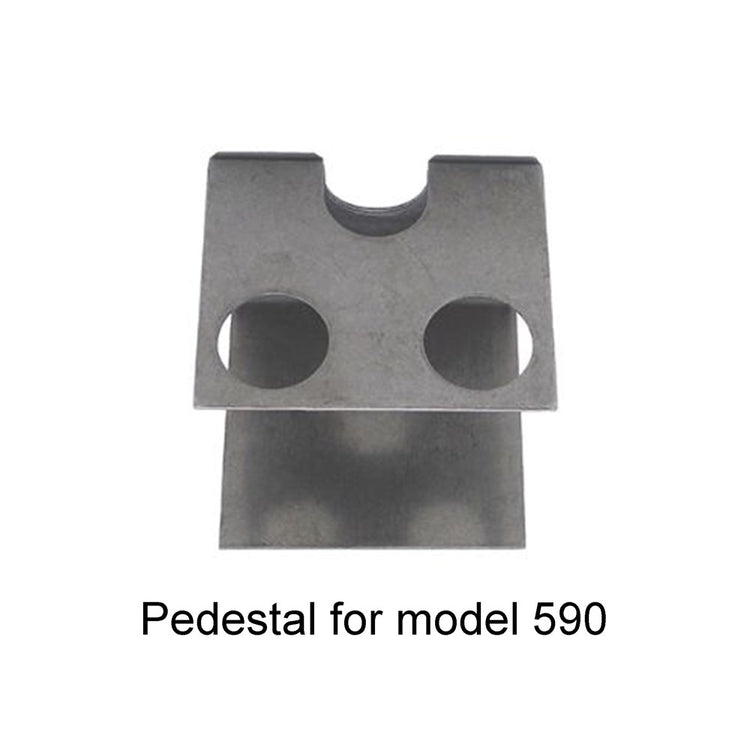

The Microscope Stand (EMS50116-55): is used to hold Model 590 Tripod Polisher(r) with sample facing up for viewing under a microscope or serve to protect the sample.

The Heater Block (EMS50116-50): is designed to hold any of the L-Brackets while they are being heated on a hot plate prior to mounting sample melted wax. This provides a slow, uniform temperature gradient, which minimiSes thermal shock.

The Pyrex Insert for Wedge Polishing (EMS50116-60): is used with the Screw Clamp and Slotted L-Bracket for mounting sample for the TEM.

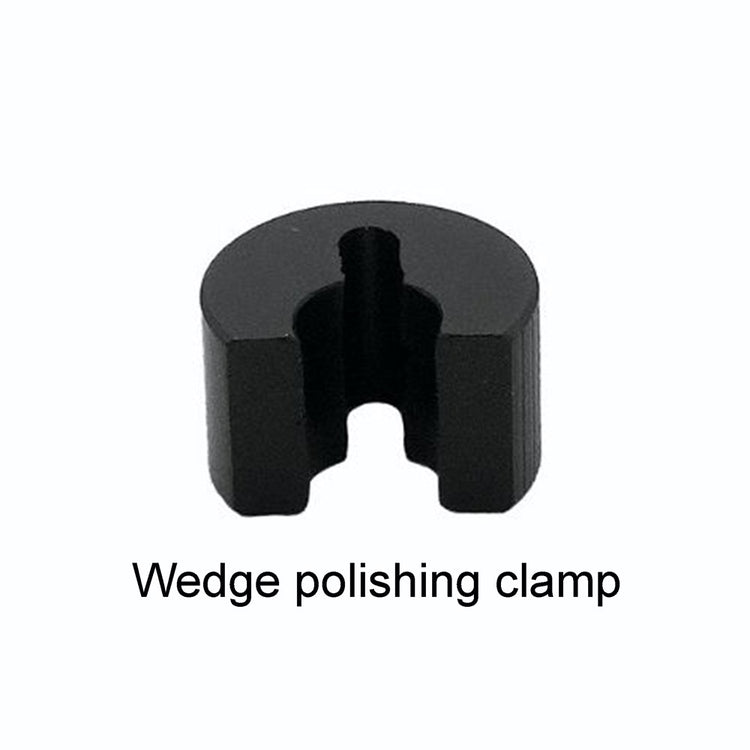

The Wedge Polishing Mount (EMS50116-61): includes a Wedge Polishing Clamp (EMS50116-62) and 5 of Pyrex Wedge Polishing Rod (EMS50116-63).

This holder is used for TEM Wedge Polishing and provides a small sample mounting area allowing for maximum adjustment range of the sample.

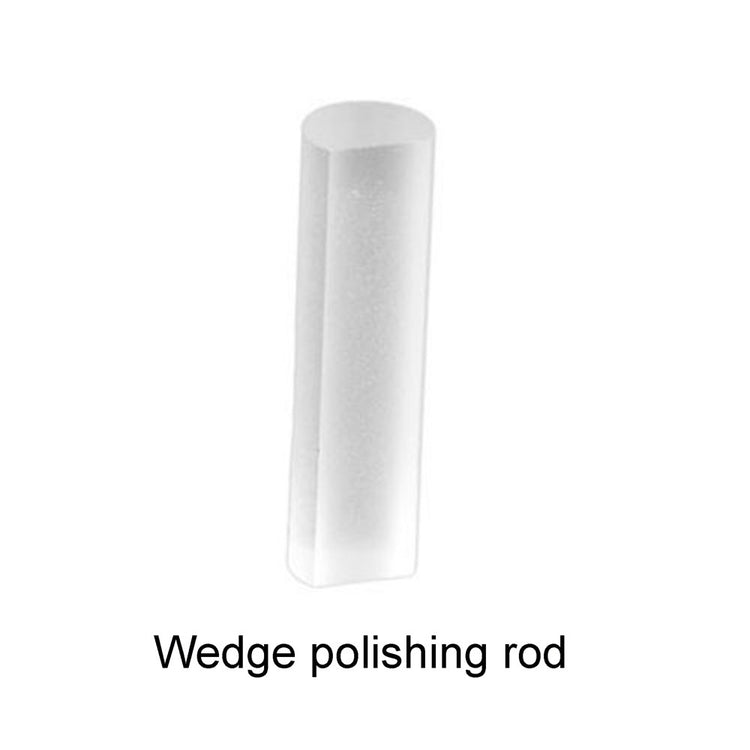

The Pyrex Wedge Polishing Rod (EMS50116-63): is a replacement part used with the model EMS50116-35 Wedge Polishing Mount.

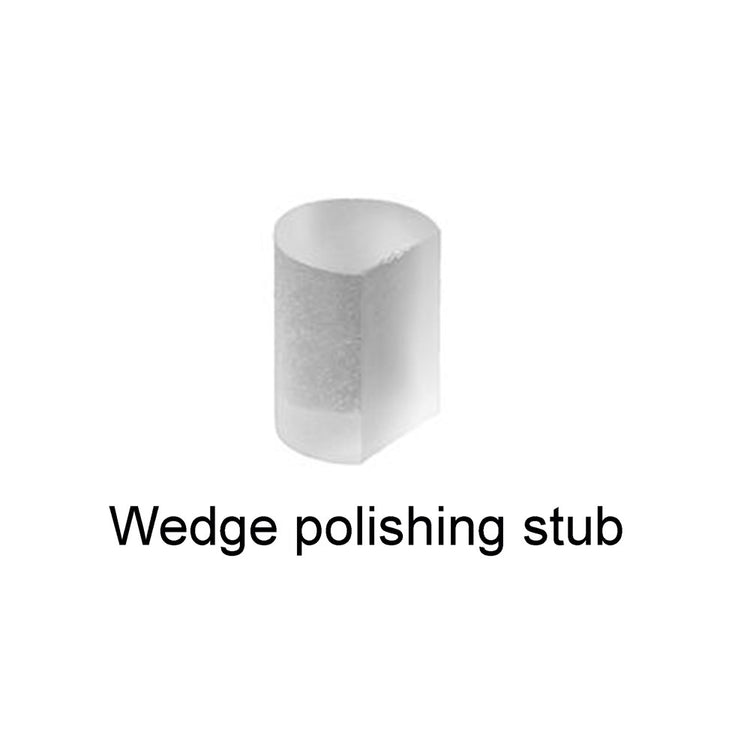

The Pyrex Wedge Polishing Stub (EMS50116-64): is mounted to a Pyrex Insert (EMS50116-60) to produce a similar effect as is accomplished with the model EMS50116-61.

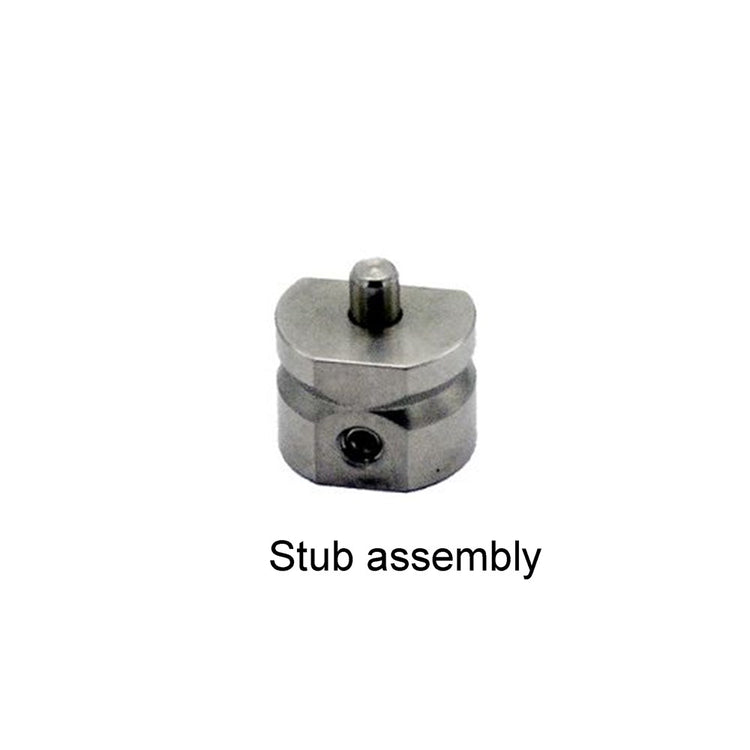

The SEM Stub (EMS50116-65): is used for mounting samples for SEM and can be transferred directly to the SEM or to the special holder for use in mil.

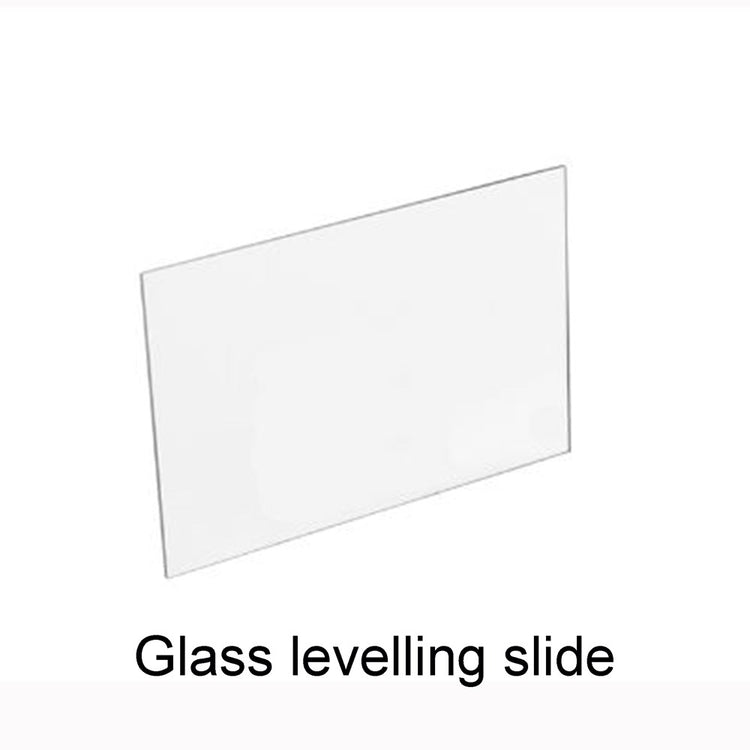

The Glass Levelling Slide (EMS50116-70): is used for levelling the 3 micrometer"s feet or 2 of the feet and the sample.

The Tool Kit: contains 2 hex drivers (EMS50116-71 & EMS50116-72) and torque handle for use with the Model 590 Tripod Polisher in addition to wrench (#50116-73) for micrometer repair.

Code Title Type Pack Size Availability Price Updated: 06-03-2024
EMS50116-05 Tripod polisher accessories, Model 590/590+/590S Micrometer base Each 2 weeks $710.00 AUD
EMS50116-10 Tripod polisher accessories, Model 590/590+/590S Precision locking micrometer Each 2 weeks $478.00 AUD
EMS50116-15 Tripod polisher accessories, Model 590/590+/590S Derlin micrometer feet Each 2 weeks $60.00 AUD
EMS50116-20 Tripod polisher accessories, Model 590/590+/590S Plain L bracket Each 2 weeks $285.00 AUD
EMS50116-25 Tripod polisher accessories, Model 590/590+/590S Screw clamp L bracket Each 2 weeks $340.00 AUD
EMS50116-30 Tripod polisher accessories, Model 590/590+/590S Clamping L bracket Each 2 weeks $448.00 AUD
EMS50116-31 Tripod polisher accessories, Model 590/590+/590S X-section L bracket Each 2 weeks $383.00 AUD

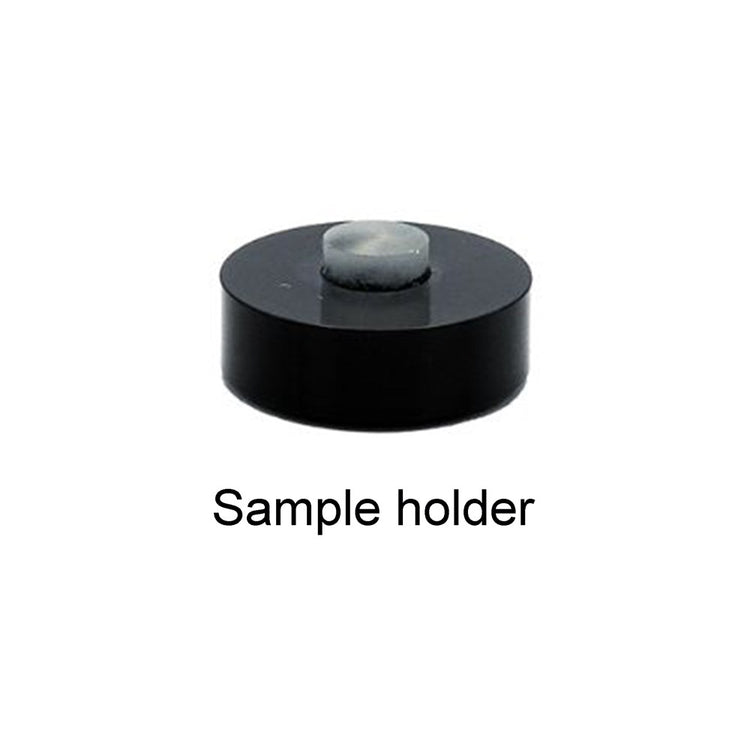

EMS50116-35 Tripod polisher accessories, Model 590/590+/590S Sample holder Each 2 weeks $193.00 AUD
EMS50116-36 Tripod polisher accessories, Model 590/590+/590S Parallel polishing mount Each 2 weeks $117.00 AUD
EMS50116-40 Tripod polisher accessories, Model 590/590+/590S Planarising tool Each 2 weeks $510.00 AUD
EMS50116-45 Tripod polisher accessories, Model 590/590+/590S Support Collar Each 2 weeks $90.00 AUD
EMS50116-50 Tripod polisher accessories, Model 590/590+/590S Heater block Each 2 weeks $176.00 AUD
EMS50116-55 Tripod polisher accessories, Model 590/590+/590S Pedestal for model 590 Each 2 weeks $174.00 AUD
EMS50116-60 Tripod polisher accessories, Model 590/590+/590S Pyrex insert Each 2 weeks $71.00 AUD
EMS50116-61 Tripod polisher accessories, Model 590/590+/590S Wedge polishing mount Each 2 weeks $344.00 AUD
EMS50116-62 Tripod polisher accessories, Model 590/590+/590S Wedge polishing clamp Each 2 weeks $145.00 AUD
EMS50116-63 Tripod polisher accessories, Model 590/590+/590S Wedge polishing rod Each 2 weeks $73.00 AUD
EMS50116-64 Tripod polisher accessories, Model 590/590+/590S Wedge polishing stub Each 2 weeks $55.00 AUD
EMS50116-65 Tripod polisher accessories, Model 590/590+/590S Stub assembly Each 2 weeks $169.00 AUD
EMS50116-70 Tripod polisher accessories, Model 590/590+/590S Glass levelling slide Each 2 weeks $24.00 AUD
