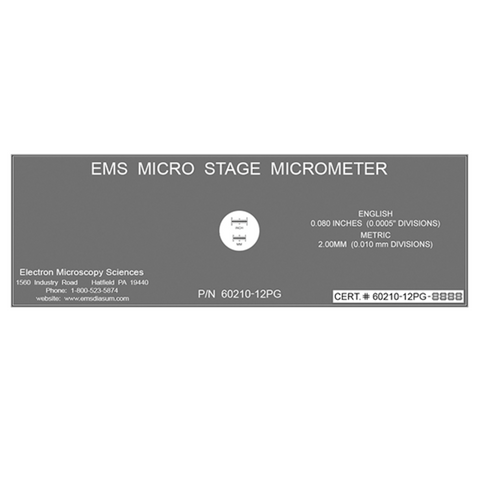

EMS stage micrometers, SM-12
The SM-12 micrometer is useful in microscopes and other optical magnification systems for magnification calibration.
Available: Chrome on glass (G) as standard, chrome on opal glass (O) or chrome on quartz (Q) by request only as a custom.
P: positive image (mostly clear or white); N: negative image (mostly opaque or black).
Specifications:
| Glass Size | 25mm x 75mm. ≥1.4mm thickness |
| Scale Length | 0.08 inch (English) X-axis only 2.0 mm (Metric) X-axis only |
| Divisions | English = 0.001"; Metric = 25µm (0.025 mm) No numerical scale labelling |
| Flatness | ≤ 10 µm/100 mm |
| Image Forming Material | Chrome |
| Image Contrast/Density | Chrome transmission density is ≥ 2.0 |
| Feature Size Accuracy | 2µm |
| Image Placement Accuracy | 0.001mm/100mm |
| Polarity | Scales are opaque on a clear background |
| Reading Direction | Right Read Chrome Up (RRCU) |
Manufactured in the USA
| Code | Type | Pack Size | Availability | Price | Updated: 04-06-2026 |
|---|---|---|---|---|---|
| EMS60210-12PG | SM-12 | Each | No ETA | $501.00 AUD | |
| EMS60210-12PGC | SM-12, calibrated | Each | No ETA | $1,630.00 AUD |
