Square holey silicon nitride TEM window grids, nanoporous

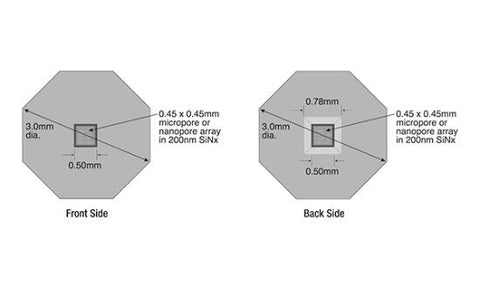

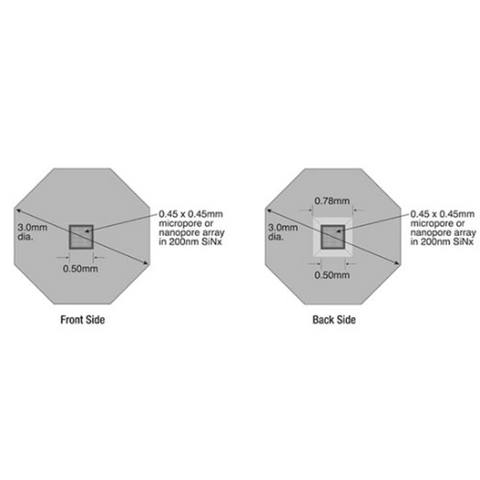

State-of-the-art support film.This latest addition to our line of TEM Window Grids is manufactured using advanced MEMS technology to produce a unique 500 x 500µm aperture with 200nm low-stress silicon nitride membrane.Available with square holey pattern or 5 x 5 indexed array with square holey film.Choosing the right TEM window gridFeaturesResistant to acids, bases, and solvents.Can be easily plasma-cleaned to remove organic contamination.Tolerates high-temperature experiments and imaging up to 1000°C.Provides a carbon-free background.Packaged under cleanroom conditions.SpecificationsMembrane Thickness200nmWindow Size0.5 x 0.5mm<...
State-of-the-art support film.
This latest addition to our line of TEM Window Grids is manufactured using advanced MEMS technology to produce a unique 500 x 500µm aperture with 200nm low-stress silicon nitride membrane.
Available with square holey pattern or 5 x 5 indexed array with square holey film.
Choosing the right TEM window grid
Features
- Resistant to acids, bases, and solvents.
- Can be easily plasma-cleaned to remove organic contamination.
- Tolerates high-temperature experiments and imaging up to 1000°C.
- Provides a carbon-free background.
- Packaged under cleanroom conditions.
Specifications
| Membrane Thickness | 200nm |
| Window Size | 0.5 x 0.5mm |
| Frame Thickness | 200µm |
Nanoporous
| Code | Hole Size | Layout | Total No. | Pitch | Porosity |
| EMS76043-50 | 750nm | 300 x 300 | 90,000 | 1.5µm | 22.3% |
| EMS76043-51 | 500nm | 450 x 450 | 202,500 | 1.0µm | 22.3% |
| EMS76043-52 | 400nm | 562 x 562 | 315,844 | 0.8µm | 22.8% |
| EMS76043-53 | 300nm | 750 x 750 | 562,500 | 0.6µm | 22.3% |
| EMS76043-54 | 250nm | 900 x 900 | 810,000 | 0.5µm | 22.3% |
| EMS76043-55 | 200nm | 1125 x 1125 | 1,265,625 | 0.4µm | 22.8% |
| EMS76043-56 | 150nm | 1125 x 1125 | 1,265,625 | 0.4µm | 22.4% |
| EMS76043-57 | 100nm | 1125 x 1125 | 1,265,625 | 0.4µm | 22.1% |
Please choose carefully. Returns of this item are subject to approval.
