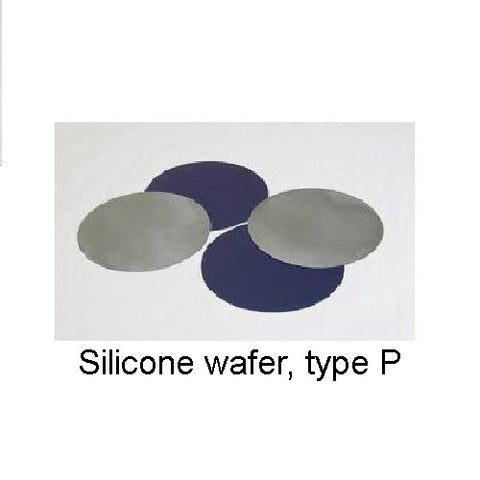

Silicon wafer, type P
These silicon wafers can be used for substrate studies or as substrate for AFM and SEM samples by cleaving the wafer.Specifications:
These silicon wafers can be used for substrate studies or as substrate for AFM and SEM samples by cleaving the wafer.
Specifications:
| Size: | 1 in | 2 in | 3 in | 4 in | 6 in |
| Material: | Silicon | ||||
| Diameter: | 25mm | 50mm | 76mm | 100mm | 150mm |
| Orientation: | <100> | <100> | <111> | <100> | <100> |
| Resistance: | 1-30 Ohms | ||||
| Type P: | Boron - 1 primary flat | ||||
| SiO2 top coating: | None | ||||
| Wafer Thickness: | 254-304µm | 230-330µm | 345-470µm | 1475-575µm | 600-690µm |
| Roughness: | 2nm | ||||
| TTV: | <20µm | ||||
| Polished: | On one side | ||||
Please choose carefully. Returns of this item are subject to approval.
Updated: 24-06-2025
| Code | Size | Pack Size | Availability | Price | Updated: 24-06-2025 |
|---|---|---|---|---|---|
| EMS71893-04 | 1 inch | Each | 0 in stock (?) | $101.00 AUD | |
| EMS71893-05 | 2 inch | Each | 0 in stock (?) | $64.00 AUD | |
| EMS71893-06 | 3 inch | Each | 0 in stock (?) | $73.00 AUD | |
| EMS71893-07 | 4 inch | Each | 0 in stock (?) | $96.00 AUD | |
| EMS71893-08 | 6 inch | Each | 0 in stock (?) | $134.00 AUD |
