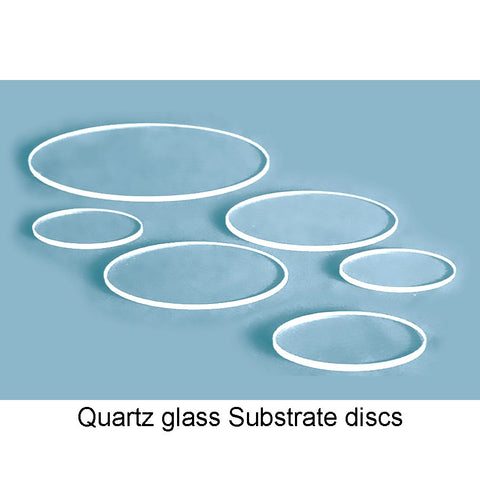

Quartz glass substrate discs

High-quality, optical-grade fused quarts (amorphous)

  • Ideal for thin film research as a substrate, or for optical research
  • Clear polished on both sides
  • Excellent chemical resistance against a wide variety of solvents
  • Excellent heat resistance with high dimensional stability over a wide temperature range.

Available in diameters from 25.4mm to 101mm and thickness of 1.58mm or 3.175mm.

Material GE 124 Quartz
Transparency 0.19-4.2µm with very low absorbance in the 0.26-2.6µm range
Surface Flatness ±1° with 60/40 scratch/dig specifications
Updated: 27-12-2024
Code Title Diameter Pack Size Availability Price Updated: 27-12-2024
EMS71893-40 Quartz glass substrate discs 25.4 x 1.6mm Each 3 in stock $32.00 AUD
EMS71893-41 Quartz glass substrate discs 25.4 x 3.2mm Each 0 in stock (?) $32.00 AUD
EMS71893-42 Quartz glass substrate discs 50.8 x 1.6mm Each 0 in stock (?) $78.00 AUD
EMS71893-43 Quartz glass substrate discs 50.8 x 3.2 mm Each 0 in stock (?) $82.00 AUD
EMS71893-44 Quartz glass substrate discs 76.2 x 1.6 mm Each 0 in stock (?) $123.00 AUD
EMS71893-45 Quartz glass substrate discs 76.2 x 3.2 mm Each 0 in stock (?) $125.00 AUD
EMS71893-46 Quartz glass substrate discs 101.6 x 1.6 mm Each 0 in stock (?) $177.00 AUD
EMS71893-47 Quartz glass substrate discs 101.6 x 3.2 mm Each 0 in stock (?) $200.00 AUD
