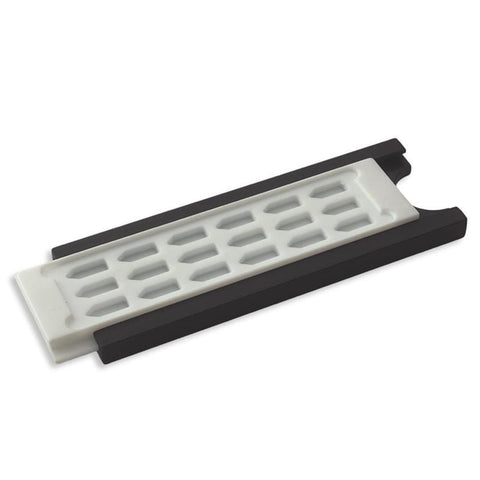

PTFE flat embedding mould set

Machined from PTFE block. This mould offers flat embedding for most resins, including LR White, LR Gold, JB-4, Immuno-Bed and Lowicryl. This PTFE Flat Embedding Mould can be used for both UV/low temperature and thermal cure, and may be used as a substitution for the silicone moulds. The individual cavities are pre-shaped to reduce block trimming.

For curing anaerobic material, we recommend using Aclar film, cut-to-size of the mould and lower on top of the mould after you 'just over-fill' the cavities with embedding resin. Due to the flexibility of the PTFE, you just bent the mould to pop out the cured resin blocks. After all the cast blocks have been removed, reinsert the mould to its holder to re-shape the mould. The mould holder is machined from aluminium and anodised black.

Mould with 18 cavities, each cavity measures 5mm W x 14mm L x 4mm D

Overall mold measures: 140 x 50 x 6mm

Mould is available as a set (includes one PTFE mould and one aluminium holder).

Code Title Type Pack Size Availability Price Updated: 19-05-2024
EMS70143 PTFE flat embedding mould set Mould set Each See above $298.00 AUD
EMS70143-R PTFE flat embedding mould set Mould only Each See above $246.00 AUD
