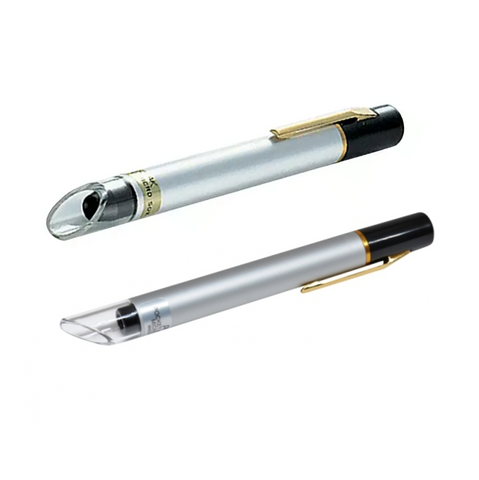

Peak pocket measuring microscopes

Pocket measuring microscope with reticle. New selected the models of 25X and 50X Pocket Microscope series, with incorporated scales into their lens barrel. The Reticle is cross hair with horizontal scale.To focus the microscope, hold it so that the notch at the tip of the acrylic cylinder of the microscope faces towards you, place the center of the object lens above the specimen and while tilting the cylinder forward and backward with your eye on the eye-piece lens, fix the cylinder and adjust to the best angle which can give the sharpest image.Specifications:

Pocket measuring microscope with reticle. New selected the models of 25X and 50X Pocket Microscope series, with incorporated scales into their lens barrel. The Reticle is cross hair with horizontal scale.

To focus the microscope, hold it so that the notch at the tip of the acrylic cylinder of the microscope faces towards you, place the center of the object lens above the specimen and while tilting the cylinder forward and backward with your eye on the eye-piece lens, fix the cylinder and adjust to the best angle which can give the sharpest image.

Specifications:

Magnification 25X 50X
Field of View 3.30mm 2.00mm
Min. Scale Division 0.05mm 0.02mm
Measuring Range 3.0mm 1.6mm
Size 12.4mm dia. x 127mm
12.4mm dia. x 127mm
Net Weight 12g 12g
Updated: 14-10-2025
Code Magnification Pack Size Availability Price Updated: 14-10-2025
EMS68130 25X Each 0 in stock (?) P.O.R. Quote
EMS68131 50X Each 0 in stock (?) P.O.R. Quote
