Platinum crucibles and lids
  • Collections

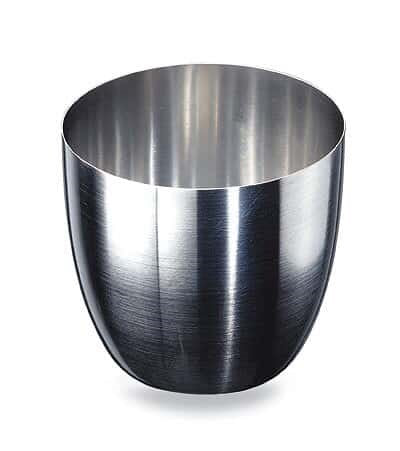

Platinum crucibles and lids

Made from platinum, resulting in excellent resistance to chemical attacks by acids and fusion mixtures.Platinum has excellent resistance to chemical attack by acids and fusion mixtures. This is what has made platinum an essential tool in chemical analysis; flux fusions which are widely used on a routine basis for the preparation of samples for x-ray fluorescence etc. All crucibles are made from platinum with an approximate weight in grams and an approximate in mm with a tolerance of ±5% .Lids are sold separately and in single units.EMS strives to maintain accurate pricing. However, due to fluctuations in precious metal prices, pricing on products containing precious metals is not guaranteed. We will contact you if there is a discrepancy.Available: Code

Made from platinum, resulting in excellent resistance to chemical attacks by acids and fusion mixtures.

Platinum has excellent resistance to chemical attack by acids and fusion mixtures. This is what has made platinum an essential tool in chemical analysis; flux fusions which are widely used on a routine basis for the preparation of samples for x-ray fluorescence etc. All crucibles are made from platinum with an approximate weight in grams and an approximate in mm with a tolerance of ±5% .

Lids are sold separately and in single units.

EMS strives to maintain accurate pricing. However, due to fluctuations in precious metal prices, pricing on products containing precious metals is not guaranteed. We will contact you if there is a discrepancy.

Available:

 Code Item Volume Height Top width Bottom width Base Thickness
EMS66500-1 base 1ml 13mm 12.0mm 7.2mm ----
EMS66501-1 lid
EMS66500-3 base 3ml 19mm 17.0mm 10.0mm ----
EMS66501-3 lid
EMS66500-5 base 5ml 22mm 20.5mm 12.0mm ----
EMS66501-5 lid
EMS66504-2 base 10ml 29mm 26.0mm 15.5mm 0.25mm
EMS66505-2 lid
EMS66504-3 base 10ml 24mm 29.0mm 17.5mm 0.25mm
EMS66505-3 lid
EMS66504-4 base 15ml 33mm 29.0mm 17.5mm 0.25mm
EMS66505-4 lid
EMS66504-5 base 15ml 27mm 32.0mm 19.5mm 0.25mm
EMS66505-5 lid
EMS66504-6 base 20ml 36mm 32.5mm 18.0mm 0.30mm
EMS66505-6 lid
EMS66504-7 base 20ml 31mm 37.0mm 22.5mm 0.25mm
EMS66505-7 lid
EMS66504-8 base 25ml 34mm 41mm 25mm 0.30mm
EMS66505-8 lid
EMS66504-9 base 25ml 39mm 35.0mm 21.0mm 0.30mm
EMS66505-9 lid
EMS66504-10 base 30ml 41mm 37.5mm 22.5mm 0.30mm
EMS66505-10 lid
EMS66504-11 base 35ml 36mm 43.5mm 26.5mm 0.30mm
EMS66505-11 lid
EMS66504-12 base 35ml 43mm 39.0mm 23.5mm 0.30mm
EMS66505-12 lid
EMS66504-13 base 40ml 46mm 41.5mm 25.0mm 0.30mm
EMS66505-13 lid
EMS66504-14 base 50ml 41mm 49.0mm 30.0mm 0.36mm
EMS66505-14 lid
EMS66504-15 base 50ml 49mm 44.0mm 26.5mm 0.38mm
EMS66505-15 lid
Code Title Type Size Pack Size Availability Price Updated: 15-09-2024
EMS66500-1 Platinum crucibles and lids Crucible 1ml Each See above Quote only Quote
Quote
EMS66500-3 Platinum crucibles and lids Crucible 3ml Each See above Quote only Quote
Quote
EMS66500-5 Platinum crucibles and lids Crucible 5ml Each See above Quote only Quote
Quote
EMS66501-1 Platinum crucibles and lids Lid 1ml Each See above Quote only Quote
Quote
EMS66501-3 Platinum crucibles and lids Lid 3ml Each See above Quote only Quote
Quote
EMS66501-5 Platinum crucibles and lids Lid 5ml Each See above Quote only Quote
Quote
EMS66504-10 Platinum crucibles and lids Crucible 30ml Each See above Quote only Quote
Quote
EMS66504-11 Platinum crucibles and lids Crucible 35ml, 36mm Each See above Quote only Quote
Quote
EMS66504-12 Platinum crucibles and lids Crucible 35ml, 43mm Each See above Quote only Quote
Quote
EMS66504-13 Platinum crucibles and lids Crucible 40ml Each See above Quote only Quote
Quote
EMS66504-14 Platinum crucibles and lids Crucible 50ml, 41mm Each See above Quote only Quote
Quote
EMS66504-15 Platinum crucibles and lids Crucible 50ml, 49mm Each See above Quote only Quote
Quote
EMS66504-2 Platinum crucibles and lids Crucible 10ml, 29mm Each See above Quote only Quote
Quote
EMS66504-3 Platinum crucibles and lids Crucible 10ml, 24mm Each See above Quote only Quote
Quote
EMS66504-4 Platinum crucibles and lids Crucible 15ml, 33mm Each See above Quote only Quote
Quote
EMS66504-5 Platinum crucibles and lids Crucible 15ml, 27mm Each See above Quote only Quote
Quote
EMS66504-6 Platinum crucibles and lids Crucible 20ml, 36mm Each See above Quote only Quote
Quote
EMS66504-7 Platinum crucibles and lids Crucible 20ml, 31mm Each See above Quote only Quote
Quote
EMS66504-8 Platinum crucibles and lids Crucible 25ml, 34mm Each See above Quote only Quote
Quote
EMS66504-9 Platinum crucibles and lids Crucible 25ml, 39mm Each See above Quote only Quote
Quote
EMS66505-10 Platinum crucibles and lids Lid 30ml Each See above Quote only Quote
Quote
EMS66505-11 Platinum crucibles and lids Lid 35ml, 36mm Each See above Quote only Quote
Quote
EMS66505-12 Platinum crucibles and lids Lid 35ml, 43mm Each See above Quote only Quote
Quote
EMS66505-13 Platinum crucibles and lids Lid 40ml Each See above Quote only Quote
Quote
EMS66505-14 Platinum crucibles and lids Lid 50ml, 41mm Each See above Quote only Quote
Quote
EMS66505-15 Platinum crucibles and lids Lid 50ml, 49mm Each See above Quote only Quote
Quote
EMS66505-2 Platinum crucibles and lids Lid 10ml, 29mm Each See above Quote only Quote
Quote
EMS66505-3 Platinum crucibles and lids Lid 10ml, 24mm Each See above Quote only Quote
Quote
EMS66505-4 Platinum crucibles and lids Lid 15ml, 33mm Each See above Quote only Quote
Quote
EMS66505-5 Platinum crucibles and lids Lid 15ml, 27mm Each See above Quote only Quote
Quote
EMS66505-6 Platinum crucibles and lids Lid 20ml, 36mm Each See above Quote only Quote
Quote
EMS66505-7 Platinum crucibles and lids Lid 20ml, 31mm Each See above Quote only Quote
Quote
EMS66505-8 Platinum crucibles and lids Lid 25ml, 34mm Each See above Quote only Quote
Quote
EMS66505-9 Platinum crucibles and lids Lid 25ml, 39mm Each See above Quote only Quote
Quote
