Omniprobe lift-out grids
Custom copper or molybdenum lift-out grids are specifically designed for in-situ lift-out. These grids include multiple indexed mounting locations with both vertical bars and "V" shaped attachment surfaces. 3mm diameter.Omniprobe TEM Grid Comparison ChartProductPostsMaterialNominal Thickness (µm)Nominal PostDownset (µm)Unique FeatureEMS75964-013Copper3010

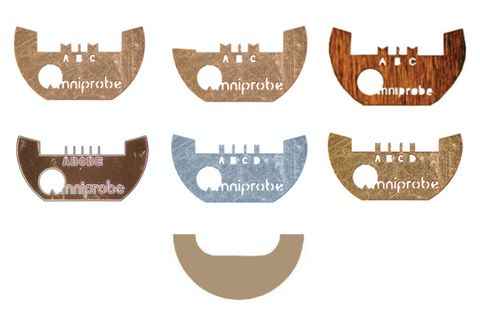

Custom copper or molybdenum lift-out grids are specifically designed for in-situ lift-out. These grids include multiple indexed mounting locations with both vertical bars and "V" shaped attachment surfaces. 3mm diameter.
Omniprobe TEM Grid Comparison Chart
| Product | Posts | Material | Nominal Thickness (µm) |
Nominal Post Downset (µm) |
Unique Feature |
| EMS75964-01 | 3 | Copper | 30 | 10 | — |
| EMS75964-02 | 3 | Molybdenum | 30 | 10 | Top Downset Only |
| EMS75964-03 | 0 | Berylium | 25 | N/A | Half Ring |
| EMS75964-04 | 5 | Copper | 40 | 10 | 5th Post is "E" |
| EMS75964-05 | 4 | Copper | 30 | 10 | — |
| EMS75964-06 | 4 | Molybdenum | 30 | 10 | Top DS Only |
| EMS75964-07 | 3 | Copper | 30 | 5 | Side Access |
| EMS75964-08 | 3 | Copper | 30 | 5 | — |
| EMS75964-09 | 5 | Copper | 35 | 5 | 5th Post is "E" |
| EMS75964-10 | 4 | Copper | 30 | 5 | — |
Please choose carefully. Returns of this item are subject to approval.
| Code | Title | Material | Type | Pack Size | Availability | Price | Updated: 07-10-2024 |
|---|---|---|---|---|---|---|---|
| EMS75964-01 | Omniprobe lift-out grids | Copper | 3 post, 10um downset | Pack/100 | See above | $454.00 AUD | |
| EMS75964-02 | Omniprobe lift-out grids | Molybdenum | 3 post, 10um downset | Pack/25 | See above | $671.00 AUD | |
| EMS75964-03 | Omniprobe lift-out grids | Beryllium | 0 post, half ring | Each | See above | $958.00 AUD | |
| EMS75964-04 | Omniprobe lift-out grids | Copper | 5 post, 10um downset | Pack/100 | See above | $492.00 AUD | |
| EMS75964-05 | Omniprobe lift-out grids | Copper | 4 post, 10um downset | Pack/100 | See above | $454.00 AUD | |
| EMS75964-06 | Omniprobe lift-out grids | Molybdenum | 4 post, 10um downset | Pack/25 | See above | $671.00 AUD | |
| EMS75964-07 | Omniprobe lift-out grids | Copper | 3 post, side access | Pack/100 | See above | $271.00 AUD | |
| EMS75964-08 | Omniprobe lift-out grids | Copper | 3 post, 5um downset | Pack/100 | See above | $271.00 AUD | |
| EMS75964-09 | Omniprobe lift-out grids | Copper | 5 post, 5um downset | Pack/100 | See above | $284.00 AUD | |
| EMS75964-10 | Omniprobe lift-out grids | Copper | 4 post, 5um downset | Pack/100 | See above | $284.00 AUD | |
