NIGHTSEA Dino-Lite digital microscope add-on light head and filter sets

The NIGHTSEA Model SFA Dino-Lite digital microscope fluorescence add-on light head and filter sets are to be used with the NIGHTSEA Dino-Lite digital microscopes fluorescence viewing systems and the Dino-Lite series of digital microscopes.While Dino-Lite does provide fluorescence versions, in certain circumstances you could achieve improved outcomes by utilising SFA excitation light sources when combined with matching barrier filters pre-mounted in a Dino-Lite endcap and simply clipping onto the front of the microscope.Included in add-on sets:Light headMatching snap-on barrier filterBarrier-filter glassesConvenient padded travel caseDesignationColourExcitationEmission FilterUVUltraviolet360 - 380nm...

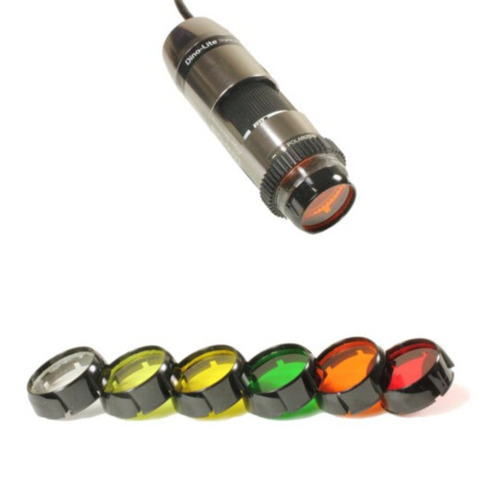

The NIGHTSEA Model SFA Dino-Lite digital microscope fluorescence add-on light head and filter sets are to be used with the NIGHTSEA Dino-Lite digital microscopes fluorescence viewing systems and the Dino-Lite series of digital microscopes.

While Dino-Lite does provide fluorescence versions, in certain circumstances you could achieve improved outcomes by utilising SFA excitation light sources when combined with matching barrier filters pre-mounted in a Dino-Lite endcap and simply clipping onto the front of the microscope.

Included in add-on sets:

  • Light head
  • Matching snap-on barrier filter
  • Barrier-filter glasses
  • Convenient padded travel case
Designation Colour Excitation Emission Filter
UV Ultraviolet 360 - 380nm 415nm longpass
VI Violet 400 - 415nm 450nm longpass
RB Royal Blue 440 - 460nm 500nm longpass
RB-GO Royal Blue 440 - 460nm 500-560nm longpass
CY Cyan 490 - 515nm 550nm longpass
GR Green 510 - 540nm 600nm longpass


Wavelength sets

Wavelength sets are named and colour coded for the colour of the excitation light, not the colour of the emitted fluorescence.

With the Royal Blue (RB) excitation we offer two barrier filters - longpass and bandpass. Read our Technical Data Sheet above on selecting the right passband option for your application.

This video shows how the NIGHTSEA system works with the Dino-Lite Edge Series Digital Microscopes.

Please note: Wavelength sets are named and colour coded for the colour of the excitation light, not the colour of the emitted fluorescence.

Code Title Colour Style Pack Size Availability Price Updated: 28-05-2024
OSFA-DL-LFS-UV NIGHTSEA Dino-Lite digital microscope add-on light head and filter sets Ultraviolet Excitation Each See above $1,199.00 AUD
OSFA-DL-LFS-VI NIGHTSEA Dino-Lite digital microscope add-on light head and filter sets Violet Excitation Each See above $940.00 AUD
OSFA-DL-LFS-RB NIGHTSEA Dino-Lite digital microscope add-on light head and filter sets Royal blue Excitation Each See above $940.00 AUD
OSFA-DL-LFS-CY NIGHTSEA Dino-Lite digital microscope add-on light head and filter sets Cyan Excitation Each See above $940.00 AUD
OSFA-DL-LFS-GR NIGHTSEA Dino-Lite digital microscope add-on light head and filter sets Green Excitation Each See above $940.00 AUD
OSFA-DL-LFS-RB-GO NIGHTSEA Dino-Lite digital microscope add-on light head and filter sets Royal blue Excitation, green bandpass filter only Each See above $940.00 AUD
