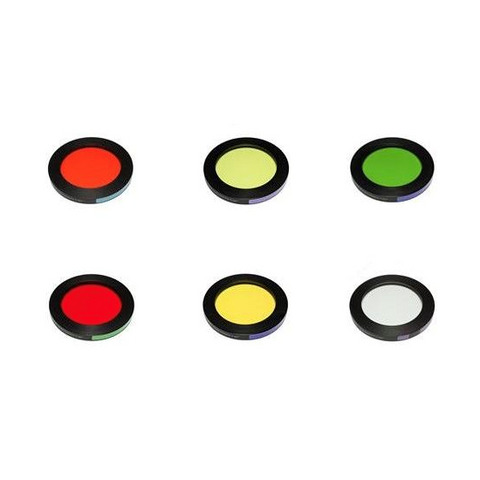

NIGHTSEA barrier filters
  • Collections

NIGHTSEA barrier filters

NightSea barrier filters - Additional combinations excitation/ emission wavelength combinations can be added NIGHTSEA Stereo Microscope Fluorescence Viewing system by purchasing individual components.Dimensions: 100 x 200mmThese two bullets summarise the rules for combining light heads and filters.For any excitation light head, you can pair it with any of the barrier filters that are normally used with a light head of a longer wavelength.For any barrier filter, you can pair it with any of the light heads that are normally used with a barrier filter of a shorter wavelength.Standard light source/filter combinations:

NightSea barrier filters - Additional combinations excitation/ emission wavelength combinations can be added NIGHTSEA Stereo Microscope Fluorescence Viewing system by purchasing individual components.

Dimensions: 100 x 200mm

These two bullets summarise the rules for combining light heads and filters.

  • For any excitation light head, you can pair it with any of the barrier filters that are normally used with a light head of a longer wavelength.
  • For any barrier filter, you can pair it with any of the light heads that are normally used with a barrier filter of a shorter wavelength.

Standard light source/filter combinations:

Designation Excitation Emission
UV – Ultraviolet 360 – 380nm 415nm longpass
VI – Violet 400 – 415nm 450nm longpass
RB – Royal Blue 440 – 460nm 500nm longpass
RB – Royal Blue 440 – 460nm 500 – 560nm bandpass
CY – Cyan 490 – 515nm 550nm longpass
GR – Green 510 – 540nm 600nm longpass

Combinations and permissible pairings*:


 Barrier Filters
Light Heads UV  VI  RB RB-GO CY GR
UV





VI





RB





CY





GR





*forbidden combinations in red

Technical Data

Updated: 04-06-2026
Code Colour Pack Size Availability Price Updated: 04-06-2026
OSFA-BF-UV Ultra violet Each No ETA $470.00 AUD
OSFA-BF-VI Violet Each No ETA $470.00 AUD
OSFA-BF-RB Royal blue Each No ETA $470.00 AUD
OSFA-BF-CY Cyan Each No ETA $470.00 AUD
OSFA-BF-GR Green Each No ETA $470.00 AUD
OSFA-BF-RB-GO Green-only Each No ETA $470.00 AUD
