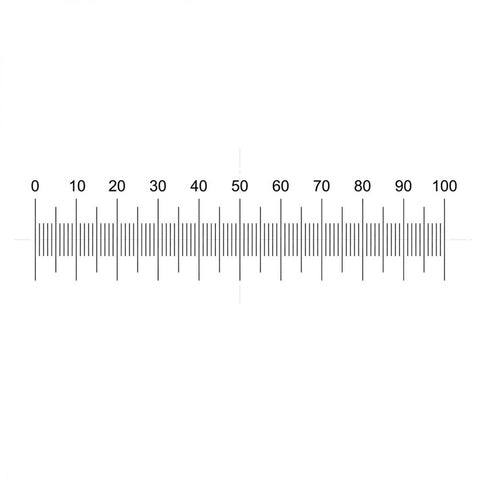

NE28 reticle scales, horizontal

Horizontal & Vertical Scales - NE28, 16 mm

These scales are used for the measuring of lengths of specimen or distances between points on a variety of different shaped objects. NE1 scale shown: This eyepiece graticule has an overall length of 10.00 mm with 100 subdivisions of 0.1 mm. When used with a x10 objective, each division will represent 10 microns on the specimen. By dividing the division of the chosen graticule by the magnification of the objective, one obtains an approximate value that each division will represent on the stage.

  • Horizontal micrometer scale.
  • 1mm long with 100 subdivisions.
  • Surface chrome image.
Code Title Size Pack Size Availability Price Updated: 20-04-2024
EMS67992-16 NE28 reticle scales, horizontal 16mm, 100 div of 0.1mm Each See above $259.00 AUD
EMS67992-19 NE28 reticle scales, horizontal 19mm, 100 div of 0.1mm Each See above $259.00 AUD
EMS67992-21 NE28 reticle scales, horizontal 21mm, 100 div of 0.1mm Each See above $259.00 AUD
