NE2 reticles, vertical 10mm

Vertical Scales - NE2

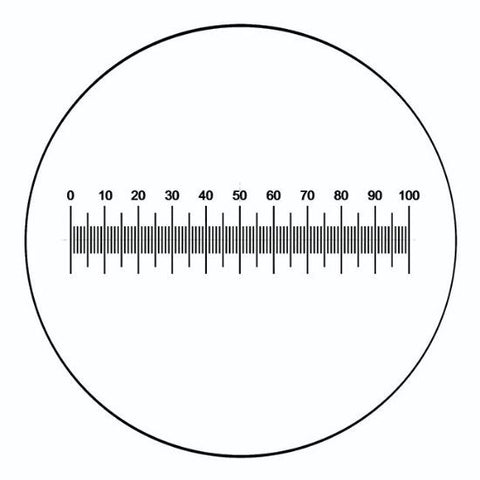

These scales are used for the measuring of lengths of specimen or distances between points on a variety of different shaped objects. This eyepiece graticule has an overall length of 10mm with 100 subdivisions of 0.1mm. When used with a x10 objective, each division will represent 10 microns on the specimen. By dividing the division of the chosen graticule by the magnification of the objective, one obtains an approximate value that each division will represent on the stage.

  • Vertical micrometer scale 10mm long with 0.1mm subdivisions.
  • Surface chrome image.
Code Title Size Pack Size Availability Price Updated: 23-05-2024
EMS68006-16 NE2 reticles, vertical 10mm 16mm Each See above $242.00 AUD
EMS68006-19 NE2 reticles, vertical 10mm 19mm Each See above $242.00 AUD
EMS68006-21 NE2 reticles, vertical 10mm 21mm Each See above $242.00 AUD
