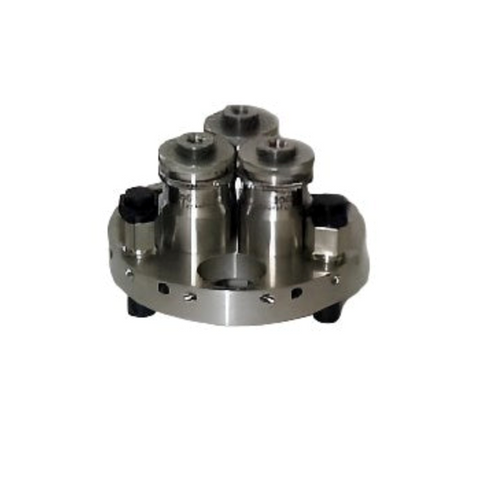

MultiLap fish otolith polishing tool, Model 195

In many materials preparation laboratories the need for high specimen throughput and precision made specimen preparation tools is a difficult bottleneck to correct. The Model 195 MultiLap is designed to grind and polish multiple specimens with precise control over each individual specimen. The fixture incorporates up to 6 separate pistons which are used for holding the specimen during preparation and controlling the amount of material to be removed. The piston assemblies allow for specimens of up to 1" diameter to be polished in 10-micron increments. The specimen mounts also provide a means for viewing the specimen in transmitted light, enhancing detection of features that require a light transparent specimen.Wear resistant Delrin plastic legs provide support and are very gentle on many types of abrasive films and media. Overall, the Model 195 is a versatile and precise instrument for performing any precision lapping processes and is an excellent addition to any specimen preparat...

In many materials preparation laboratories the need for high specimen throughput and precision made specimen preparation tools is a difficult bottleneck to correct. The Model 195 MultiLap is designed to grind and polish multiple specimens with precise control over each individual specimen. The fixture incorporates up to 6 separate pistons which are used for holding the specimen during preparation and controlling the amount of material to be removed. The piston assemblies allow for specimens of up to 1" diameter to be polished in 10-micron increments. The specimen mounts also provide a means for viewing the specimen in transmitted light, enhancing detection of features that require a light transparent specimen.Wear resistant Delrin plastic legs provide support and are very gentle on many types of abrasive films and media. Overall, the Model 195 is a versatile and precise instrument for performing any precision lapping processes and is an excellent addition to any specimen preparation lab.

Features

  • Tungsten carbide base resists wear and maintains sample planarity
  • Wide base ensures stability thereby minimising sample damage and edge rounding
  • Wear ring is replaceable, on some fixtures, which extends the life of the fixture
  • Can be mounted in the Model 920 Lapping & Polishing Machine for semi-automatic processing
  • Micrometer depth control allows precise control over sample thickness
  • Precisely crafted stainless steel construction ensures long life and high precision

Model 195 - 6 Position MultiLap Fixtures

  • Piston assembly (EMS50168-02)
  • Sample holder ring mounts (EMS50168-03)
  • Delrin foot (EMS50168-04)
  • 6-Position alignment fixture (EMS50168-10)
Code Title Type Pack Size Availability Price Updated: 13-04-2024
EMS50168-95 MultiLap fish otolith polishing tool, Model 195 MultiLap, Model 195 Each See above Quote only Quote
Quote
EMS50168-10 MultiLap fish otolith polishing tool, Model 195 Alignment fixture Each See above Quote only Quote
Quote
EMS50168-02 MultiLap fish otolith polishing tool, Model 195 Piston assembly Each See above Quote only Quote
Quote
EMS50168-03 MultiLap fish otolith polishing tool, Model 195 Sample holder ring mounts Each See above Quote only Quote
Quote
EMS50168-04 MultiLap fish otolith polishing tool, Model 195 Delrin foot Each See above Quote only Quote
Quote
