Modular blocks for EMS Dri-Baths

EMS Dri-Baths are PID microprocessor controlled with digital temperature set and easy-to-read LED display for accurate and reproducible temperature control. They can hold one, two or four interchangeable modular blocks to accommodate a variety of vessels.Modular blocks are designed to fit all EMS Dri-Baths:Anodised coating resists the harshest environments Versatile Solid anodised aluminium blocks provide maximum heat retention All blocks include thermometer well for easily measuring block temperatureAll blocks measure: 76mm W x 50mm H x 101mm DCodeTube size (mm)Number of wellsMax tube size(mm)Well...

EMS Dri-Baths are PID microprocessor controlled with digital temperature set and easy-to-read LED display for accurate and reproducible temperature control. They can hold one, two or four interchangeable modular blocks to accommodate a variety of vessels.

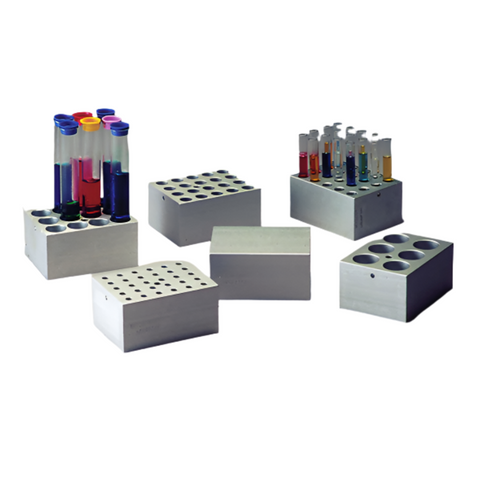

Modular blocks are designed to fit all EMS Dri-Baths:

  • Anodised coating resists the harshest environments
  • Versatile
  • Solid anodised aluminium blocks provide maximum heat retention
  • All blocks include thermometer well for easily measuring block temperature
  • All blocks measure: 76mm W x 50mm H x 101mm D
Code Tube size (mm) Number of wells Max tube size
(mm)
Well volume (ml) Well Depth
(ml)
EMS63124-01 6 30 6.5 0.62 48
EMS63124-05 12 20 12.75 4.1 48
EMS63124-07 13 20 13.75 4.5 48
EMS63124-09 15 12 15.75 6.3 48
EMS63124-17 20 12 20.75 12.2 48
EMS63124-19 25 6 25.75 19.9 48
EMS63124-26
0.5 30 - - 48
EMS63124-30
- - - - 48


Code Title Type Pack Size Availability Price Updated: 20-05-2024
EMS63124-19 Modular blocks for EMS Dri-Baths 6 x 25mm Each See above $516.00 AUD
EMS63124-09 Modular blocks for EMS Dri-Baths 12 x 15mm Each See above $497.00 AUD
EMS63124-17 Modular blocks for EMS Dri-Baths 12 x 20mm Each See above $497.00 AUD
EMS63124-05 Modular blocks for EMS Dri-Baths 20 x 12mm Each See above $497.00 AUD
EMS63124-07 Modular blocks for EMS Dri-Baths 20 x 13mm Each See above $497.00 AUD
EMS63124-26 Modular blocks for EMS Dri-Baths 30 x 0.5mm Each See above $154.00 AUD
EMS63124-01 Modular blocks for EMS Dri-Baths 30 x 6mm Each See above $497.00 AUD
EMS63124-30 Modular blocks for EMS Dri-Baths Solid block Each See above $288.00 AUD
