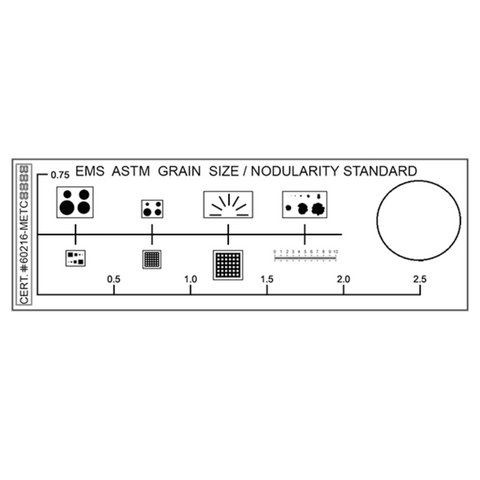

EMS stage micrometer, IAM-MET

ASTM Grain Size/Nodularity Analysis StandardBased on the IAM-1 Morphometric Image Analysis above, the IAM-MET is a multi-morphology calibration standard designed specifically for ASTM. The IAM-MET includes all plates as found in IAM-1 except for plate 4, which is pictured above. This plate contains 9 images of irregular shapes, simulating features commonly found in metallurgical applications. As required by the ASTM standard, the IAM-MET includes secondary certification of plates 1, 2 and 8.Available: Chrome on glass (G) as standard, chrome on opal glass (O) or chrome on quartz (Q) by request only as a custom.P: positive image (mostly clear or white); N: negative image (mostly opaque or black).

ASTM Grain Size/Nodularity Analysis Standard

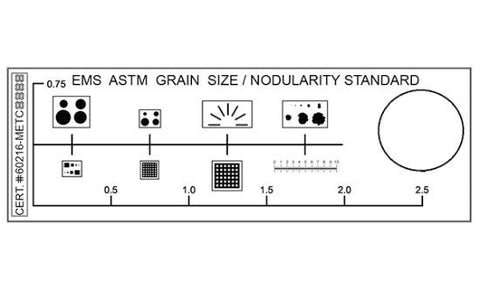

Based on the IAM-1 Morphometric Image Analysis above, the IAM-MET is a multi-morphology calibration standard designed specifically for ASTM. The IAM-MET includes all plates as found in IAM-1 except for plate 4, which is pictured above. This plate contains 9 images of irregular shapes, simulating features commonly found in metallurgical applications. As required by the ASTM standard, the IAM-MET includes secondary certification of plates 1, 2 and 8.

Available: Chrome on glass (G) as standard, chrome on opal glass (O) or chrome on quartz (Q) by request only as a custom.

P: positive image (mostly clear or white); N: negative image (mostly opaque or black).

Technical Data

Store at room temperature

Specifications:

Overall size	76.2mm x 25.4mm
Image	Chrome on glass/positive. Calibrated 32 points.

Manufactured in the USA
