miniLight

Constructed from the highest quality material and small as its name, this miniLight offers the most universal light source, handling many tasks that require a bright light but with a small foot print that fits into most locations.

Parts available:

Lamp - Available with 1 or 2W power LED in 3 models each producing 15°, 28°, and 42° light cones. CE compatible.

Gooseneck - Made from brass and is anodised black. End-to-end measures 184mm (172mm actual length)

Magnetic Base - Made from stainless steel with the magnet encased. Threaded centre for mounting the gooseneck or mounting bar. Affix force is 64N.

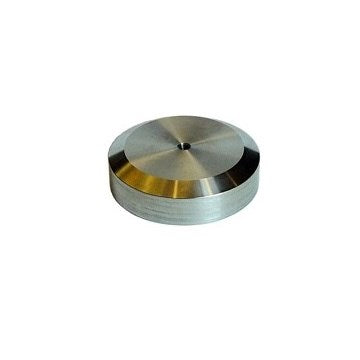

Steel Base - Heavy base, stainless steel. Threaded centre for gooseneck or mounting rod. Weight 450g. Measures: 65mm diameter x 18mm height

Mounting Rods - Made from stainless steel. Short rod to mount Lamp - Long Rod to mount to the Steel Base.

Joint - Used to connect the mounting rods together in any angle, any position so the Lamp shines the way you want. Anodised aluminium with knurled tighten screw.

Power Supply 12V

  • Input voltage 90-264VAC
  • Input frequency 47-63Hz
  • Output Voltage 12V
  • Power 8W
  • AC-Connector for EU, GB, US, AUS
  • Operating temperature 0-40°
  • Weight 135gr. (without AC-plug)
  • Dimensions 69.2 x 43.3 x 29.8mm without AC plug
  • International approval UL60950, EN60950, SAA, PSE, CE, FCC Part 15 Class B

Attention:

Never look direct in the light of the lamp, otherwise you risk to injure your eyes

Updated: 27-12-2024
Code Title Type Pack Size Availability Price Updated: 27-12-2024
EMS71665-50 miniLight replacement parts, 1W and 2W Gooseneck Each 0 in stock (?) $105.00 AUD
EMS71665-51 miniLight replacement parts, 1W and 2W Mounting rod Each 0 in stock (?) $109.00 AUD
EMS71665-52 miniLight replacement parts, 1W and 2W Joint Each 0 in stock (?) $116.00 AUD
EMS71665-55 miniLight replacement parts, 1W and 2W Magnetic base Each 0 in stock (?) $65.00 AUD
EMS71665-56 miniLight replacement parts, 1W and 2W Steel base Each 0 in stock (?) $99.00 AUD
EMS71665-60 miniLight replacement parts, 1W and 2W Power supply Each 0 in stock (?) $81.00 AUD
