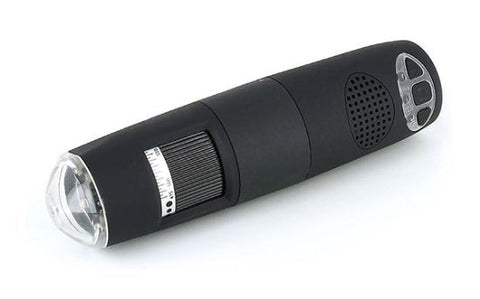

Mic-Fi Visio-tek digital WiFi microscope, high magnification

Mic-Fi Visio-tek is a line of versatile and portable imaging solutions that utilise both Wi-Fi and USB transmission. Mic-Fi Visio-tek digital microscopes and cameras can be connected to iOS and Android smartphones or tablets via the dedicated Mic-Fi Visio-tek App, as well as to Windows or Mac computers or laptops through a Wi-Fi/USB connection. Using the Mic-Fi Visio-tek free software and application, you can capture, store pictures and video, and take measurements.Mic-Fi Visio-tek digital microscopes are ideal for electronics and QC, research and scientific analysis, education, print Inspection, textile inspection, reading assistance and jewellery, collectables and watch repair. They allow WiFi inspections anywhere an image magnification is required and includes Standard, Polarised, Ultra-violet, Infra-red, and High Magnification portable scopes from 10x up to 600x.Accessories for the Mic-Fi Visio-tek digital WiFi microscopes are available.Features...

Mic-Fi Visio-tek is a line of versatile and portable imaging solutions that utilise both Wi-Fi and USB transmission. Mic-Fi Visio-tek digital microscopes and cameras can be connected to iOS and Android smartphones or tablets via the dedicated Mic-Fi Visio-tek App, as well as to Windows or Mac computers or laptops through a Wi-Fi/USB connection. Using the Mic-Fi Visio-tek free software and application, you can capture, store pictures and video, and take measurements.

Mic-Fi Visio-tek digital microscopes are ideal for electronics and QC, research and scientific analysis, education, print Inspection, textile inspection, reading assistance and jewellery, collectables and watch repair. They allow WiFi inspections anywhere an image magnification is required and includes Standard, Polarised, Ultra-violet, Infra-red, and High Magnification portable scopes from 10x up to 600x.

Accessories for the Mic-Fi Visio-tek digital WiFi microscopes are available.

Features

  • Wi-Fi
  • Portability
  • Kigh Definition Microscopy Lens
  • Windows, Mac, Android, iOS Compatible
  • Free Dedicated Basic Software and Application

Included with the Mic-Fi Visio-tek digital microscopes: Transparent cap, USB AC adapter, USB cable, quick manual, plastic stand and line calibration ruler

Specifications for High Magnification - OS92108

Magnification
500x ~ 600x
Object Distance / Focus Range  0 ~ 3mm
Light Source n. 8 adjustable White Led
Dimensions 36mm (Diameter) x 142mm (Length)
Weight 88g


Magnification Working Distance Field of View (x) Field of View (y)
500 0 0.76 0.58
530 2 0.69 0.53
550 3.2 0.63 0.48
600 0 0.60 0.45
Listed values may differ slightly. Working distances have been taken without front cap.
Contact point:
Low Cover: 560x
High Cover: 630x

General Specifications:

Operating System
Windows 7-8-10, Mac, iOS, Android
Photo and Video Resolution 1.3 mp - 1280 x 1024, 640 x 480, 320 x 240
Frame Rate 15fps @ 1280 x 1024, 30fps @ 640 x 480, 320 x 240
Wi-Fi Protocol IEEE 802.11 b/g/n standards compliant
Wi-Fi Transmission Distance up to 5m
Transmit Power 11n HT40 MCS7: +13 dBm
11b CCK: +18 dBm
11g OFDM: +15 dBm
Data Rate 802.11n: up to 150Mbps
802.11b: 1, 2, 5,5, 11Mbps
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps
Temperature ?60?C with full speed running
Frequency Range 2.400 ~ 2.4835GHz
Power Consumption Max 2.5W
Frame Rate 10 fps ~ 30fps
Li-ion Battery Continuous Working Time: Approx 2 Hours
Full Charging Time: Approx 2 Hours
Power Source DC5.0V/1A

Training manual

PDF download

Image gallery

Code Title Magnification Resolution Pack Size Availability Price Updated: 23-05-2024
OS92108 Mic-Fi Visio-tek digital WiFi microscope, high magnification 500x ~ 600x 1.3 MP Each See above $655.00 AUD
