Kapton polymide tape, thin, double-sided (EMS)
  • Collections

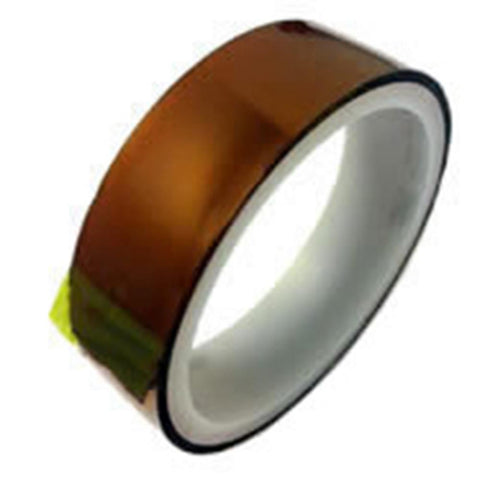

Kapton polymide tape, thin, double-sided (EMS)

This general purpose film easily bonds to difficult surfaces with silicone adhesive, and leaves little to no residue when removed. Microscopists find it ideal for holding samples or masking during deposition in vacuum systems (it is relatively low outgassing). It is also perfect for positioning samples in cryo or high temperature working conditions. There are no known organic solvents for the film. Kapton Polyimide Tape is known for its superior ability to maintain its physical properties under harsh conditions. Specifications:

This general purpose film easily bonds to difficult surfaces with silicone adhesive, and leaves little to no residue when removed. Microscopists find it ideal for holding samples or masking during deposition in vacuum systems (it is relatively low outgassing). It is also perfect for positioning samples in cryo or high temperature working conditions. There are no known organic solvents for the film. Kapton Polyimide Tape is known for its superior ability to maintain its physical properties under harsh conditions.

Specifications:

Temperature Range -269 to 400°C
Adhesive Silicone
Flammability Ratio V-0
Roll Length 32.9m
Colour Amber
Kapton Film Thickness 1 mil
Ultimate Tensile Strength 231MPa @ 23°C
134MPa @ 200°C
Ultimate Elongation 72% @ 23°C
83% @ 200°C
Density 1.42g/cc
Tensile Modulus 2.5GPa @ 23°C
2.0GPa @ 200°C
Melting Point none
Plastic Core Diameter 77mm

Kapton is a trademark of DuPont

Technical Data

Updated: 11-10-2025
Code Width Pack Size Availability Price Updated: 11-10-2025
IA035-12 12.7mm Roll/32.9m 0 in stock (?) $151.00 AUD
IA035-19 19.05mm Roll/32.9m 0 in stock (?) $211.00 AUD
IA035-25 25.4mm Roll/32.9m 0 in stock (?) $259.00 AUD
