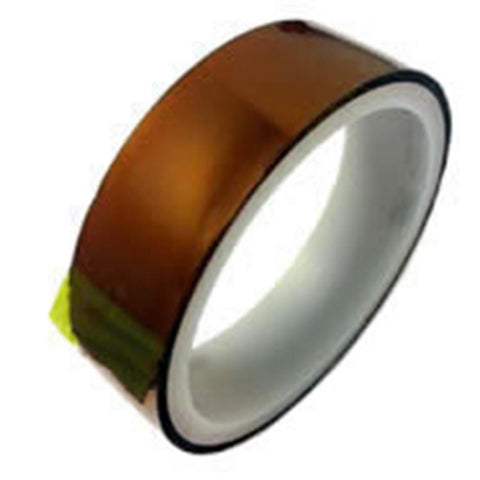

Kapton polyimide tape, thin, no liner
This general purpose film easily bonds to difficult surfaces with silicone adhesive, and leaves little to no residue when removed. Microscopists find it ideal for holding samples or masking during deposition in vacuum systems (it is relatively low outgassing). It is also perfect for positioning samples in cryo or high temperature working conditions. There are no known organic solvents for the film.  Kapton Polyimide Tape is known for its superior ability to maintain its physical properties under harsh conditions. SpecificationsTemperature Range-269 to 400°C (-452 to 752°F)AdhesiveSiliconeFlammability RatioV-0Roll Length32.9 m (36 yds)ColorAmberKapton Film Thickness1 milUltimate Tensile Strength (Mpa)231 (73°F); 134 (392°F)<...
This general purpose film easily bonds to difficult surfaces with silicone adhesive, and leaves little to no residue when removed. Microscopists find it ideal for holding samples or masking during deposition in vacuum systems (it is relatively low outgassing). It is also perfect for positioning samples in cryo or high temperature working conditions. There are no known organic solvents for the film. Â Kapton Polyimide Tape is known for its superior ability to maintain its physical properties under harsh conditions.Â
Specifications
| Temperature Range | -269 to 400°C (-452 to 752°F) |
| Adhesive | Silicone |
| Flammability Ratio | V-0 |
| Roll Length | 32.9 m (36 yds) |
| Color | Amber |
| Kapton Film Thickness | 1 mil |
| Ultimate Tensile Strength (Mpa) | 231 (73°F); 134 (392°F) |
| Ultimate Elongation (%) | 72 (73°F); 83 (392°F) |
| Density, g/cc | 1.42 |
| Tensile Modulus (GPa) | 2.5 (73°F); 2.0 (392°F) |
| Melting Point | none |
| Plastic Core Diameter | 77mm (3") |
Kapton is a trademark of DuPont?
Please choose carefully. Returns of this item are subject to approval.
| Code | Title | Width | Pack size | Availability | Price | Updated: 27-04-2024 |
|---|---|---|---|---|---|---|
| IA034-06 | Kapton polyimide tape, thin, no liner | 6.35mm (0.25in) | Roll/32.9m | See above | $50.00 AUD | |
| IA034-12 | Kapton polyimide tape, thin, no liner | 12.7mm (0.5in) | Roll/32.9m | See above | $67.00 AUD | |
| IA034-19 | Kapton polyimide tape, thin, no liner | 19.05mm (0.75in) | Roll/32.9m | See above | $91.00 AUD | |
| IA034-25 | Kapton polyimide tape, thin, no liner | 25.4mm (1in) | Roll/32.9m | See above | $107.00 AUD | |
| IA034-50 | Kapton polyimide tape, thin, no liner | 50.8mm (2in) | Roll/32.9m | See above | $193.00 AUD | |
