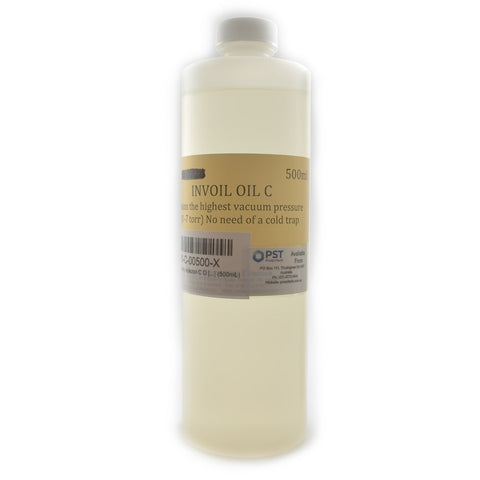

Invoil C vacuum pump oil (EMS)

Consist of esters or specially selected hydrocarbon fractions. They were developed for vapour-diffusion pump fluids:High purity, very low pressure, very stable.Pressures lower than 10-7 torr obtainableNo need for cold trap.Good pumping speed.No corrosive deposits or vapours.Physical Properties of Apiezon Oil Type C (now Invoil C)

Consist of esters or specially selected hydrocarbon fractions. They were developed for vapour-diffusion pump fluids:

  • High purity, very low pressure, very stable.
  • Pressures lower than 10-7 torr obtainable
  • No need for cold trap.
  • Good pumping speed.
  • No corrosive deposits or vapours.


Physical Properties of Apiezon Oil Type C (now Invoil C)

Diffusion Pump Oil Type C
Vapour Pressure, torr @20°C 10-7
Boiling Point,°C @ 1 torr 225
Flash Point (open cup)°F 510
Pour Point(ASTM)°F 5
Density, g/mL @ 20°C 0.875
@ 40°C 0.863
Viscosity, kinematic,cS @ 20°C 283
@ 50°C 90
@ 100°C 10.6
Coefficient of Expansion per
°C over 20-30°C (ASTM) 0.00069
Thermal Conductivity Btu/in 0.96


INVOIL C
Obtains the highest vacuum pressure (10-7 torr) of the Apiezon oils without the need of a cold trap. Suitable for most diffusion pump applications, including in electron microscopes and in vacuum coaters. This is an economic and effective substitute for Santovac 5 fluid. It should be noted that the ultimate vacuum is dependent on a suitably high backing vacuum and the out-gasing of TEM film and column components. Consequently the ultimate vacuum attained with Invoil C (Apiezon C) is very close to the theoretically much superior Santovac 5.

This product is not hazardous and does not require an MSDS.

NOTE: Formerly Apiezon C oil

Updated: 04-06-2026
Code Pack Size Availability Price Updated: 04-06-2026
M1-C-00500-X 500ml No ETA $543.00 AUD
