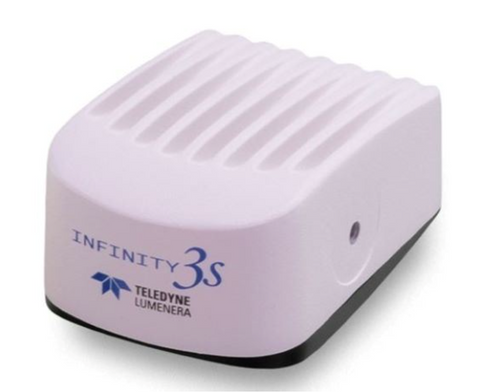

Infinity 3S-1UR microscopy cameras, ultra-sensitive

The INFINITY3S-1UR is a high-speed, ultra-sensitive research grade microscopy camera with 1.4 megapixel resolution. The camera incorporates Sony's new ICX825 CCD sensor, producing much higher dynamic range and sensitivity over the popular ICX285 sensor. The INFINITY3S-1UR has the unmatched light sensitivity needed for challenging low light applications, such as fluorescence and NIR imaging. Lumenera's high-speed USB 3.0 data interface provides maximum allowable throughput where full resolution images can be sent to a host computer at an industry leading 60 fps.HighlightsIndustry leading Sony EXview HAD ll sensor technology with 53% improvement in sensitivity over ICX285Colour or monochrome ICX825 CCD Global Shutter sensor with ?" optical format providing a resolution of 1392 x 1040 using 6.45 x 6.45 µm pixels5.9 e- read noise14-bit pixel depth for 16,384 tonal values per channel60 fps at 1.4 megapixel...

The INFINITY3S-1UR is a high-speed, ultra-sensitive research grade microscopy camera with 1.4 megapixel resolution. The camera incorporates Sony's new ICX825 CCD sensor, producing much higher dynamic range and sensitivity over the popular ICX285 sensor. The INFINITY3S-1UR has the unmatched light sensitivity needed for challenging low light applications, such as fluorescence and NIR imaging. Lumenera's high-speed USB 3.0 data interface provides maximum allowable throughput where full resolution images can be sent to a host computer at an industry leading 60 fps.

Highlights

  • Industry leading Sony EXview HAD ll sensor technology with 53% improvement in sensitivity over ICX285
  • Colour or monochrome ICX825 CCD Global Shutter sensor with ?" optical format providing a resolution of 1392 x 1040 using 6.45 x 6.45 µm pixels
  • 5.9 e- read noise
  • 14-bit pixel depth for 16,384 tonal values per channel
  • 60 fps at 1.4 megapixel (monochrome version); 45 fps at 1.4 megapixel (colour version)
  • High-speed USB 3.0 interface for plug and play installation on any computer
  • GPIO for control of peripherals and synchronisation
  • 128 MB of onboard memory for frame buffering results in reliable image delivery

Camera Spec Sheets

Adapting Cameras to your Microscope

Code Title Resolution Style Pack Size Availability Price Updated: 30-05-2024
EMS95130 Infinity 3S-1UR microscopy cameras, ultra-sensitive 1.4MP CCD colour Each See above Quote only Quote
Quote
EMS95132 Infinity 3S-1UR microscopy cameras, ultra-sensitive 1.4MP CCD monochrome Each See above Quote only Quote
Quote
