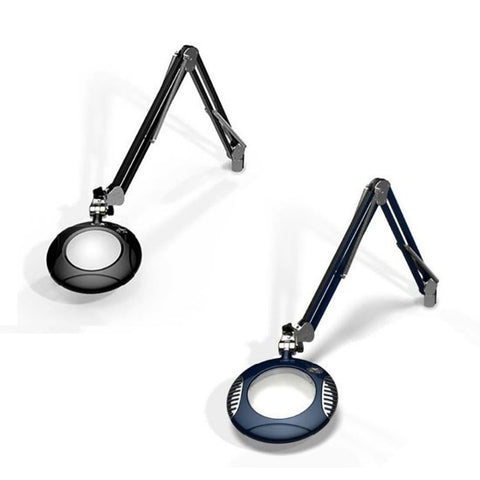

Green-Lite magnifying lights

Equipped with next generation, surface mount LEDs, these innovative designs create the new standard for illuminated magnifiers. Your investment in new technology quickly pays for itself through energy savings. Made in the USA.NEW: Combination UV/Visible Light MagnifierTwo fixtures in one!The Green-Lite Ultraviolet/Visible LED inspection lamp can be used in Ultraviolet only mode, White light only mode, or Combination mode. It is very useful for conformal coatings or dye penetrant crack inspection, gem identification, and more.This model is available with 4 diopters and your choice of screw-down base, table-edge clamp, or weighted base.Lighting FeaturesHighest lumen output in a lighted magnifierReduced glare, heat and energy consumptionMulti-angle LEDs for shadowless lighting at a full range of focal lengths and heightsUser controlled LED groups shine desired level of light exactly where requ...

Equipped with next generation, surface mount LEDs, these innovative designs create the new standard for illuminated magnifiers. Your investment in new technology quickly pays for itself through energy savings. Made in the USA.

NEW: Combination UV/Visible Light Magnifier

Two fixtures in one!

The Green-Lite Ultraviolet/Visible LED inspection lamp can be used in Ultraviolet only mode, White light only mode, or Combination mode. It is very useful for conformal coatings or dye penetrant crack inspection, gem identification, and more.

This model is available with 4 diopters and your choice of screw-down base, table-edge clamp, or weighted base.

Lighting Features

  • Highest lumen output in a lighted magnifier
  • Reduced glare, heat and energy consumption
  • Multi-angle LEDs for shadowless lighting at a full range of focal lengths and heights
  • User controlled LED groups shine desired level of light exactly where required
  • Superb dimming software via convenient, reliable membrane switch

Optical Features

  • Precision ground, optical grade glass
  • Largest lenses in the industry
  • Standard 4 diopter (2x) lens
  • Optional 5 diopter (2.25x) lens available

Electrical Features

  • Low voltage (15-24V) power supplies are auto-switchable with worldwide approvals
  • Plug in around the world by simply switching the end power cord
  • Energy Star compliant (each unit uses 8 watts maximum)
  • Auto shut off at 4 hour intervals to prevent energy waste while users are away

Mechanical Features

  • High quality die cast aluminium shades and all steel arm components for ESD safety
  • Patented "Elite" arms are slim but have the greatest holding power of any arm of this type in the world
  • 43in reach
  • Virtually "maintenance zero"

For additional accessories available for All Magnifiers see

EMS68358-62, EMS68358-64 and EMS68358-66

Code Green-Lite LED Shape Mag Diopter Mounting Style
EMS68194-20 127mm
6 LED
Round 2x 4 Table Clamp
EMS68194-21 127mm
6 LED
Round 2.25x 5 Table Clamp
EMS68194-22 127mm
6 LED
Round 2x 4 Screw Base
EMS68194-23 127mm
6 LED
Round 2.25x 5 Screw Base
EMS68194-10 152.4mm  Round 2x 4 Table Clamp
EMS68194-10A 152.4mm
Round 2.25x 5 Table Clamp
EMS68194-11 152.4mm
Round 2x 4 Screw Base
EMS68194-11A 152.4mm
Round 2.25x 5 Screw Base
EMS68194-12 190.5mm  Round 2x 4 Screw Base
EMS68194-12A 190.5mm
Round 2.25x 5 Screw Base
EMS68194-13 190.5mm
Round 2x 4 Table Clamp
EMS68194-13A 190.5mm
Round 2.25x 5 Table Clamp
EMS68194-19 190.5mm
Round 2x 4 Weight. Base
EMS68194-36 190.5mm
Round 2.25x 5 Weight. Base
EMS68194-37 177.8 x 133mm
UV+White
Rectangular 2x 4 Table Clamp
EMS68194-38 177.8 x 133mm
UV+White
Rectangular
2x 4 Screw Base
EMS68194-39 177.8 x 133mm
UV+White
Rectangular
2x 4 Weight. Base
EMS68194-14 177.8 x 133mm  Rectangular
2x 4 Screw Base
EMS68194-14A 177.8 x 133mm
Rectangular
2.25x 5 Screw Base
EMS68194-15 177.8 x 133mm
Rectangular
2x 4 Table Clamp
EMS68194-15A 177.8 x 133mm
Rectangular
2.25x 5 Table Clamp
EMS68194-17 177.8 x 133mm
Rectangular
2x 4 Weight. Base
EMS68194-17A 177.8 x 133mm
Rectangular
2.25x 5 Weight. Base


Updated: 07-11-2024
Code Title Style Mount Type Pack Size Availability Price Updated: 07-11-2024
EMS68194-20 Green-Lite magnifying lights 6 LED, 2X Table clamp Each 0 in stock (?) $960.00 AUD
EMS68194-21 Green-Lite magnifying lights 6 LED, 2.25X Table clamp Each 0 in stock (?) $960.00 AUD
EMS68194-22 Green-Lite magnifying lights 6 LED, 2X Screw base Each 0 in stock (?) $960.00 AUD
EMS68194-23 Green-Lite magnifying lights 6 LED, 2.25X Screw base Each 0 in stock (?) $960.00 AUD
EMS68194-10 Green-Lite magnifying lights 152.4mm, 2X Table clamp Each 0 in stock (?) $1,116.00 AUD
EMS68194-10A Green-Lite magnifying lights 152.4mm, 2.25X Table clamp Each 0 in stock (?) $1,175.00 AUD
EMS68194-11 Green-Lite magnifying lights 152.4mm, 2X Screw base Each 0 in stock (?) $1,163.00 AUD
EMS68194-11A Green-Lite magnifying lights 152.4mm, 2.25X Screw base Each 0 in stock (?) $1,224.00 AUD
EMS68194-12 Green-Lite magnifying lights 190.5mm, 2X Screw base Each 0 in stock (?) $1,294.00 AUD
EMS68194-12A Green-Lite magnifying lights 190.5mm, 2.25X Screw base Each 0 in stock (?) $1,371.00 AUD
EMS68194-13 Green-Lite magnifying lights 190.5mm, 2X Table clamp Each 0 in stock (?) $1,310.00 AUD
EMS68194-13A Green-Lite magnifying lights 190.5mm, 2.25X Table clamp Each 0 in stock (?) $1,371.00 AUD
EMS68194-19 Green-Lite magnifying lights 190.5mm, 2X Weight base Each 0 in stock (?) $1,591.00 AUD
EMS68194-36 Green-Lite magnifying lights 190.5mm, 2.25X Weight base Each 0 in stock (?) $1,630.00 AUD
EMS68194-37 Green-Lite magnifying lights 177.8 x 133mm, 2.25X, UV+ White Table clamp Each 0 in stock (?) $1,591.00 AUD
EMS68194-38 Green-Lite magnifying lights 177.8 x 133mm, 2.25X, UV+ White Screw base Each 0 in stock (?) $1,591.00 AUD
EMS68194-39 Green-Lite magnifying lights 177.8 x 133mm, 2.25X, UV+ White Weight base Each 0 in stock (?) $1,649.00 AUD
EMS68194-14 Green-Lite magnifying lights 177.8 x 133mm, 2X Screw base Each 0 in stock (?) $1,330.00 AUD
EMS68194-14A Green-Lite magnifying lights 177.8 x 133mm, 2.25X Screw base Each 0 in stock (?) $1,390.00 AUD
EMS68194-15 Green-Lite magnifying lights 177.8 x 133mm, 2X Table clamp Each 0 in stock (?) $1,330.00 AUD
EMS68194-15A Green-Lite magnifying lights 177.8 x 133mm, 2.25X Table clamp Each 0 in stock (?) $1,390.00 AUD
EMS68194-17 Green-Lite magnifying lights 177.8 x 133mm, 2X Weight base Each 0 in stock (?) $1,591.00 AUD
EMS68194-17A Green-Lite magnifying lights 177.8 x 133mm, 2.25X Weight base Each 0 in stock (?) $1,649.00 AUD
