Gilder grids, thin hex mesh

Gilder Thin Bar Hexagonal Mesh Grids3.05mm diameter, 20.3um thicknessMaterial: Copper(Cu), Nickel(Ni)Thin Bar Grids have been developed using a new technology to produce ultra-fine grids with thinner cross bars than regular grids. The result is equally firm specimen support, but with 40% more open area for viewing maximum specimen surface area.  Technical Data umTypeProductPitchHoleBar200 meshEMST200H-Cu

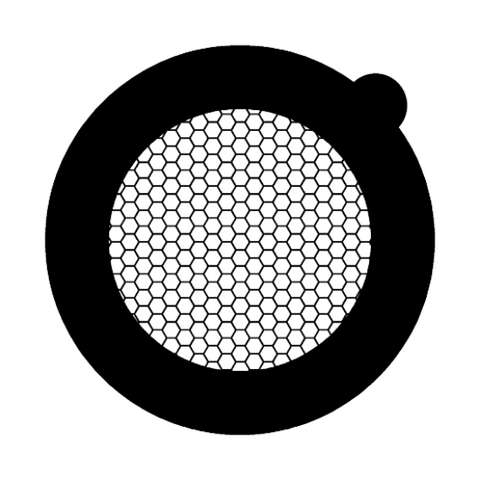

Gilder Thin Bar Hexagonal Mesh Grids

3.05mm diameter, 20.3um thickness
Material: Copper(Cu), Nickel(Ni)

Thin Bar Grids have been developed using a new technology to produce ultra-fine grids with thinner cross bars than regular grids. The result is equally firm specimen support, but with 40% more open area for viewing maximum specimen surface area.

    Technical Data um
Type Product Pitch Hole Bar
200 mesh EMST200H-Cu 125 113 12
  EMST200H-Ni 125 113 12
300 mesh EMST300H-Cu 83 73 10
  EMST300H-Ni 83 73 10
400 mesh EMST400H-Cu 62 54 8
  EMST400H-Ni 62 54 8
600 mesh EMST600H-Cu 37 29 8
  EMST600H-Ni 37 29 8
Code Title Material Mesh Size Pack Size Availability Price Updated: 23-04-2024
EMST200H-CU Gilder grids, thin hex mesh Copper 200 mesh Pack/100 See above $100.00 AUD
EMST200H-NI Gilder grids, thin hex mesh Nickel 200 mesh Pack/100 See above $116.00 AUD
EMST300H-CU Gilder grids, thin hex mesh Copper 300 mesh Pack/100 See above $116.00 AUD
EMST300H-NI Gilder grids, thin hex mesh Nickel 300 mesh Pack/100 See above $131.00 AUD
EMST400H-CU Gilder grids, thin hex mesh Copper 400 mesh Pack/100 See above $131.00 AUD
EMST400H-NI Gilder grids, thin hex mesh Nickel 400 mesh Pack/100 See above $150.00 AUD
EMST600H-CU Gilder grids, thin hex mesh Copper 600 mesh Pack/100 See above $143.00 AUD
EMST600H-NI Gilder grids, thin hex mesh Nickel 600 mesh Pack/100 See above $169.00 AUD
