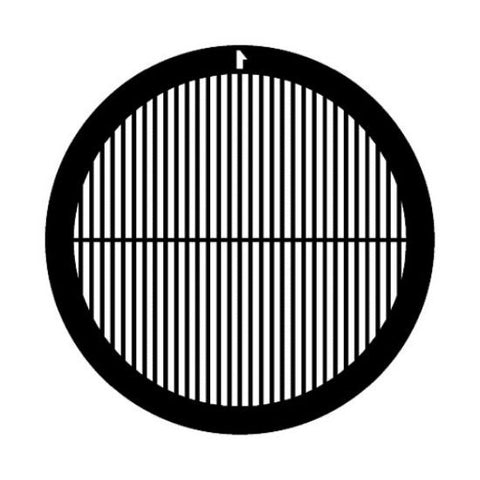

Gilder grids, parallel lines

Gilder Parallel Bar Grids3.05mm diameter, 18um thicknessMaterial: Copper (Cu), Nickel (Ni), Gold (Au)GVPB Parallel Bar GridsThis new grid provides four levels of parallel bar specimen support. Quadrants are separated by crenelated bars. Larger areas may be viewed at lower magnification depending on the appropriate specimen thickness.Grid Specifications, Type GVPBQuadrant1234Lines/Inch~ 100~ 200~ 300~ 400Pitch (± 0.5 µ)~ 250um~ 120um~ 83um~ 62umBar Width~ 65um~ 45um~ 40um~ 35umHole Width~ 185um~ 80um~ 43um~ 27um

Gilder Parallel Bar Grids

3.05mm diameter, 18um thickness
Material: Copper (Cu), Nickel (Ni), Gold (Au)

GVPB Parallel Bar Grids

This new grid provides four levels of parallel bar specimen support. Quadrants are separated by crenelated bars. Larger areas may be viewed at lower magnification depending on the appropriate specimen thickness.

Grid Specifications, Type GVPB

Quadrant 1 2 3 4
Lines/Inch ~ 100 ~ 200 ~ 300 ~ 400
Pitch (± 0.5 µ) ~ 250um ~ 120um ~ 83um ~ 62um
Bar Width ~ 65um ~ 45um ~ 40um ~ 35um
Hole Width ~ 185um ~ 80um ~ 43um ~ 27um


    Technical Data um
Type Product Pitch Hole Bar
G50P EMSG50P-Cu 500 416 84
  EMSG50P-Ni 500 416 84
  EMSG50P-Au 500 416 84
G50PB EMSG50PB-Cu 500 416 84
  EMSG50PB-Ni 500 416 84
  EMSG50PB-Au 500 416 84
G75P EMSG75P-Cu 340 270 70
  EMSG75P-Ni 340 270 70
  EMSG75P-Au 340 270 70
G75PB EMSG75PB-Cu 340 270 70
  EMSG75PB-Ni 340 270 70
  EMSG75PB-Au 340 270 70
G100P EMSG100P-Cu 250 185 65
  EMSG100P-Ni 250 185 65
  EMSG100P-Au 250 185 65
G100PB EMSG100PB-Cu 250 185 65
  EMSG100PB-Ni 250 185 65
  EMSG100PB-Au 250 185 65
G150P EMSG150P-Cu 165 115 50
  EMSG150P-Ni 165 115 50
  EMSG150P-Au 165 115 50
G150PB EMSG150PB-Cu 165 115 50
  EMSG150PB-Ni 165 115 50
  EMSG150PB-Au 165 115 50
G200P EMSG200P-Cu 125 80 45
  EMSG200P-Ni 125 80 45
  EMSG200P-Au 125 80 45
G200PB EMSG200PB-Cu 125 80 45
  EMSG200PB-Ni 125 80 45
  EMSG200PB-Au 125 80 45
G300P EMSG300P-Cu 83 48 35
  EMSG300P-Ni 83 48 35
  EMSG300P-Au 83 48 35
G300PB EMSG300PB-Cu 83 48 35
  EMSG300PB-Ni 83 48 35
  EMSG300PB-Au 83 48 35
G400P EMSG400P-Cu 62 22 40
  EMSG400P-Ni 62 22 40
  EMSG400P-Au 62 22 40
G400PB EMSG400PB-Cu 62 22 40
  EMSG400PB-Ni 62 22 40
  EMSG400PB-Au­ 62 22 40
Code Title Material Mesh Size Pack Size Availability Price Updated: 20-04-2024
EMSG100P-AU Gilder grids, parallel lines Gold 100 mesh Pack/50 See above $143.00 AUD
EMSG100P-CU Gilder grids, parallel lines Copper 100 mesh Pack/100 See above $65.00 AUD
EMSG100P-NI Gilder grids, parallel lines Nickel 100 mesh Pack/100 See above $85.00 AUD
EMSG150P-AU Gilder grids, parallel lines Gold 150 mesh Pack/50 See above $143.00 AUD
EMSG150P-CU Gilder grids, parallel lines Copper 150 mesh Pack/100 See above $69.00 AUD
EMSG150P-NI Gilder grids, parallel lines Nickel 150 mesh Pack/100 See above $90.00 AUD
EMSG200P-AU Gilder grids, parallel lines Gold 200 mesh Pack/50 See above $143.00 AUD
EMSG200P-CU Gilder grids, parallel lines Copper 200 mesh Pack/100 See above $69.00 AUD
EMSG200P-NI Gilder grids, parallel lines Nickel 200 mesh Pack/100 See above $90.00 AUD
EMSG300P-AU Gilder grids, parallel lines Gold 300 mesh Pack/50 See above $148.00 AUD
EMSG300P-CU Gilder grids, parallel lines Copper 300 mesh Pack/100 See above $69.00 AUD
EMSG300P-NI Gilder grids, parallel lines Nickel 300 mesh Pack/100 See above $88.00 AUD
EMSG400P-AU Gilder grids, parallel lines Gold 400 mesh Pack/50 See above $150.00 AUD
EMSG400P-CU Gilder grids, parallel lines Copper 400 mesh Pack/100 See above $70.00 AUD
EMSG400P-NI Gilder grids, parallel lines Nickel 400 mesh Pack/100 See above $90.00 AUD
EMSG50P-AU Gilder grids, parallel lines Gold 50 mesh Pack/50 See above $150.00 AUD
EMSG50P-CU Gilder grids, parallel lines Copper 50 mesh Pack/100 See above $61.00 AUD
EMSG50P-NI Gilder grids, parallel lines Nickel 50 mesh Pack/100 See above $85.00 AUD
EMSG75P-AU Gilder grids, parallel lines Gold 75 mesh Pack/50 See above $150.00 AUD
EMSG75P-CU Gilder grids, parallel lines Copper 75 mesh Pack/100 See above $63.00 AUD
EMSG75P-NI Gilder grids, parallel lines Nickel 75 mesh Pack/100 See above $85.00 AUD
EMSG50PB-CU Gilder grids, parallel lines Copper 50 mesh, divider bar Pack/100 See above $61.00 AUD
EMSG50PB-NI Gilder grids, parallel lines Nickel 50 mesh, divider bar Pack/100 See above $85.00 AUD
EMSG50PB-AU Gilder grids, parallel lines Gold 50 mesh, divider bar Pack/50 See above $150.00 AUD
EMSG75PB-CU Gilder grids, parallel lines Copper 75 mesh, divider bar Pack/100 See above $61.00 AUD
EMSG75PB-NI Gilder grids, parallel lines Nickel 75 mesh, divider bar Pack/100 See above $85.00 AUD
EMSG75PB-AU Gilder grids, parallel lines Gold 75 mesh, divider bar Pack/50 See above $150.00 AUD
EMSG100PB-CU Gilder grids, parallel lines Copper 100 mesh, divider bar Pack/100 See above $65.00 AUD
EMSG100PB-NI Gilder grids, parallel lines Nickel 100 mesh, divider bar Pack/100 See above $83.00 AUD
EMSG100PB-AU Gilder grids, parallel lines Gold 100 mesh, divider bar Pack/50 See above $143.00 AUD
EMSG150PB-CU Gilder grids, parallel lines Copper 150 mesh, divider bar Pack/100 See above $69.00 AUD
EMSG150PB-NI Gilder grids, parallel lines Nickel 150 mesh, divider bar Pack/100 See above $90.00 AUD
EMSG150PB-AU Gilder grids, parallel lines Gold 150 mesh, divider bar Pack/50 See above $143.00 AUD
EMSG200PB-CU Gilder grids, parallel lines Copper 200 mesh, divider bar Pack/100 See above $69.00 AUD
EMSG200PB-NI Gilder grids, parallel lines Nickel 200 mesh, divider bar Pack/100 See above $90.00 AUD
EMSG200PB-AU Gilder grids, parallel lines Gold 200 mesh, divider bar Pack/100 See above $143.00 AUD
EMSG300PB-CU Gilder grids, parallel lines Copper 300 mesh, divider bar Pack/100 See above $69.00 AUD
EMSG300PB-NI Gilder grids, parallel lines Nickel 300 mesh, divider bar Pack/100 See above $88.00 AUD
EMSG300PB-AU Gilder grids, parallel lines Gold 300 mesh, divider bar Pack/50 See above $148.00 AUD
EMSG400PB-CU Gilder grids, parallel lines Copper 400 mesh, divider bar Pack/100 See above $70.00 AUD
EMSG400PB-NI Gilder grids, parallel lines Nickel 400 mesh, divider bar Pack/100 See above $90.00 AUD
EMSG400PB-AU Gilder grids, parallel lines Gold 400 mesh, divider bar Pack/50 See above $150.00 AUD
