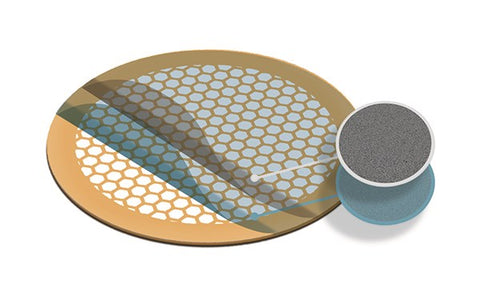

Formvar on carbon film coated grids, thin hex mesh, extra thick

Support Film on grids has become a main product line for us since the demand for high quality coated grids has increased. To make your microscopy work easier and to save you a great deal of time we offer you a complete line. All of our coated grids are optically checked followed by batch testing in the EM. Packed in grid storage box. All the grids below (except for the Beryllium Support Films) are also available with the following options:Molybdenum grids in place of Au, Cu, or NiAs Silicone freeWith ultra-thin thickness (thickness can be requested)Extra thick thicknessNOTE: All of our film is laid on the shiny side of the grid.Formvar/Carbon Film:A formvar coated grid, stabilised with evaporated carbon film. This type of coating is excellent for specimen support, especially for ultrathin sections. The thickness range is as follows:Standard Option A: 10nm Formvar and 1nm Car...

Support Film on grids has become a main product line for us since the demand for high quality coated grids has increased. To make your microscopy work easier and to save you a great deal of time we offer you a complete line. All of our coated grids are optically checked followed by batch testing in the EM. Packed in grid storage box. All the grids below (except for the Beryllium Support Films) are also available with the following options:

  • Molybdenum grids in place of Au, Cu, or Ni
  • As Silicone free
  • With ultra-thin thickness (thickness can be requested)
  • Extra thick thickness

NOTE: All of our film is laid on the shiny side of the grid.

Formvar/Carbon Film:

A formvar coated grid, stabilised with evaporated carbon film. This type of coating is excellent for specimen support, especially for ultrathin sections. The thickness range is as follows:

Standard Option A: 10nm Formvar and 1nm Carbon
Standard Option B (SB): 10nm Formvar and 3-4nm Carbon
Standard Option C (SC): 10nm Formvar and 20-30nm Carbon
Ultrathin Option A (UA): 5-6nm Formvar and 1nm Carbon
Ultrathin Option B (UB): 5-6nm Formvar and 3-4nm Carbon
Ultrathin Option C (UC): 5-6nm Formvar and 20-30nm Carbon
Thick Option A (TA): 15-20nm Formvar and 1nm Carbon
Thick Option B (TB): 15-20nm Formvar and 3-4nm Carbon
Thick Option C (TC): 15-20nm Formvar and 20-30nm Carbon
Extra Thick Option A (EA): 25-50nm Formvar and 1nm Carbon
Extra Thick Option B (EB): 25-50nm Formvar and 3-4nm Carbon
Extra Thick Option C (EC): 25-50nm Formvar and 20-30nm Carbon

Code Title Material Mesh Size Pack Size Availability Price Updated: 13-10-2024
GHFCT200CU-ETA Formvar on carbon film coated grids, thin hex mesh, extra thick Copper 200 mesh, A Pack/50 See above $257.00 AUD
GHFCT200CU-ETB Formvar on carbon film coated grids, thin hex mesh, extra thick Copper 200 mesh, B Pack/50 See above $257.00 AUD
GHFCT200CU-ETC Formvar on carbon film coated grids, thin hex mesh, extra thick Copper 200 mesh, C Pack/50 See above $257.00 AUD
GHFCT200NI-ETA Formvar on carbon film coated grids, thin hex mesh, extra thick Nickel 200 mesh, A Pack/50 See above $277.00 AUD
GHFCT200NI-ETB Formvar on carbon film coated grids, thin hex mesh, extra thick Nickel 200 mesh, B Pack/50 See above $277.00 AUD
GHFCT200NI-ETC Formvar on carbon film coated grids, thin hex mesh, extra thick Nickel 200 mesh, C Pack/50 See above $277.00 AUD
GHFCT200AU-ETA Formvar on carbon film coated grids, thin hex mesh, extra thick Gold 200 mesh, A Pack/50 See above $319.00 AUD
GHFCT200AU-ETB Formvar on carbon film coated grids, thin hex mesh, extra thick Gold 200 mesh, B Pack/50 See above $319.00 AUD
GHFCT200AU-ETC Formvar on carbon film coated grids, thin hex mesh, extra thick Gold 200 mesh, C Pack/50 See above $319.00 AUD
GHFCT300CU-ETA Formvar on carbon film coated grids, thin hex mesh, extra thick Copper 300 mesh, A Pack/50 See above $247.00 AUD
GHFCT300CU-ETB Formvar on carbon film coated grids, thin hex mesh, extra thick Copper 300 mesh, B Pack/50 See above $247.00 AUD
GHFCT300CU-ETC Formvar on carbon film coated grids, thin hex mesh, extra thick Copper 300 mesh, C Pack/50 See above $247.00 AUD
GHFCT300NI-ETA Formvar on carbon film coated grids, thin hex mesh, extra thick Nickel 300 mesh, A Pack/50 See above $277.00 AUD
GHFCT300NI-ETB Formvar on carbon film coated grids, thin hex mesh, extra thick Nickel 300 mesh, B Pack/50 See above $277.00 AUD
GHFCT300NI-ETC Formvar on carbon film coated grids, thin hex mesh, extra thick Nickel 300 mesh, C Pack/50 See above $277.00 AUD
GHFCT300AU-ETA Formvar on carbon film coated grids, thin hex mesh, extra thick Gold 300 mesh, A Pack/50 See above $319.00 AUD
GHFCT300AU-ETB Formvar on carbon film coated grids, thin hex mesh, extra thick Gold 300 mesh, B Pack/50 See above $319.00 AUD
GHFCT300AU-ETC Formvar on carbon film coated grids, thin hex mesh, extra thick Gold 300 mesh, C Pack/50 See above $319.00 AUD
GHFCT400CU-ETA Formvar on carbon film coated grids, thin hex mesh, extra thick Copper 400 mesh, A Pack/50 See above $247.00 AUD
GHFCT400CU-ETB Formvar on carbon film coated grids, thin hex mesh, extra thick Copper 400 mesh, B Pack/50 See above $247.00 AUD
GHFCT400CU-ETC Formvar on carbon film coated grids, thin hex mesh, extra thick Copper 400 mesh, C Pack/50 See above $247.00 AUD
GHFCT400NI-ETA Formvar on carbon film coated grids, thin hex mesh, extra thick Nickel 400 mesh, A Pack/50 See above $277.00 AUD
GHFCT400NI-ETB Formvar on carbon film coated grids, thin hex mesh, extra thick Nickel 400 mesh, B Pack/50 See above $277.00 AUD
GHFCT400NI-ETC Formvar on carbon film coated grids, thin hex mesh, extra thick Nickel 400 mesh, C Pack/50 See above $277.00 AUD
GHFCT400AU-ETA Formvar on carbon film coated grids, thin hex mesh, extra thick Gold 400 mesh, A Pack/50 See above $319.00 AUD
GHFCT400AU-ETB Formvar on carbon film coated grids, thin hex mesh, extra thick Gold 400 mesh, B Pack/50 See above $319.00 AUD
GHFCT400AU-ETC Formvar on carbon film coated grids, thin hex mesh, extra thick Gold 400 mesh, C Pack/50 See above $319.00 AUD
GHFCT600CU-ETA Formvar on carbon film coated grids, thin hex mesh, extra thick Copper 600 mesh, A Pack/50 See above $247.00 AUD
GHFCT600CU-ETB Formvar on carbon film coated grids, thin hex mesh, extra thick Copper 600 mesh, B Pack/50 See above $247.00 AUD
GHFCT600CU-ETC Formvar on carbon film coated grids, thin hex mesh, extra thick Copper 600 mesh, C Pack/50 See above $247.00 AUD
GHFCT600NI-ETA Formvar on carbon film coated grids, thin hex mesh, extra thick Nickel 600 mesh, A Pack/50 See above $277.00 AUD
GHFCT600NI-ETB Formvar on carbon film coated grids, thin hex mesh, extra thick Nickel 600 mesh, B Pack/50 See above $277.00 AUD
GHFCT600NI-ETC Formvar on carbon film coated grids, thin hex mesh, extra thick Nickel 600 mesh, C Pack/50 See above $277.00 AUD
GHFCT600AU-ETA Formvar on carbon film coated grids, thin hex mesh, extra thick Gold 600 mesh, A Pack/50 See above $319.00 AUD
GHFCT600AU-ETB Formvar on carbon film coated grids, thin hex mesh, extra thick Gold 600 mesh, B Pack/50 See above $319.00 AUD
GHFCT600AU-ETC Formvar on carbon film coated grids, thin hex mesh, extra thick Gold 600 mesh, C Pack/50 See above $319.00 AUD
