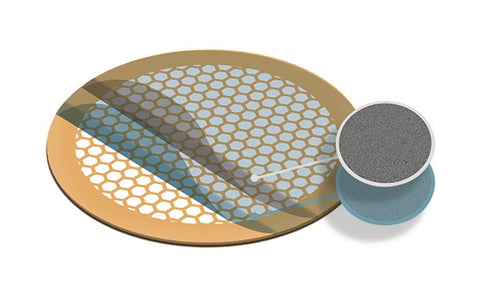

Formvar on carbon film coated grids, hex mesh

Formvar + Carbon Film on Hexagonal Mesh GridsSupport Film on grids has become a main product line for us since the demand for high quality coated grids has increased. To make your microscopy work easier and to save you a great deal of time we offer you a complete line. All of our coated grids are optically checked followed by batch testing in the EM. Packed in grid storage box. All the grids below (except for the Beryllium Support Films) are also available with the following options:Molybdenum grids in place of Au, Cu, or NiAs Silicone freeWith ultra-thin thickness (thickness can be requested)Extra thick thicknessNOTE: All of our film is laid on the shiny side of the grid.Formvar/Carbon Film:A formvar coated grid, stabilised with evaporated carbon film. This type of coating is excellent for specimen support, especially for ultra thin sections. The thickness ...

Formvar + Carbon Film on Hexagonal Mesh Grids

Support Film on grids has become a main product line for us since the demand for high quality coated grids has increased. To make your microscopy work easier and to save you a great deal of time we offer you a complete line. All of our coated grids are optically checked followed by batch testing in the EM. Packed in grid storage box. All the grids below (except for the Beryllium Support Films) are also available with the following options:

  • Molybdenum grids in place of Au, Cu, or Ni
  • As Silicone free
  • With ultra-thin thickness (thickness can be requested)
  • Extra thick thickness

NOTE: All of our film is laid on the shiny side of the grid.

Formvar/Carbon Film:

A formvar coated grid, stabilised with evaporated carbon film. This type of coating is excellent for specimen support, especially for ultra thin sections. The thickness range is as follows:

Standard Option A: 10nm Formvar and 1nm Carbon
Standard Option B (SB): 10nm Formvar and 3-4nm Carbon
Standard Option C (SC): 10nm Formvar and 20-30nm Carbon
Ultra-Thin Option A (UA): 5-6nm Formvar and 1nm Carbon
Ultra-Thin Option B (UB): 5-6nm Formvar and 3-4nm Carbon
Ultra-Thin Option C (UC): 5-6nm Formvar and 20-30nm Carbon
Thick Option A (TA): 15-20nm Formvar and 1nm Carbon
Thick Option B (TB): 15-20nm Formvar and 3-4nm Carbon
Thick Option C (TC): 15-20nm Formvar and 20-30nm Carbon
Extra Thick Option A (EA): 25-50nm Formvar and 1nm Carbon
Extra Thick Option B (EB): 25-50nm Formvar and 3-4nm Carbon
Extra Thick Option C (EC): 25-50nm Formvar and 20-30nm Carbon

Technical Tips

Picking up of Carbon Film
Reaction of Ni and Cu Grids

Code Title Material Mesh Size Pack Size Availability Price Updated: 16-04-2024
GHFC100AU-SA Formvar on carbon film coated grids, hex mesh Gold 100 mesh, A Pack/50 See above $264.00 AUD
GHFC100AU-SA25 Formvar on carbon film coated grids, hex mesh Gold 100 mesh, A Pack/25 See above $154.00 AUD
GHFC100AU-SB Formvar on carbon film coated grids, hex mesh Gold 100 mesh, B Pack/50 See above $258.00 AUD
GHFC100AU-SC Formvar on carbon film coated grids, hex mesh Gold 100 mesh, C Pack/50 See above $258.00 AUD
GHFC100CU-SA Formvar on carbon film coated grids, hex mesh Copper 100 mesh, A Pack/50 See above $152.00 AUD
GHFC100CU-SA25 Formvar on carbon film coated grids, hex mesh Copper 100 mesh, A Pack/25 See above $97.00 AUD
GHFC100CU-SB Formvar on carbon film coated grids, hex mesh Copper 100 mesh, B Pack/50 See above $194.00 AUD
GHFC100CU-SC Formvar on carbon film coated grids, hex mesh Copper 100 mesh, C Pack/50 See above $194.00 AUD
GHFC100NI-SA Formvar on carbon film coated grids, hex mesh Nickel 100 mesh, A Pack/50 See above $175.00 AUD
GHFC100NI-SA25 Formvar on carbon film coated grids, hex mesh Nickel 100 mesh, A Pack/25 See above $111.00 AUD
GHFC100NI-SB Formvar on carbon film coated grids, hex mesh Nickel 100 mesh, B Pack/50 See above $201.00 AUD
GHFC100NI-SC Formvar on carbon film coated grids, hex mesh Nickel 100 mesh, C Pack/50 See above $201.00 AUD
GHFC200AU-SA Formvar on carbon film coated grids, hex mesh Gold 200 mesh, A Pack/50 See above $246.00 AUD
GHFC200AU-SA25 Formvar on carbon film coated grids, hex mesh Gold 200 mesh, A Pack/25 See above $145.00 AUD
GHFC200AU-SB Formvar on carbon film coated grids, hex mesh Gold 200 mesh, B Pack/50 See above $246.00 AUD
GHFC200AU-SC Formvar on carbon film coated grids, hex mesh Gold 200 mesh, C Pack/50 See above $246.00 AUD
GHFC200CU-SA Formvar on carbon film coated grids, hex mesh Copper 200 mesh, A Pack/50 See above $154.00 AUD
GHFC200CU-SA25 Formvar on carbon film coated grids, hex mesh Copper 200 mesh, A Pack/25 See above $94.00 AUD
GHFC200CU-SB Formvar on carbon film coated grids, hex mesh Copper 200 mesh, B Pack/50 See above $156.00 AUD
GHFC200CU-SC Formvar on carbon film coated grids, hex mesh Copper 200 mesh, C Pack/50 See above $156.00 AUD
GHFC200NI-SA Formvar on carbon film coated grids, hex mesh Nickel 200 mesh, A Pack/50 See above $175.00 AUD
GHFC200NI-SA25 Formvar on carbon film coated grids, hex mesh Nickel 200 mesh, A Pack/25 See above $111.00 AUD
GHFC200NI-SB Formvar on carbon film coated grids, hex mesh Nickel 200 mesh, B Pack/50 See above $201.00 AUD
GHFC200NI-SC Formvar on carbon film coated grids, hex mesh Nickel 200 mesh, C Pack/50 See above $201.00 AUD
GHFC300AU-SA Formvar on carbon film coated grids, hex mesh Gold 300 mesh, A Pack/50 See above $246.00 AUD
GHFC300AU-SA25 Formvar on carbon film coated grids, hex mesh Gold 300 mesh, A Pack/25 See above $145.00 AUD
GHFC300AU-SB Formvar on carbon film coated grids, hex mesh Gold 300 mesh, B Pack/50 See above $246.00 AUD
GHFC300AU-SC Formvar on carbon film coated grids, hex mesh Gold 300 mesh, C Pack/50 See above $246.00 AUD
GHFC300CU-SA Formvar on carbon film coated grids, hex mesh Copper 300 mesh, A Pack/50 See above $159.00 AUD
GHFC300CU-SA25 Formvar on carbon film coated grids, hex mesh Copper 300 mesh, A Pack/25 See above $97.00 AUD
GHFC300CU-SB Formvar on carbon film coated grids, hex mesh Copper 300 mesh, B Pack/50 See above $163.00 AUD
GHFC300CU-SC Formvar on carbon film coated grids, hex mesh Copper 300 mesh, C Pack/50 See above $163.00 AUD
GHFC300NI-SA Formvar on carbon film coated grids, hex mesh Nickel 300 mesh, A Pack/50 See above $171.00 AUD
GHFC300NI-SA25 Formvar on carbon film coated grids, hex mesh Nickel 300 mesh, A Pack/25 See above $111.00 AUD
GHFC300NI-SB Formvar on carbon film coated grids, hex mesh Nickel 300 mesh, B Pack/50 See above $178.00 AUD
GHFC300NI-SC Formvar on carbon film coated grids, hex mesh Nickel 300 mesh, C Pack/50 See above $178.00 AUD
GHFC400AU-SA Formvar on carbon film coated grids, hex mesh Gold 400 mesh, A Pack/50 See above $246.00 AUD
GHFC400AU-SA25 Formvar on carbon film coated grids, hex mesh Gold 400 mesh, A Pack/25 See above $145.00 AUD
GHFC400AU-SB Formvar on carbon film coated grids, hex mesh Gold 400 mesh, B Pack/50 See above $246.00 AUD
GHFC400AU-SC Formvar on carbon film coated grids, hex mesh Gold 400 mesh, C Pack/50 See above $246.00 AUD
GHFC400CU-SA Formvar on carbon film coated grids, hex mesh Copper 400 mesh, A Pack/50 See above $165.00 AUD
GHFC400CU-SA25 Formvar on carbon film coated grids, hex mesh Copper 400 mesh, A Pack/25 See above $97.00 AUD
GHFC400CU-SB Formvar on carbon film coated grids, hex mesh Copper 400 mesh, B Pack/50 See above $169.00 AUD
GHFC400CU-SC Formvar on carbon film coated grids, hex mesh Copper 400 mesh, C Pack/50 See above $169.00 AUD
GHFC400NI-SA Formvar on carbon film coated grids, hex mesh Nickel 400 mesh, A Pack/50 See above $171.00 AUD
GHFC400NI-SA25 Formvar on carbon film coated grids, hex mesh Nickel 400 mesh, A Pack/25 See above $111.00 AUD
GHFC400NI-SB Formvar on carbon film coated grids, hex mesh Nickel 400 mesh, B Pack/50 See above $178.00 AUD
GHFC400NI-SC Formvar on carbon film coated grids, hex mesh Nickel 400 mesh, C Pack/50 See above $178.00 AUD
