EMS formvar on carbon coated grids, single hole
Support Film on grids has become a main product line for us since the demand for high quality coated grids has increased. To make your microscopy work easier and to save you a great deal of time we offer you a complete line. All of our coated grids are optically checked followed by batch testing in the EM. Packed in grid storage box. All the grids below (except for the Beryllium Support Films) are also available with the following options:
- Molybdenum grids in place of Au, Cu, or Ni
- As Silicone free
- With ultra-thin thickness (thickness can be requested)
- Extra thick thickness
NOTE: All of our film is laid on the shiny side of the grid.

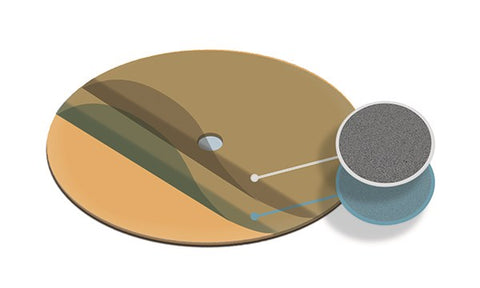

A formvar coated grid, stabilised with evaporated carbon film. This type of coating is excellent for specimen support, especially for ultra thin sections. The thickness range is as follows:
Standard Option A (SA): 10nm Formvar and 1nm Carbon
Standard Option B (SB): 10nm Formvar and 3-4nm Carbon
Standard Option C (SC): 10nm Formvar and 20-30nm Carbon
Ultra-Thin Option A (UA): 5-6nm Formvar and 1nm Carbon
Ultra-Thin Option B (UB): 5-6nm Formvar and 3-4nm Carbon
Ultra-Thin Option C (UC): 5-6nm Formvar and 20-30nm Carbon
Thick Option A (TA): 15-20nm Formvar and 1nm Carbon
Thick Option B (TB): 15-20nm Formvar and 3-4nm Carbon
Thick Option C (TC): 15-20nm Formvar and 20-30nm Carbon
Extra Thick Option A (EA): 25-50nm Formvar and 1nm Carbon
Extra Thick Option B (EB): 25-50nm Formvar and 3-4nm Carbon
Extra Thick Option C (EC): 25-50nm Formvar and 20-30nm Carbon
| Code | Mesh size | Grid material | Pack Size | Availability | Price | Updated: 24-09-2026 |
|---|---|---|---|---|---|---|
| EMSFCFGA1500-CU-SB | Copper | 1500 mesh, B | Pack/50 | No ETA | $242.00 AUD | |
| EMSFCFGA1500-NI-SC | Nickel | 1500 mesh, C | Pack/50 | No ETA | $247.00 AUD | |
| GSHFC75CU-SA | Copper | 75 mesh, A | Pack/50 | No ETA | $242.00 AUD | |
| GSHFC100CU-SA25 | Copper | 100 mesh, A | Pack/25 | No ETA | $140.00 AUD | |
| GSHFC100CU-SA | Copper | 100 mesh, A | Pack/50 | No ETA | $242.00 AUD | |
| GSHFC100NI-SA | Nickel | 100 mesh, A | Pack/50 | No ETA | $243.00 AUD | |
| GSHFC200CU-SA | Copper | 200 mesh, A | Pack/50 | No ETA | $242.00 AUD | |
| GSHFC200NI-SA25 | Nickel | 200 mesh, A | Pack/25 | No ETA | $143.00 AUD | |
| GSHFC200NI-SA | Nickel | 200 mesh, A | Pack/50 | No ETA | $243.00 AUD | |
| GSHFC300NI-SA | Nickel | 300 mesh, A | Pack/50 | No ETA | $243.00 AUD | |
| GSHFC400CU-SA | Copper | 400 mesh, A | Pack/50 | No ETA | $242.00 AUD | |
| GSHFC600CU-SA | Copper | 600 mesh, A | Pack/50 | No ETA | $242.00 AUD | |
| GSHFC600NI-SA25 | Nickel | 600 mesh, A | Pack/25 | No ETA | $143.00 AUD | |
| GSHFC600NI-SA | Nickel | 600 mesh, A | Pack/50 | No ETA | $243.00 AUD | |
| GSHFC800CU-SA | Copper | 800 mesh, A | Pack/50 | No ETA | $242.00 AUD | |
| GSHFC800NI-SA | Nickel | 800 mesh, A | Pack/50 | No ETA | $243.00 AUD | |
| GSHFC1000CU-SA25 | Copper | 1000 mesh, A | Pack/25 | No ETA | $140.00 AUD | |
| GSHFC1000CU-SA | Copper | 1000 mesh, A | Pack/50 | No ETA | $242.00 AUD | |
| GSHFC1000NI-SA | Nickel | 1000 mesh, A | Pack/50 | No ETA | $243.00 AUD | |
| GSHFC1500CU-SA25 | Copper | 1500 mesh, A | Pack/25 | No ETA | $140.00 AUD | |
| GSHFC1500CU-SA | Copper | 1500 mesh, A | Pack/50 | No ETA | $242.00 AUD | |
| GSHFC1500NI-SA | Nickel | 1500 mesh, A | Pack/50 | No ETA | $247.00 AUD |
* Availability Explanation
X weeks – the estimated lead time, based on the average time taken previously to fill orders from this particular supplier. Lead times are from when we receive your order until when we fill your order. For delivery times, please see shipping information below.
In Stock – Plenty of stock on the shelf, ready to ship.
No ETA – our supplier has advised they cannot provide an accurate ETA. Generally there is some issue with supply, and it may be more than 6 months.
