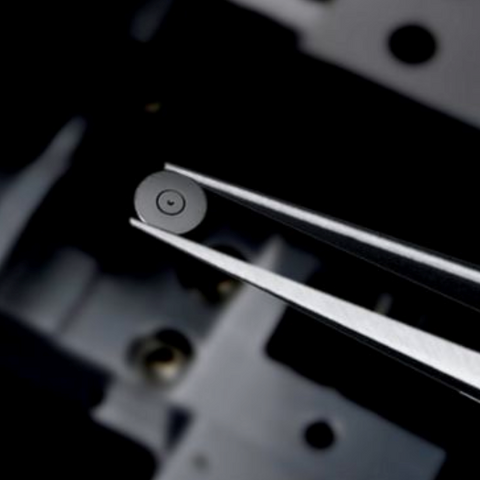

Disc apertures, Platinum

Apertures are easily cleaned by either an aperture flamer or over a bunsen burner in the open air. A wide variety of Platinum Drilled Apertures are available with different configurations suiting all of your needs.

Apertures size tolerances vary as follow:

  • Nominal hole diameter: +/- 1 micron
  • Disc diameter: +/- 10 microns
  • Disc thickness: +/- 10 microns

Size and Applications:

  • 2mm dia. x 0.24mm thick: Phillips, Cameca
  • 2mm dia. x 0.53mm thick: Cambridge, Siemens, JEOL, Cameca
  • 3mm dia. x 0.12mm thick: Zeiss, Nanolab, Novascan
  • 3mm dia. x 0.24mm thick: Philips, ARM, AEI, Cambridge
  • 4mm dia. x 0.165mm thick: ISI
  • 6mm dia. x .24mm thick: JEOL
  • 6.35mm dia. x 0.06mm thick: ETEC
  • 6.35mm dia. x 0.14mm thick: ETEC Spray Aperture
  • 12.7mm dia. x 0.25mm thick: Cambridge, Camscan Spray Aperture
Code Title Aperture Size Pack Size Availability Price Updated: 01-03-2024
EMS42005-PT Disc apertures, Platinum 5um 2mm dia. x 0.53mm Each 2 weeks $620.00 AUD
EMS42010-PT Disc apertures, Platinum 10um 2mm dia. x 0.53mm Each 2 weeks $379.00 AUD
EMS42015-PT Disc apertures, Platinum 15um 2mm dia. x 0.53mm Each 2 weeks $208.00 AUD
EMS42020-PT Disc apertures, Platinum 20um 2mm dia. x 0.53mm Each 2 weeks $214.00 AUD
EMS42030-PT Disc apertures, Platinum 30um 2mm dia. x 0.53mm Each 2 weeks $200.00 AUD
EMS42040-PT Disc apertures, Platinum 40um 2mm dia. x 0.53mm Each 2 weeks $182.00 AUD
EMS42050-PT Disc apertures, Platinum 50um 2mm dia. x 0.53mm Each 2 weeks $180.00 AUD
EMS42070-PT Disc apertures, Platinum 70um 2mm dia. x 0.53mm Each 2 weeks $180.00 AUD
EMS42100-PT Disc apertures, Platinum 100um 2mm dia. x 0.53mm Each 2 weeks $178.00 AUD
EMS43010-PT Disc apertures, Platinum 10um 3mm dia. x 0.12mm Each 2 weeks $329.00 AUD
EMS43020-PT Disc apertures, Platinum 20um 3mm dia. x 0.12mm Each 2 weeks $222.00 AUD
EMS43030-PT Disc apertures, Platinum 30um 3mm dia. x 0.12mm Each 2 weeks $214.00 AUD
EMS43050-PT Disc apertures, Platinum 50um 3mm dia. x 0.12mm Each 2 weeks $206.00 AUD
EMS43060-PT Disc apertures, Platinum 60um 3mm dia. x 0.12mm Each 2 weeks $206.00 AUD
EMS43070-PT Disc apertures, Platinum 70um 3mm dia. x 0.12mm Each 2 weeks $206.00 AUD
EMS43100-PT Disc apertures, Platinum 100um 3mm dia. x 0.12mm Each 2 weeks $206.00 AUD
EMS43150-PT Disc apertures, Platinum 150um 3mm dia. x 0.12mm Each 2 weeks $202.00 AUD
EMS43200-PT Disc apertures, Platinum 200um 3mm dia. x 0.12mm Each 2 weeks $202.00 AUD
EMS43300-PT Disc apertures, Platinum 300um 3mm dia. x 0.12mm Each 2 weeks $202.00 AUD
EMS40010-PT Disc apertures, Platinum 10um 2mm dia. x 0.24mm Each 2 weeks $379.00 AUD
EMS44005-PT Disc apertures, Platinum 5um 3mm dia. x 0.24mm Each 2 weeks $673.00 AUD
EMS45010-PT Disc apertures, Platinum 10um 4mm dia. x 0.165mm Each 2 weeks $331.00 AUD
EMS46010-PT Disc apertures, Platinum 10um 6mm dia. x 0.24mm Each 2 weeks $673.00 AUD
EMS47030-PT Disc apertures, Platinum 30um 6.35mm dia. x 0.06mm Each 2 weeks $228.00 AUD
EMS40020-PT Disc apertures, Platinum 20um 2mm dia. x 0.24mm Each 2 weeks $173.00 AUD
EMS44010-PT Disc apertures, Platinum 10um 3mm dia. x 0.24mm Each 2 weeks $528.00 AUD
EMS46020-PT Disc apertures, Platinum 20um 6mm dia. x 0.24mm Each 2 weeks $386.00 AUD
EMS47050-PT Disc apertures, Platinum 50um 6.35mm dia. x 0.06mm Each 2 weeks $228.00 AUD
EMS40030-PT Disc apertures, Platinum 30um 2mm dia. x 0.24mm Each 2 weeks $161.00 AUD
EMS44015-PT Disc apertures, Platinum 15um 3mm dia. x 0.24mm Each 2 weeks $224.00 AUD
EMS45020-PT Disc apertures, Platinum 20um 4mm dia. x 0.165mm Each 2 weeks $257.00 AUD
EMS46030-PT Disc apertures, Platinum 30um 6mm dia. x 0.24mm Each 2 weeks $333.00 AUD
EMS47100-PT Disc apertures, Platinum 100um 6.35mm dia. x 0.06mm Each 2 weeks $228.00 AUD
EMS40050-PT Disc apertures, Platinum 50um 2mm dia. x 0.24mm Each 2 weeks $180.00 AUD
EMS44020-PT Disc apertures, Platinum 20um 3mm dia. x 0.24mm Each 2 weeks $202.00 AUD
EMS45030-PT Disc apertures, Platinum 30um 4mm dia. x 0.165mm Each 2 weeks $224.00 AUD
EMS46050-PT Disc apertures, Platinum 50um 6mm dia. x 0.24mm Each 2 weeks $312.00 AUD
EMS47150-PT Disc apertures, Platinum 150um 6.35mm dia. x 0.06mm Each 2 weeks $228.00 AUD
EMS40100-PT Disc apertures, Platinum 100um 2mm dia. x 0.24mm Each 2 weeks $176.00 AUD
EMS44025-PT Disc apertures, Platinum 25um 3mm dia. x 0.24mm Each 2 weeks $196.00 AUD
EMS45050-PT Disc apertures, Platinum 50um 4mm dia. x 0.165mm Each 2 weeks $206.00 AUD
EMS46100-PT Disc apertures, Platinum 100um 6mm dia. x 0.24mm Each 2 weeks $312.00 AUD
EMS47200-PT Disc apertures, Platinum 200um 6.35mm dia. x 0.06mm Each 2 weeks $228.00 AUD
EMS40150-PT Disc apertures, Platinum 150um 2mm dia. x 0.24mm Each 2 weeks $184.00 AUD
EMS44030-PT Disc apertures, Platinum 30um 3mm dia. x 0.24mm Each 2 weeks $198.00 AUD
EMS45070-PT Disc apertures, Platinum 70um 4mm dia. x 0.165mm Each 2 weeks $206.00 AUD
EMS44040-PT Disc apertures, Platinum 40um 3mm dia. x 0.24mm Each 2 weeks $186.00 AUD
EMS45100-PT Disc apertures, Platinum 100um 4mm dia. x 0.165mm Each 2 weeks $184.00 AUD
EMS44050-PT Disc apertures, Platinum 50um 3mm dia. x 0.24mm Each 2 weeks $180.00 AUD
EMS44060-PT Disc apertures, Platinum 60um 3mm dia. x 0.24mm Each 2 weeks $180.00 AUD
EMS44070-PT Disc apertures, Platinum 70um 3mm dia. x 0.24mm Each 2 weeks $180.00 AUD
EMS44100-PT Disc apertures, Platinum 100um 3mm dia. x 0.24mm Each 2 weeks $178.00 AUD
EMS44150-PT Disc apertures, Platinum 150um 3mm dia. x 0.24mm Each 2 weeks $178.00 AUD
EMS44200-PT Disc apertures, Platinum 200um 3mm dia. x 0.24mm Each 2 weeks $178.00 AUD
EMS44300-PT Disc apertures, Platinum 300um 3mm dia. x 0.24mm Each 2 weeks $178.00 AUD
EMS44400-PT Disc apertures, Platinum 400um 3mm dia. x 0.24mm Each 2 weeks $178.00 AUD
EMS44400-PT-SPECIAL Disc apertures, Platinum 500um 3mm dia. x 0.24mm Each 2 weeks $162.00 AUD
