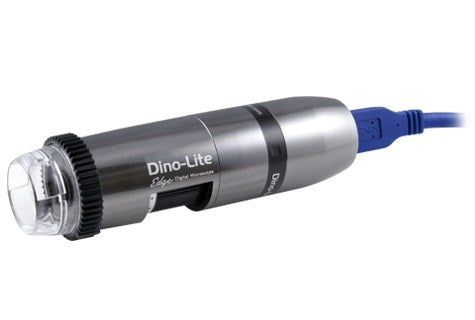

Dino-Lite Edge long working distance USB3.0 digital microscope

Dino-Lite Edge 3.0 AM73915MZTL is an all-in-one digital longer working distance microscope with a plethora of features such as EDOF/EDR, DPQ, AMR, FLC, and smooth live imaging with a resolution of 5MP at 15 FPS or 1.3MP at 45 FPS. It offers uncompressed viewing to deliver exceptional sharpness, improved colour accuracy and image quality with a magnification range of 10x - 140x. This model is capable of providing 45FPS at 1280 x 960 resolution, allowing use in a wide range of difficult applications.Automatic Magnification Reading (AMR) and Extended Depth of Field (available on Windows) are included. EDOF lets users automatically capture multiple images and different depths, and automatically combine them into one clear image.Along with the built-on polariser, interchangeable front caps, and rugged metal housing, this model features flexible LED Control (FLC) that enables partial illumination control options to enhance edge contrast and provide intensity adjustment fo...

Dino-Lite Edge 3.0 AM73915MZTL is an all-in-one digital longer working distance microscope with a plethora of features such as EDOF/EDR, DPQ, AMR, FLC, and smooth live imaging with a resolution of 5MP at 15 FPS or 1.3MP at 45 FPS. It offers uncompressed viewing to deliver exceptional sharpness, improved colour accuracy and image quality with a magnification range of 10x - 140x. This model is capable of providing 45FPS at 1280 x 960 resolution, allowing use in a wide range of difficult applications.

Automatic Magnification Reading (AMR) and Extended Depth of Field (available on Windows) are included. EDOF lets users automatically capture multiple images and different depths, and automatically combine them into one clear image.

Along with the built-on polariser, interchangeable front caps, and rugged metal housing, this model features flexible LED Control (FLC) that enables partial illumination control options to enhance edge contrast and provide intensity adjustment for more versatility.

Note:
EDOF, EDR, and DPQ are available on Windows PC only.
DPQ is available for the AM73915MZT(R10) and AM73915MZTL(R10A) only.

Specifications:

Information about working distance and field of view:

M WD FOV (x) FOV (y) DOF
10 234.5 39.0 29.2 12.0
20 112.5 19.5 14.6 4.5
30 72.5 13.0 9.7 3.1
40 54.5 9.8 7.3 1.8
50 43.5 7.8 5.8 1.2
60 37.5 6.5 4.8 0.9
70 33.7 5.6 4.2 0.6
80 31.3 4.9 3.6 0.5
90 29.9 4.3 3.2 0.37
100 29.2 3.9 2.9 0.28
110 29.1 3.5 2.6 0.22
120 29.3 3.3 2.4 0.17
130 29.8 3.0 2.2 0.12
140 30.5 2.8 2.1 0.09

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm

Code Title Magnification Resolution Pack Size Availability Price Updated: 30-05-2024
OSAM73915MZTL Dino-Lite Edge long working distance USB3.0 digital microscope 10x ~ 140x 5 MP Each See above Quote only Quote
