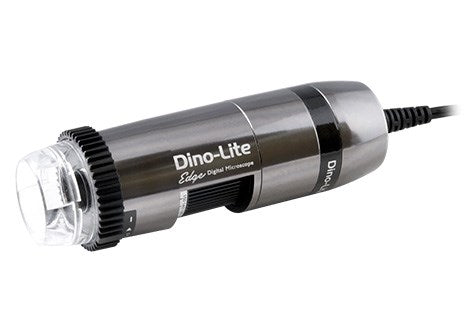

Dino-Lite Edge long working distance digital microscope

Dedicated to provide ample space for working under, the AM7115MZTL, a Long-Working-Distance(LWD) version of Dino-Lite 5MP Edge series, delivers superior image at 10x-140x magnification with greatest illumination flexibility. The AM7115MZTL is able to provide long working distance with fluent and crisp live image through the use of cutting-edge optics, advanced 5MP sensor, and low-loss MJPEG compression. The innovative Flexible LED Control (FLC) enables partial illumination to enhance edge contrast and provides intensity adjustability for better adaptability. Together with adjustable polariser, interchangeable front caps, rugged metal housing, the AM7115MZTL is made to be the tool of choice for wide range of applications.Specifications:ModelAM7115MZTL Dino-Lite Edge

Dedicated to provide ample space for working under, the AM7115MZTL, a Long-Working-Distance(LWD) version of Dino-Lite 5MP Edge series, delivers superior image at 10x-140x magnification with greatest illumination flexibility. The AM7115MZTL is able to provide long working distance with fluent and crisp live image through the use of cutting-edge optics, advanced 5MP sensor, and low-loss MJPEG compression.

The innovative Flexible LED Control (FLC) enables partial illumination to enhance edge contrast and provides intensity adjustability for better adaptability. Together with adjustable polariser, interchangeable front caps, rugged metal housing, the AM7115MZTL is made to be the tool of choice for wide range of applications.

Specifications:

Model AM7115MZTL Dino-Lite Edge
Interface USB 2.0
Product Resolution 5M pixels (2592 x 1944)
Magnification 10x~140x
Frame Rate 10fps in 5MP/3MP/2MP, MJPEG
25fps in 1.3MP, MJPEG
30fps in VGA, MJPEG
Saving Format Image:
DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEG

Video:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Lighting 8 white LEDs
Polarizer Yes
Microtouch Yes
Operating System Supported Windows XP/7/8/10/11
macOS 10.14 or later
System Requirements - Intel Core2 Duo @ 2.20 GHz/AMD Athlon X2 Dual Core BE-2400 (2.3GHz)
- 20GB available HD space
- 2GB available RAM or more
- 512MB video card or more
- CD-ROM drive for installation
- USB 2.0
Calibration Function Yes
Measurement Function Yes
Unit Dimension 10.5cm (H) x 3.2cm (D)
Unit Weight 135g

Information about working distance and field of view:

M WD FOV (x) FOV (y) DOF
10 234.5 39.0 29.2 12.0
20 112.5 19.5 14.6 4.5
30 72.5 13.0 9.7 3.1
40 54.5 9.8 7.3 1.8
50 43.5 7.8 5.8 1.2
60 37.5 6.5 4.8 0.9
70 33.7 5.6 4.2 0.6
80 31.3 4.9 3.6 0.5
90 29.9 4.3 3.2 0.37
100 29.2 3.9 2.9 0.28
110 29.1 3.5 2.6 0.22
120 29.3 3.3 2.4 0.17
130 29.8 3.0 2.2 0.12
140 30.5 2.8 2.1 0.09

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm

Code Title Magnification Resolution Pack Size Availability Price Updated: 25-05-2024
OSAM7115MZTL Dino-Lite Edge long working distance digital microscope 10x~140x 5 MP Each See above $1,740.00 AUD
