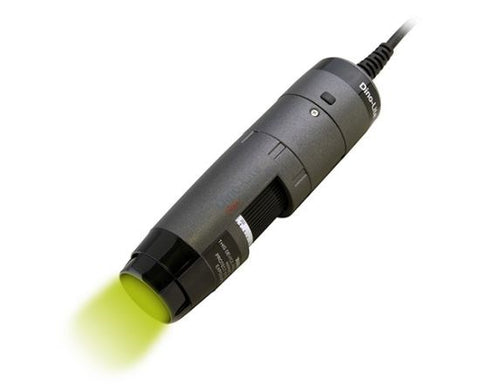

Dino-Lite Edge green and red fluorescence digital microscope

This Dino-Lite Edge digital microscope model was designed for applications in which GFP and MCherry are used in the same specimen, so that no switching of microscopes and/or lighting and filters is necessary. Use 465nm light to view green fluorescence or switch to 580nm excitation lights to view red fluorescence signals with AM4115T-GRFBY digital microscope.It is optimised for research and viewing objects involving fluorescent objects using 2 different sets of LEDs, 4 Blue LEDs at an excitation of 480nm, and 4 Yellow LEDs at an excitation of 575nm, which are switchable through the software, and emission at 510nm/610nm.Green fluorescent objects pop out under this handheld microscope and you can clearly see its green glow.It will magnify up to 220x magnification, depending on working distance.Specifications:Model<...

This Dino-Lite Edge digital microscope model was designed for applications in which GFP and MCherry are used in the same specimen, so that no switching of microscopes and/or lighting and filters is necessary. Use 465nm light to view green fluorescence or switch to 580nm excitation lights to view red fluorescence signals with AM4115T-GRFBY digital microscope.

It is optimised for research and viewing objects involving fluorescent objects using 2 different sets of LEDs, 4 Blue LEDs at an excitation of 480nm, and 4 Yellow LEDs at an excitation of 575nm, which are switchable through the software, and emission at 510nm/610nm.

Green fluorescent objects pop out under this handheld microscope and you can clearly see its green glow.

It will magnify up to 220x magnification, depending on working distance.

Specifications:

Model AM4115T-GRFBY Dino-Lite Edge
Interface USB 2.0
Product Resolution 1.3M pixels (SXGA)
Magnification Rate 20x~220x
Sensor Colour CMOS
Frame Rate Up to 30fps
Save Formats Image:
DinoCapture2.0: BMP, GIF, PNG, MNG, TIF, TGA, PCX, WBMP, JP2, JPC, JPG, PGX, RAS, PNM
DinoXcope: PNG, JPEG

Movie:
DinoCapture2.0: WMV, FLV, SWF
DinoXcope: MOV
Microtouch Touch sensitive trigger on the microscope for taking pictures
Lighting 4 blue LEDs and 4 yellow LEDs
Measurement Function Yes
Calibration Function Yes
Operating System Supported Windows XP/7/8/10/11
macOS 10.14 or later
Unit Weight 100g
Unit Dimension 10.5cm (H) x 3.2cm (D)
Package Dimensions 16cm (L) x 16cm (W) x 6cm (H)

Information about working distance and field of view:

M WD FOV (x) FOV (y) DOF
20 60.2 19.5 15.6 2.5
30 33.5 13 10.4 1.8
40 20.9 9.8 7.8 1.5
50 13.9 7.8 6.3
60 9.7 6.5 5.2
70 7.1 5.6 4.5 1.0
80 5.5 4.9 3.9
90 4.5 4.3 3.5
100 4.1 3.9 3.1
110 4 3.6 2.8
120 4.1 3.3 2.6
130 4.5 3 2.4
140 5 2.8 2.2
150 5.6 2.6 2.1
160 6.3 2.4 2
170 7.1 2.3 1.8
180 8 2.2 1.7
190 8.9 2.1 1.6
200 9.9 2 1.6
210 10.9 1.9 1.5
220 11.9 1.8 1.4 0.1

M = magnification rate      WD = working distance (without front cap)      FOV = field of view      DOF= depth of field      Unit = mm

Code Title Magnification Resolution Pack Size Availability Price Updated: 29-05-2024
OSAM4115T-GRFBY Dino-Lite Edge green and red fluorescence digital microscope 20x~220x 1.3 MP Each See above $1,555.00 AUD
