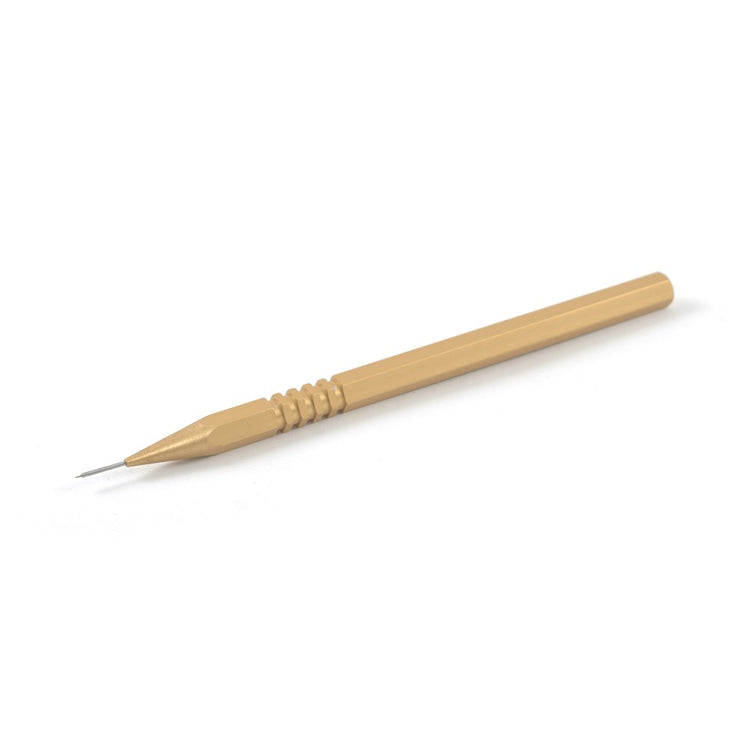

Diamond scribe, high precision fine point

This diamond scriber is the ultimate scribing instrument offering the most precision for the most delicate applications. It is available in straight or bent configurations.

Applications Include:

  • Fine scribing under the microscope - for silicon wafers and glass coverslips
  • Precision scribing and repairing - for thin film circuits and microcircuits, etc.

These diamond mountings are 0.8mm diameter with a reduced shank size of 0.5mm or 0.25mm diameter, which holds the diamond stylus. The natural diamond has a 60?included angle and a 0.12mm tip radius. The integrated 6.35mm anodized hexagonal (non-rolling) aluminum handle has a positive finger grip in the form of grooves for easy control and nonslippage. Each diamond scriber is packaged in a protective plastic tube.

Code Title Size Style Pack Size Availability Price Updated: 23-04-2024
EMS62107-ST Diamond scribe, high precision fine point 0.5mm Straight Each 2 in stock $83.00 AUD
EMS62107-BT Diamond scribe, high precision fine point 0.5mm Bent Each See above $85.00 AUD
EMS62108-ST Diamond scribe, high precision fine point 0.25mm Straight Each See above $109.00 AUD
EMS62108-BT Diamond scribe, high precision fine point 0.25mm Bent Each See above $116.00 AUD
