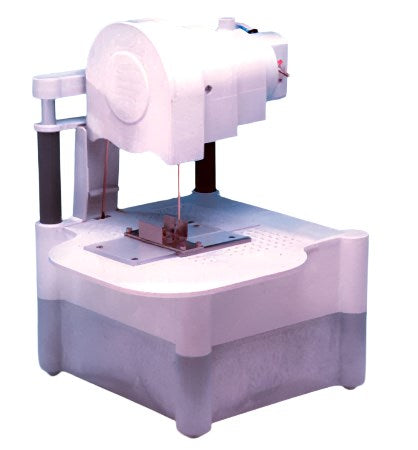

Diamond band saw, model 865

Constructed from a high impact polymer, the lightweight Model 865 Diamond Band Saw is designed for medium precision, with efficient cutting of hard and brittle materials. However, the saw is rugged enough to cut through materials such as soft metals and polymers as well. Samples can be safely hand fed into the blade with or without the standard specimen guide. The diamond plated steel core blades are designed to last long under normal conditions. Easy blade access and replacement make occasional saw maintenance extremely simple. Coolant is contained in a reservoir at the base of the saw.Replacement parts available.Features:Small, lab bench size.Quick adjustable blade guide keeps the blade tracking properly.Rugged, corrosion-proof construction.Powerful motor cuts fast, won't bog down under load.Minimum coolant splash for clean cutting.Easy access coolant tray for fast and easy clean up.

Constructed from a high impact polymer, the lightweight Model 865 Diamond Band Saw is designed for medium precision, with efficient cutting of hard and brittle materials. However, the saw is rugged enough to cut through materials such as soft metals and polymers as well. Samples can be safely hand fed into the blade with or without the standard specimen guide. The diamond plated steel core blades are designed to last long under normal conditions. Easy blade access and replacement make occasional saw maintenance extremely simple. Coolant is contained in a reservoir at the base of the saw.

Replacement parts available.

Features:

  • Small, lab bench size.
  • Quick adjustable blade guide keeps the blade tracking properly.
  • Rugged, corrosion-proof construction.
  • Powerful motor cuts fast, won't bog down under load.
  • Minimum coolant splash for clean cutting.
  • Easy access coolant tray for fast and easy clean up.
  • Large table for cutting bulk samples.
  • Sample guide for straight, flat surfaces.
  • Economically priced.

Specifications:

Dimension: 305mm W x 356mm D x 457mm H
Weight: 6.8kg
Maximum Sample Diameter 82.55mm
Cutting Table Dimensions: 305mm W x 330mm D
Standard Blade Thickness: 0.6mm
Electrical: 115VAC 50/60Hz

Model865 product brochure

Updated: 11-02-2025
Code Title Type Pack Size Availability Price Updated: 11-02-2025
EMS50182-01 Diamond band saw, model 865 Saw blade Each No ETA P.O.R. Quote
EMS50182-05 Diamond band saw, model 865 Top friction belt Each No ETA P.O.R. Quote
EMS50182-06 Diamond band saw, model 865 Bottom friction belt Each No ETA P.O.R. Quote
EMS50182-08 Diamond band saw, model 865 Blade guide Each No ETA P.O.R. Quote
EMS50182-10 Diamond band saw, model 865 Lower adjustment screw Each No ETA P.O.R. Quote
EMS50182-11 Diamond band saw, model 865 Locking nut Each No ETA P.O.R. Quote
EMS50182-14 Diamond band saw, model 865 Plastic arm Each No ETA P.O.R. Quote
EMS50182-15 Diamond band saw, model 865 Lower shaft assembly Each No ETA P.O.R. Quote
EMS50182-16 Diamond band saw, model 865 Lower drive wheel Each No ETA P.O.R. Quote
EMS50182-17 Diamond band saw, model 865 Upper drive wheel Each No ETA P.O.R. Quote
EMS50182-18 Diamond band saw, model 865 Bushing assembly Each No ETA P.O.R. Quote
EMS50182-65 Diamond band saw, model 865 Model 865 band saw, 115V Each No ETA P.O.R. Quote
