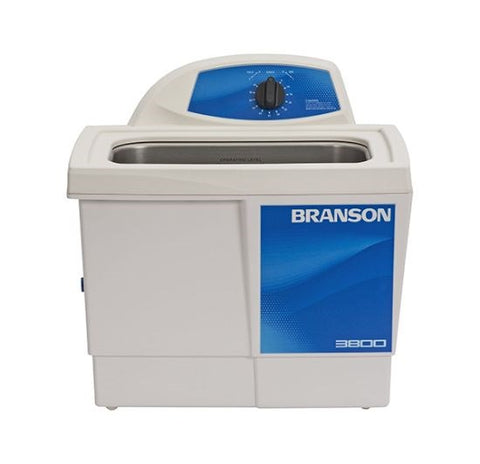

Branson ultrasonic baths, Model 3800

Branson's ultrasonic bath innovations include a signature elevated control panel, positioned above and behind the bath to avoid damage and increase operator safety. With a unique sweep frequency technology to eliminate standing waves, and a pioneering 40 kHz industrial transducers, Bransonic ultrasonic baths have been the industry standard for quality, reliability, and precision cleaning.Features:Constant activity/power tracking automatically maintains the same ultrasonic power by adjusting for changes in liquid level and temperature caused by a light or heavy load. This helps ensure more uniform cleaning and consistent performance, even with multiple users or when bath conditions change.Assures uniform, precision cleaning over the entire surface, and consistent cavitation that reaches and cleans even tiny crevices on the parts.High/low power control adjusts the acoustic energy in the ba...

Branson's ultrasonic bath innovations include a signature elevated control panel, positioned above and behind the bath to avoid damage and increase operator safety. With a unique sweep frequency technology to eliminate standing waves, and a pioneering 40 kHz industrial transducers, Bransonic ultrasonic baths have been the industry standard for quality, reliability, and precision cleaning.

Features:

  • Constant activity/power tracking automatically maintains the same ultrasonic power by adjusting for changes in liquid level and temperature caused by a light or heavy load. This helps ensure more uniform cleaning and consistent performance, even with multiple users or when bath conditions change.
  • Assures uniform, precision cleaning over the entire surface, and consistent cavitation that reaches and cleans even tiny crevices on the parts.
  • High/low power control adjusts the acoustic energy in the bath. It can be set at 100% power for normal to heavier loads, or at 70% power for lighter and more delicate applications, helping to protect delicate components from potential damage.
  • Temperature settings are available up to 69°C/156.2°F, which can be set in either Celsius or Fahrenheit and programmed through the front panel for easy access and monitoring. This also allows for convenient re-calibration when needed on-site.
  • High-temperature visual alarm/auto shut-off for added safety.
  • Sleep mode provides energy savings automatically by shutting off unit if control keys are not touched within 15 minutes of cycle end. To restart, press any key.
  • Degassing and conditioning of solutions through advanced wave modulation of up to 99 minutes also allow for a variety of sample prep applications.

Mechanical Ultrasonic Baths - MT/MTH

The Bransonic MT Series includes two simple-to-use models: the M and MTH Series. Both series are designed for basic yet effective cleaning, with set-it-and-forget-it mechanical timers, which can be set up to 60 minutes or run continuously. MTH Series units also offer a heating option. Both series are excellent for use in a variety of applications.

Standard power requirements for all of our ultrasonic units are 120V, 50/60Hz. All units are available in 230/240 volt, 50/60Hz.

All of our units come with a tank cover. Available accessories shown in the image to the right are the solid tray, perforated tray, mesh basket, and beaker cover. Also available is a support rack that is placed on the bottom of the cleaner.

Digital Ultrasonic Baths - DTH

Specifications:

Tank size (L x W x D) 290mm x 150mm x 150mm
Overall size (L x W x D) 397mm x 317mm x 377mm
Weight: 5.4 kg
Frequency: 40kHz
Tank Capacity: 5.7L
Drain: Yes
Code Title Model Voltage Pack Size Availability Price Updated: 24-02-2024
EMS71030-DTH Branson ultrasonic baths, Model 3800 3800-DTH 120V Each 2 weeks Quote only Quote
Quote
EMS71030-DTH-E Branson ultrasonic baths, Model 3800 3800-DTH 220V Each 2 weeks Quote only Quote
Quote
EMS71030-MT Branson ultrasonic baths, Model 3800 3800-MT 120V Each 2 weeks Quote only Quote
Quote
EMS71030-MT-E Branson ultrasonic baths, Model 3800 3800-MT 220V Each 2 weeks Quote only Quote
Quote
EMS71030-MTH Branson ultrasonic baths, Model 3800 3800-MTH 120V Each 2 weeks Quote only Quote
Quote
EMS71030-MTH-E Branson ultrasonic baths, Model 3800 3800-MTH 220V Each 2 weeks Quote only Quote
Quote
