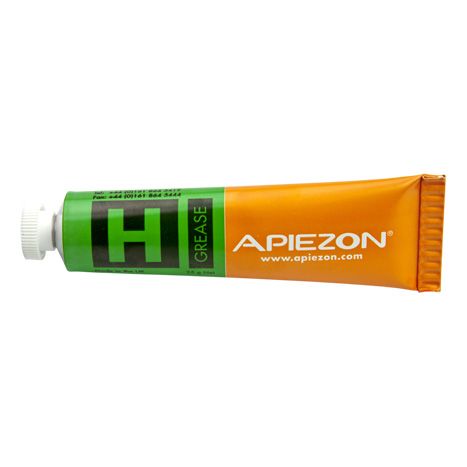

Apiezon H vacuum grease (EMS)

Apiezon H high temperature vacuum grease is a relatively stiff grease which does not melt; rather, it becomes stiffer as temperature is increased. It is also a very tenacious grease with excellent cohesive strength. "Stiction" power makes this grease ideal for use with laboratory glassware and because of its excellent thermal conductivity it is also the perfect choice for the electronics industry where heat sink media require adhesion. Suitable for applications ranging in temperature from -10 to 240?C. Optimum consistency is between 10 and 110?C. It is specifically recommended for sealing, including medium to high vacua - depending on temperature, and lubrication, but it is not suitable for highly stressed bearings.

Features:

• High temperatures
• Thermally conducting
• Good "stiction"
• Low to medium vacuum range
• Silicone free
• Easily removed

Comparison Data for Apiezon Greases

Properties:

• Typical working temperature range:  -10 to 240?C
• Dropping point - ASTM.D 566 does not melt
• Vapour pressure @ 20?C:  1.7 x 10^-9Torr
• Relative density @ 20?C: 0.918
• Thermal conductivity @ 20?C: 0.216W/m?C
• Specific heat @ 25?C: 1.7J/g
• Lubricity 4 Ball Test - ASTM .D 2596: 250kg

Safety Data Sheet

Apiezon H Technical Data

NOTE: Formerly called M013
